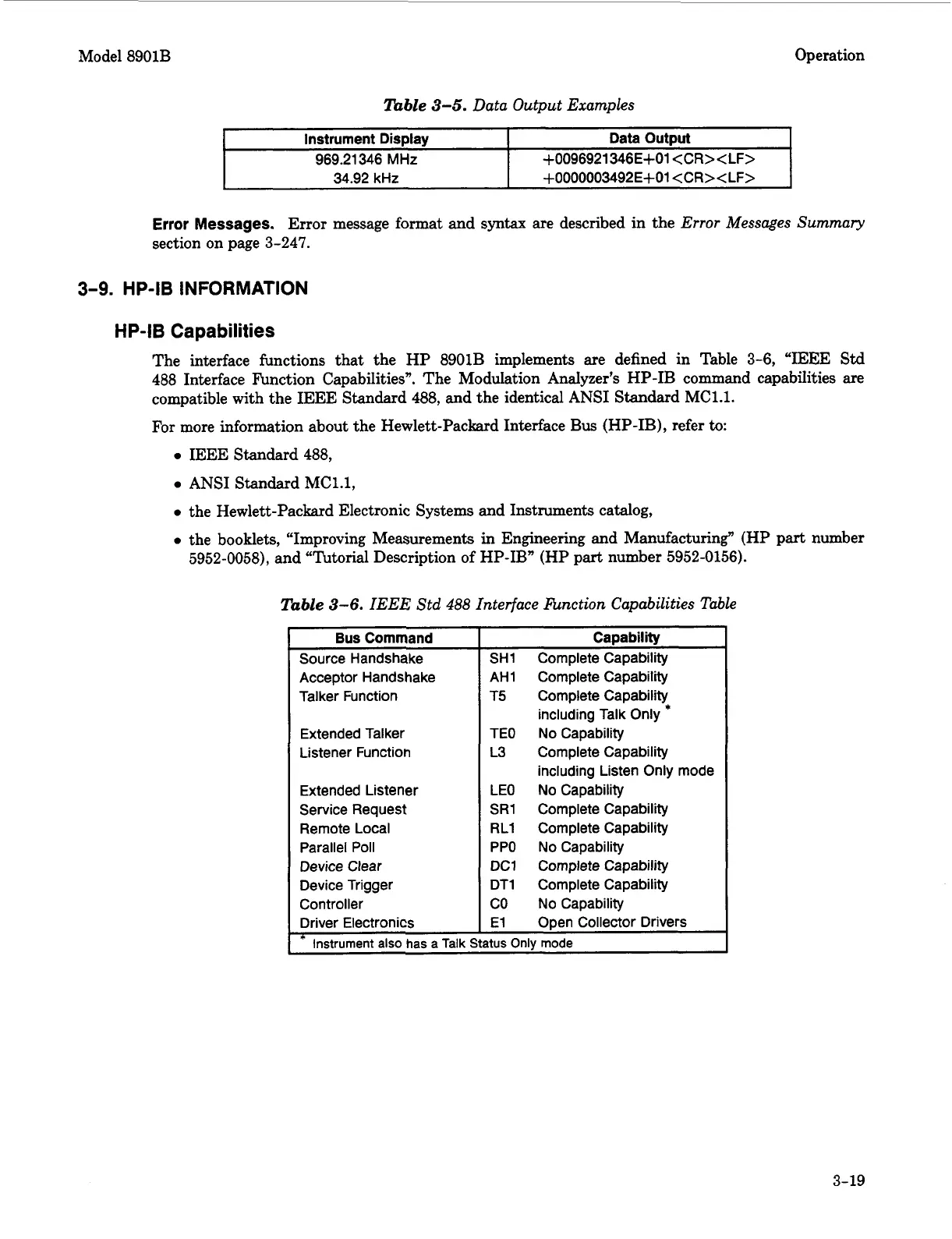

Model 8901B Operation
Instrument Display
969.21 346 MHz
34.92 kHz
Data Output
+0096921346E+01 <CR><LF>
+0000003492E+01< CR > < LF>
Error Messages. Error message format and syntax are described in the Error Messages Summary
section on page 3-247.
Bus Command
Source Handshake
Acceptor Handshake
Talker Function
Extended Talker
Listener Function
Extended Listener
Service Request
Remote Local
Parallel Poll
Device Clear
Device Trigger
Controller
Driver Electronics
3-9. HP-IB INFORMATION
Capability
SH1 Complete Capability
AH1 Complete Capability
T5 Complete Capability
including Talk Only *
TEO
No Capability
L3 Complete Capability
LEO No Capability
SR1 Complete Capability
RL1 Complete Capability
PPO No Capability
DC1 Complete Capability
DT1 Complete Capability
CO No Capability
El Open Collector Drivers
including Listen Only mode
HP-IB Capabilities
The interface functions that the HP 8901B implements are defined in Table 3-6, “IEEE Std
488 Interface Function Capabilities”. The Modulation Analyzer’s HP-IB command capabilities are
compatible with the IEEE Standard 488, and the identical ANSI Standard MC1.l.
For more information about the Hewlett-Packard Interface Bus (HP-IB), refer to:
0 IEEE Standard 488,
0 ANSI Standard MC1.l,
0 the Hewlett-Packard Electronic Systems and Instruments catalog,
0 the booklets, “Improving Measurements in Engineering and Manufacturing“ (HP part number
5952-0058), and “Tutorial Description of HP-IB” (HP part number 5952-0156).
!hble 3-6. IEEE Std 488 Interface hnction Capabilities Table
3-19
