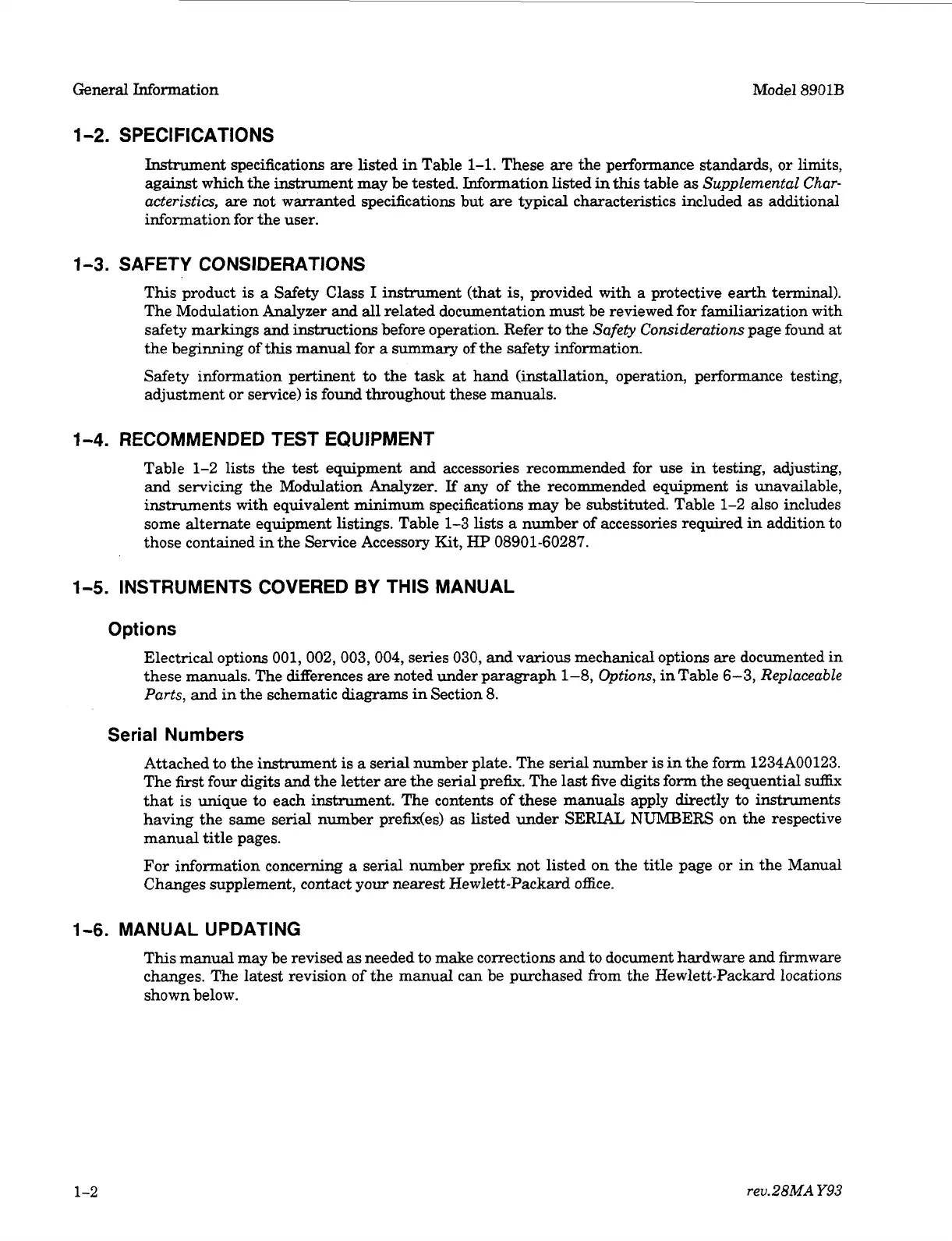

General Information Model 8901B
1-2.
SPECIFICATIONS
Instrwnent specifications are listed in Table
1-1.
These are the performance standards,
or
limits,
against which the
instrum
ent may be tested. Information listed in this table as
Supplemental
Char-
acteristics,
are not warranted specifications but are typical characteristics included as additional
information for the user.
1-3.
SAFETY CONSIDERATIONS
This product is a Safety Class
I
instrument (that is, provided with a protective earth terminal).
The Modulation Analyzer
and
all related documentation
must
be reviewed for familiarization with
safety markings
and
instructions before operation. Refer
to
the
Safety
Considerations
page found at
the beginning of
this
manual for a
summary
of the safety information.
Safety information pertinent
to
the task at hand
(installation,
operation, performance testing,
adjustment
or
service) is found throughout these manuals.
1-4.
RECOMMENDED TEST EQUIPMENT
Table
1-2
lists the test equipment
and
accessories recommended for use in testing, adjusting,
and servicing the Modulation Analyzer.
If
any of the recommended equipment is unavailable,
instruments with equivalent minimum specifications may be substituted. Table 1-2 also includes
some alternate equipment listings. Table 1-3 lists
a
number of accessories required in addition
to
those contained in the Service Accessory Kit, HP 08901-60287.
1-5.
INSTRUMENTS COVERED
BY
THIS MANUAL
Opt
ions
Electrical options 001,002,003,004, series 030, and various mechanical options
are
documented in
these manuals. The differences are noted under paragraph 1-8,
Options,
in Table 6-3,
Replaceable
Parts,
and in the schematic diagrams in Section 8.
Serial Numbers
Attached
to
the instrument is a serial number plate. The serial number is in the form 1234A00123.
The fist four digits
and
the letter are the serial prefix. The last five digits form the sequential
suffix
that is unique
to
each instrument. The contents
of
these manuals apply directly
to
instruments
having the same serial number prefix(es) as listed under SERIAL NUMBERS on the respective
manual title pages.
For information concerning a serial number prefix not listed on the title page
or
in the Manual
Changes supplement, contact
your
nearest Hewlett-Packard office.
1-6.
MANUAL UPDATING
This manual may be revised as needed
to
make corrections and
to
document hardware and firmware
changes. The latest revision
of
the manual
can
be purchased from the Hewlett-Packard locations
shown below.
