Installing the router on a workbench
To install the router on a workbench, as shown in Figure 14:
1. Make sure the workbench is clean, stable, and properly grounded.
2. Place the router upside down on the workbench and attach the rubber feet to the four round holes
in the chassis bottom.

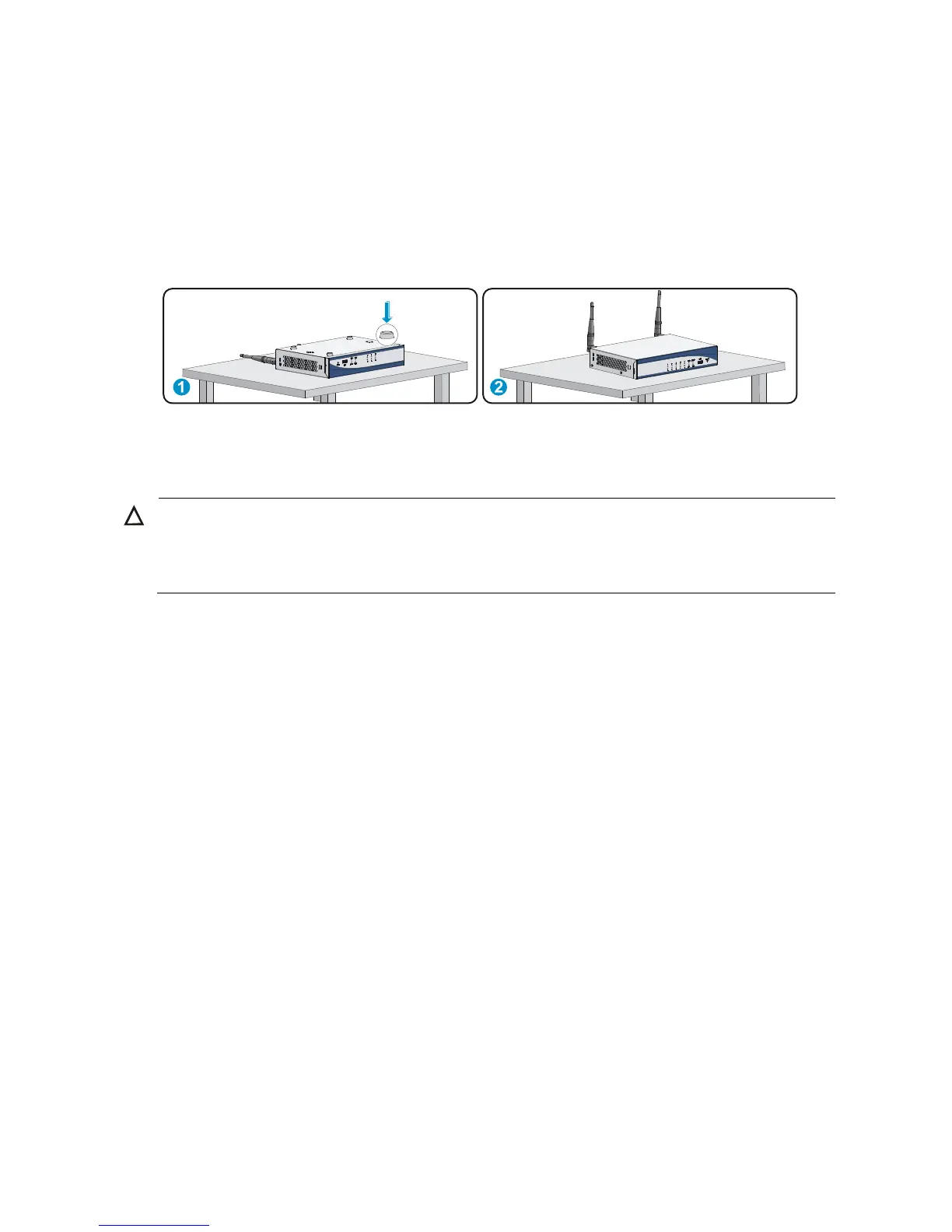

Figure 14 Installing the router on a workbench
Installing the router on a wall
CAUTION:
hen mountin
the router on a wall, position the router so the network interfaces face down (toward
the floor), and the sides with ventilation openings are perpendicular to the ground, as shown in Figure
15.
To mount the router on a wall, as shown in 4:
1. Mark the locations of the two mounting holes on the wall, 180 mm (7.09 in) apart. The holes must
be level (on the same horizontal line.)
2. Drill two holes in the wall.
3. Following the marks, drill the two holes at least 22 mm (0.87 in) deep. Verify that the holes are
level.
4. Insert an anchor into each hole so it is flush with the wall surface.
5. Drive a screw into each anchor, keeping the screw heads protruding at least 1.5 mm (0.06 in)
from the wall.
6. Hang the router on the screws.
