1
Product overview
This chapter shows the chassis panels of the HP A-MSR900 Router Series models listed in Table 1. The
chassis panel views shown may differ slightly from the actual panels.
Table 1 The HP A-MSR900 Router Series includes the following models:
J
#
T
yp
e
JF812A A-MSR900
JF814A A-MSR900-W
JG207A A-MSR900-W(NA)
JF813A A-MSR920
JF815A A-MSR920-W
JG208A A-MSR920-W(NA)
A-MSR900 panel views

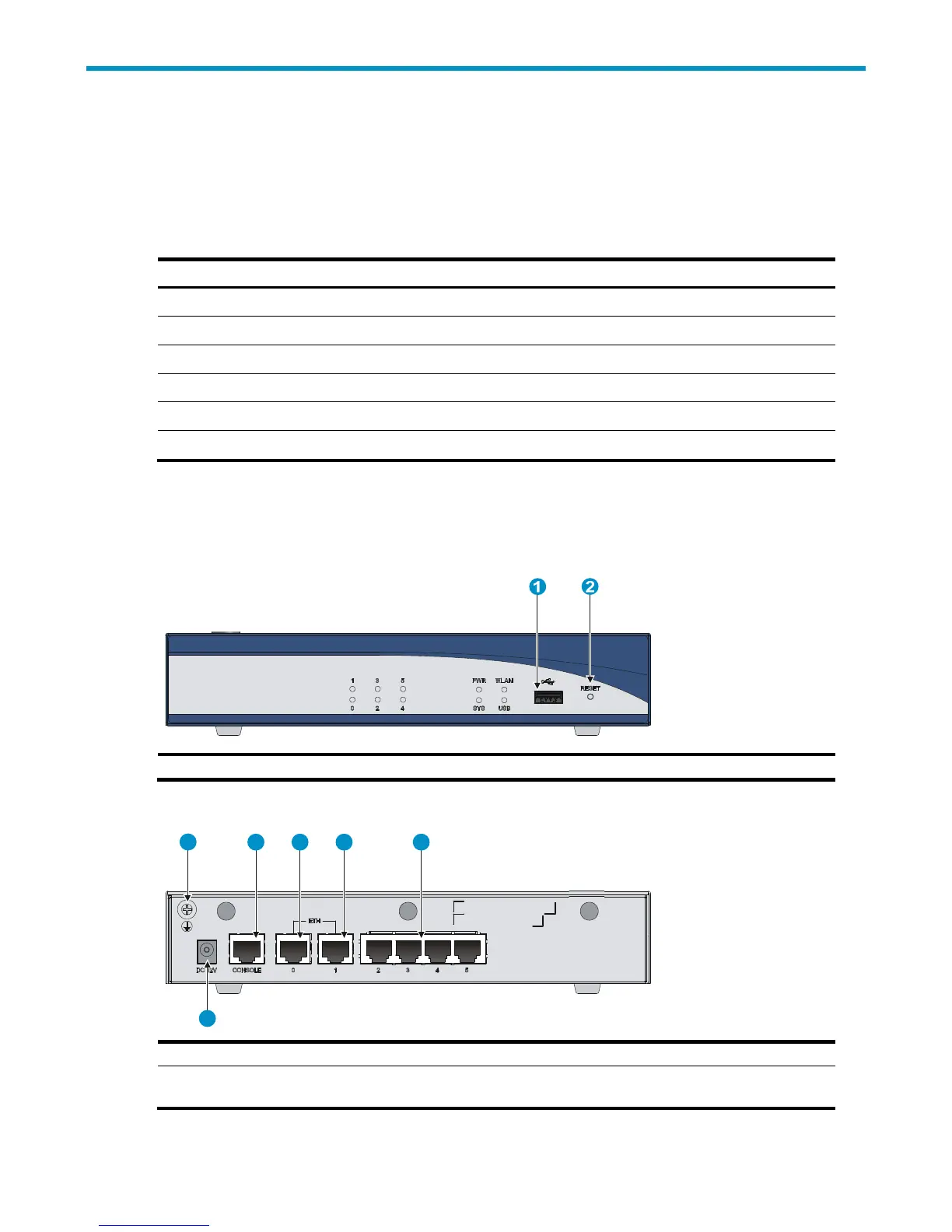

Figure 1 A-MSR900 front panel
(1) USB port (2) Reset button
Figure 2 A-MSR900 rear panel
1 2 3 4 5
6
(1) Grounding screw (2) Console port (3) Ethernet WAN port ETH0
(4) Ethernet WAN port ETH1 (5) Ethernet LAN ports (ETH2 to
ETH5)
(6) Power adapter port
