HP A-MSR900 Series - Grounding the Router

13

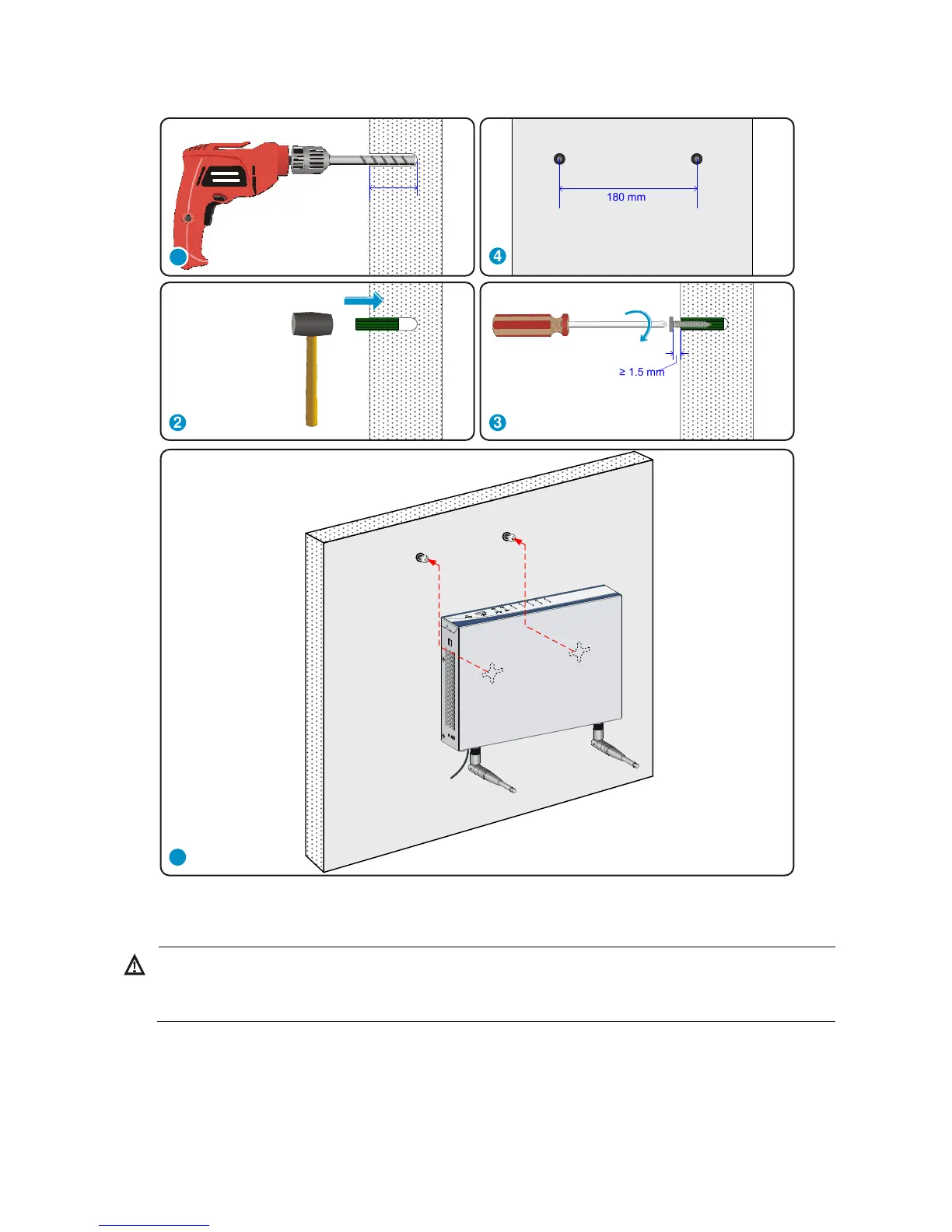

Figure 15 Wall-mounting the router
5
≥ 22 mm
1
180 mm
4
≥ 1.5 mm
32
Grounding the router
W
ARNING!
Connecting the router grounding cable correctly is crucial for protecting the router from lightning and
EMI.
The grounding resistance should be less than 5 ohms.
You can ground the router in one of the following ways, depending on the grounding conditions at the
installation site:
