Grounding the router to a buried grounding conductor
If the installation site has no grounding strips but offers the option of grounding to earth, hammer a 0.5 m
(1.64 ft) or longer angle iron or steel tube into the earth to serve as a grounding conductor, as shown
in Figure 18.

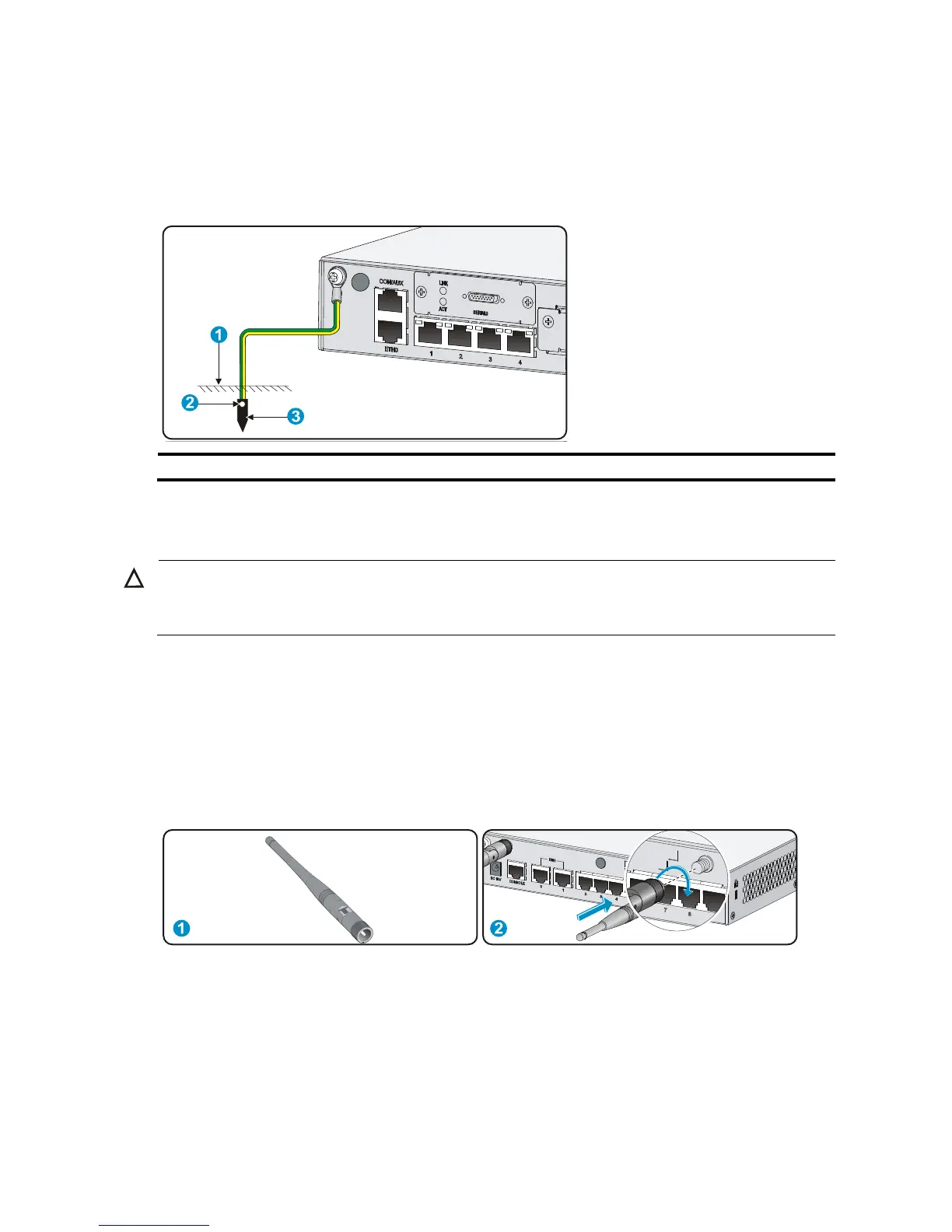

Figure 18 Grounding to
a conductor buried in the earth
(1) Earth (2) Joint (3) An
le iron
Installing an antenna
CAUTION:
Do not touch the antenna top, especially after the antenna is connected with the grounding contact.
Otherwise ESD may damage the router.
To ensure signal quality, use antennae supplied with the router.
To install an antenna:
1. Adjust the angle of the antenna to 180º.
2. Attach the antenna to the router, as shown in Figure 19. Avoid over-tightening.
The antenna must be vertical to the ground or ceiling to achieve the optimal coverage.
Figure 19 Installing an antenna
