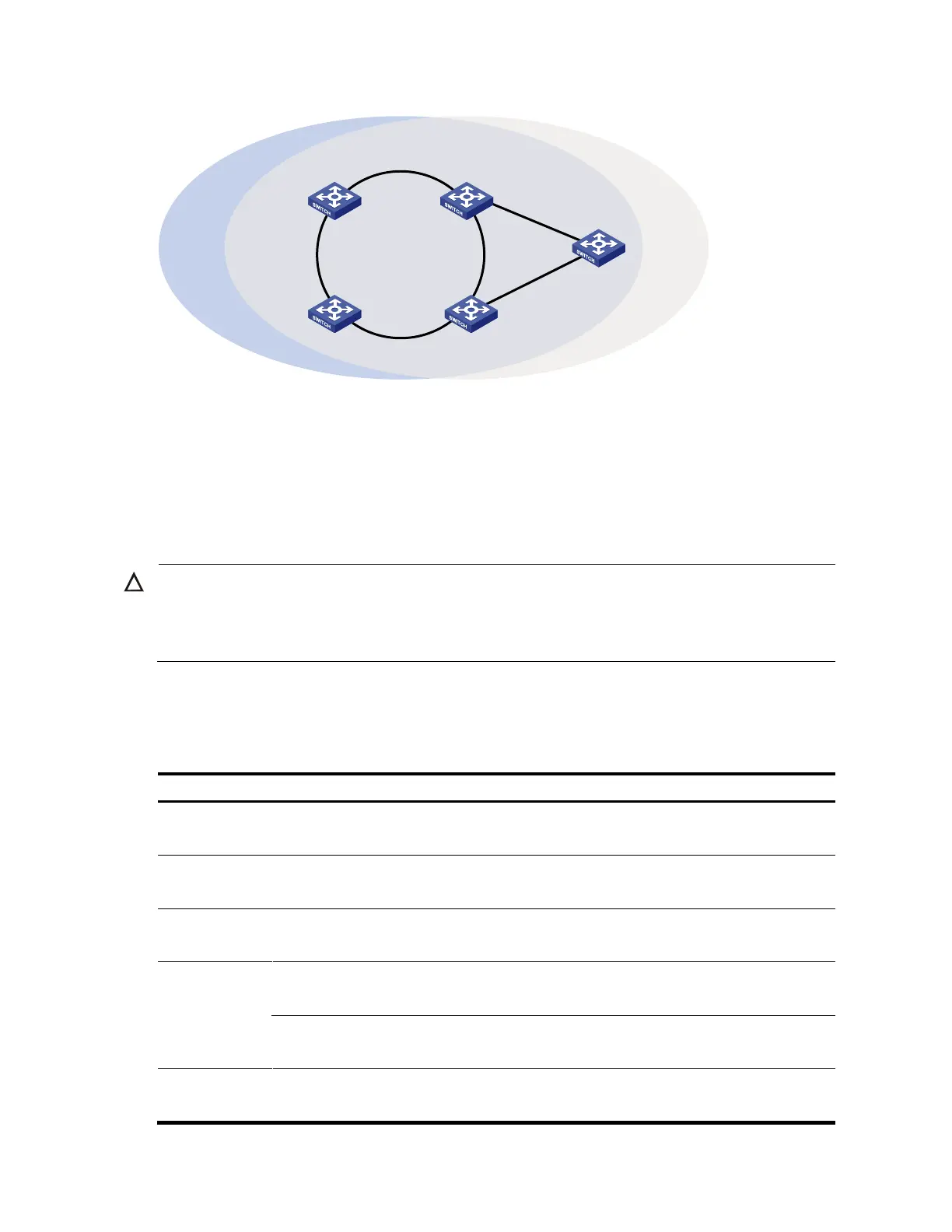

Figure 19 Schematic diagram for an intersecting-ring load balancing network
Domain 1 Ring 1 Ring 2
Device A Device B
Device D Device C
Device E
Domain 2
Protocols and standards
RFC 3619, Extreme Networks' Ethernet Automatic Protection Switching (EAPS) Version 1
RRPP configuration task list
CAUTION:
 RRPP does not have an auto election mechanism, so you must configure each node in the ring network properly
for RRPP to monitor and protect the ring network.
 Before configuring RRPP, you must construct a ring-shaped Ethernet topology physically.
You can create RRPP domains based on service planning, specify control VLANs and data VLANs for
each RRPP domain, and then determine the ring roles and node roles based on the traffic paths in each
RRPP domain.
Complete the following tasks to configure RRPP:
Task
Remarks
Creating an RRPP domain
Required
Perform this task on all nodes in the RRPP domain.
Configuring control VLANs
Required
Perform this task on all nodes in the RRPP domain.
Configuring protected VLANs
Required
Perform this task on all nodes in the RRPP domain.
Configuring
RRPP rings
Configuring RRPP ports
Required
Perform this task on all nodes in the RRPP domain.
Configuring RRPP nodes
Required
Perform this task on all nodes in the RRPP domain
Activating an RRPP domain
Required
Perform this task on all nodes in the RRPP domain.
