HP A6616 User Manual


For a Combo interface, the default operating interface is the electrical interface.

For a Combo interface, you can use either the electrical Ethernet interface or the optical
Ethernet interface. You can use the
view to switch between the optical and electrical interfaces. For details ab
enable { copper | fiber
} command, refer to
SR6600 Routers
User Manual

Use optical transceivers provided by
optical transceivers and thus displays alarms automatically.
 "Hot-
swapping" a module refers to first using the
the module, and then manually pulling it out, or inserting the module into its slot without
powering off the device. For details about the
Management in the
System Volume
LEDs

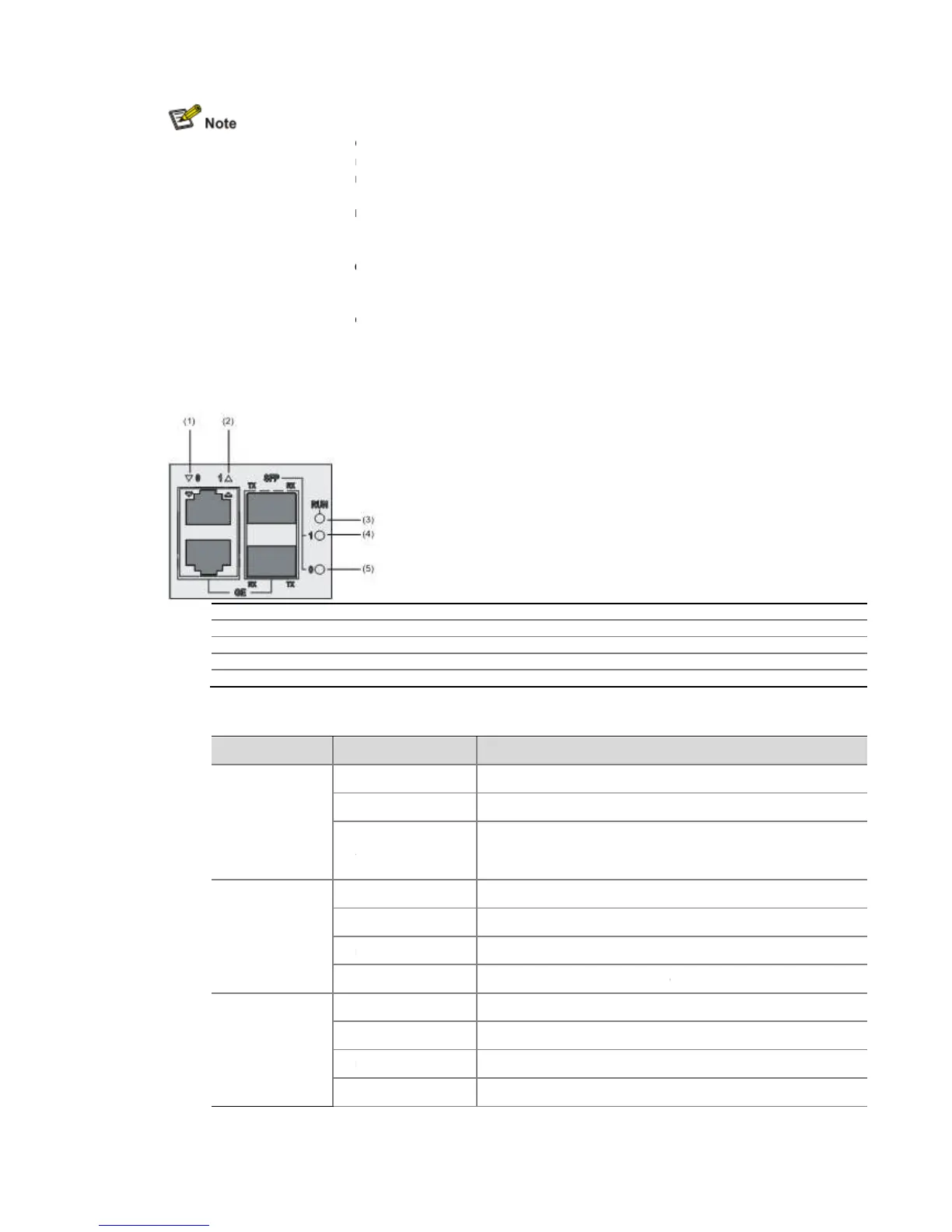

Figure 1-24 FIP-210 LEDs
(1) LED for 10/100/1000 Mbps electrical Ethernet interface 0 (GE0)
(2) LED for 10/100/1000 Mbps electrical Ethernet interface 1 (GE1)
(3) Run LED (RUN)
(4) 1000 Mbps optical Ethernet interface LED (SFP1)
(5) 1000
Mbps optical Ethernet interface LED (SFP0)
Table 1-27
Description of FIP
LED
RUN (green)
Off
Slow blinking (1 Hz)
Fast blinking (8 Hz)
SFP0 and SFP1
(yellow/green)
Off
Solid green
Blinking green
Solid yellow
GE0 and GE1
(yellow/green)
Off
Solid green
Blinking green
Solid yellow
For a Combo interface, the default operating interface is the electrical interface.
For a Combo interface, you can use either the electrical Ethernet interface or the optical
Ethernet interface. You can use the
combo enable { copper | fiber
} command in interface
view to switch between the optical and electrical interfaces. For details ab
} command, refer to
Ethernet Interfaces in the
Access Volume
User Manual
.
Use optical transceivers provided by
HP
only. The device may be incompatible with other
optical transceivers and thus displays alarms automatically.
swapping" a module refers to first using the
remove slot slot-number
the module, and then manually pulling it out, or inserting the module into its slot without
powering off the device. For details about the
remove slot
command, refer to
System Volume
of HP SR6600 Routers User Manual.
(1) LED for 10/100/1000 Mbps electrical Ethernet interface 0 (GE0)
(2) LED for 10/100/1000 Mbps electrical Ethernet interface 1 (GE1)
(4) 1000 Mbps optical Ethernet interface LED (SFP1)
Mbps optical Ethernet interface LED (SFP0)
Description of FIP
-210 LEDs
Status
Meaning
Off
No power input is available or the FIP
Slow blinking (1 Hz)
The FIP-
210 is working normally.
Fast blinking (8 Hz)
Application program is being loaded (in this case, never power
off the device or hot-
swap the FIP
may be damaged).
Off
No optical link is present.
Solid green
An optical link is present.
Blinking green
Data is being sent or received at a rate of 1000 Mbps.
Solid yellow
The optical transceiver has failed in POST.
Off
No link is present.
Solid green
A 1000 Mbps link is present.
Blinking green
Data is being
received or transmitted at a rate of 1000 Mbps.
Solid yellow
A 10/100 Mbps link is present.
For a Combo interface, the default operating interface is the electrical interface.
For a Combo interface, you can use either the electrical Ethernet interface or the optical
} command in interface
view to switch between the optical and electrical interfaces. For details ab
out the combo
Access Volume
of HP
only. The device may be incompatible with other
command to stop
the module, and then manually pulling it out, or inserting the module into its slot without
command, refer to
Device
Meaning
No power input is available or the FIP
-210 has failed.
210 is working normally.
Application program is being loaded (in this case, never power
swap the FIP
-210; otherwise, the FIP-210
Data is being sent or received at a rate of 1000 Mbps.
The optical transceiver has failed in POST.
received or transmitted at a rate of 1000 Mbps.
