Power Modules
Table 1-3 Power module specifications
Item Specification
Rated voltage range
AC powered: 100 VAC to 240 VAC; 50 Hz or 60 Hz
DC powered: –48 VDC to –60 VDC
Maximum input current
AC powered: 10 A
DC powered: 25 A
Maximum power provided by one power
module
650 W
Physical dimensions (H × W × D) 40 × 140 × 354 mm (1.57 × 5.51 ×13.94 in.)
Power module slots
Four power module slots are offered. The power modules must
have the same specifications.
Intelligent power supply management is supported.
Power module redundancy backup is recommended for high
reliability.
Power consumption range 97.5 W to 1166.5 W

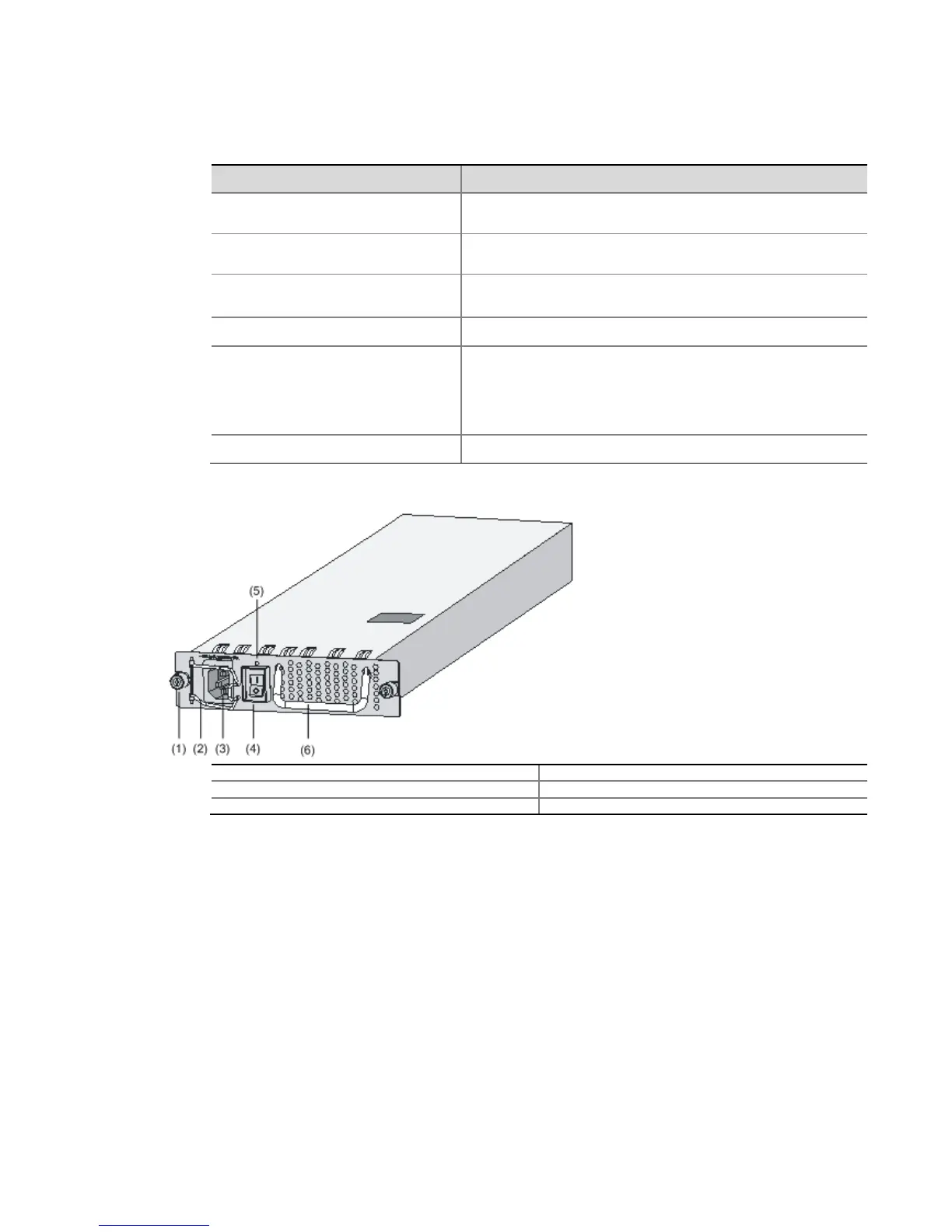

Figure 1-4 AC power module
(1) Captive screw (2) Bail latch
(3) Power socket (4) Power switch
(5) Power LED (6) Power module handle
