HP A6616 User Manual

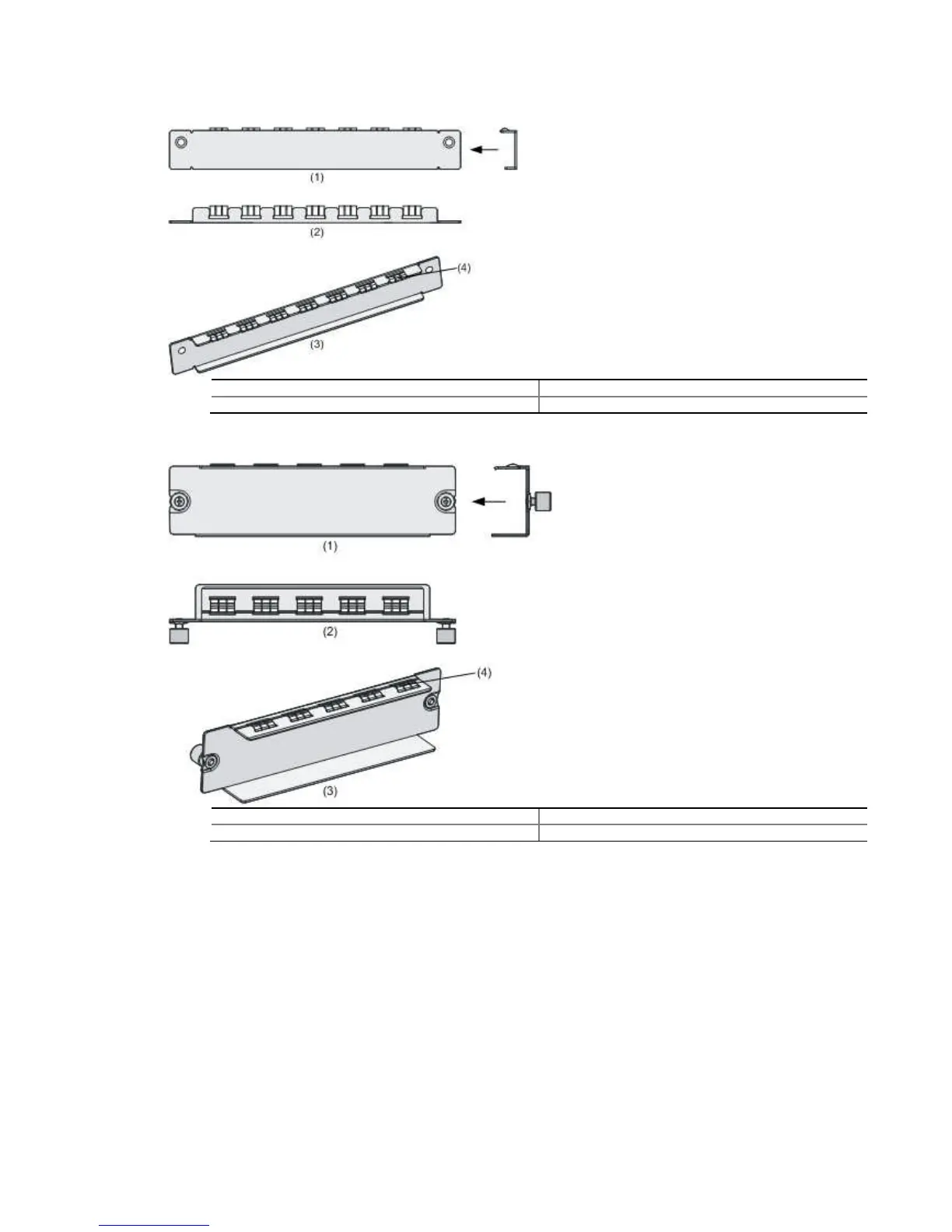

Figure 4-48
Blank panel for a HIM/MIM slot
(1) Front view
(3) Oblique rear view
Figure 4-49
Blank panel for a power module slot
(1) Front view
(3) Oblique rear view
Removing a Blank Panel
Follow these steps to remove a blank panel:
Step1
Face the front panel of the router.
Step2
Locate the blank panel to be removed. Loosen the two captive screws counterclockwise with a
Philips screwdriver. Then, remove the blank panel.
Step3
The following figure illustrates how to remove a FIP blank panel.
Blank panel for a HIM/MIM slot
(2) Side view
(4) EMI gasket
Blank panel for a power module slot
(2) Side view
(4) EMI gasket
Removing a Blank Panel
Follow these steps to remove a blank panel:
Face the front panel of the router.
Locate the blank panel to be removed. Loosen the two captive screws counterclockwise with a
Philips screwdriver. Then, remove the blank panel.
The following figure illustrates how to remove a FIP blank panel.
Locate the blank panel to be removed. Loosen the two captive screws counterclockwise with a
