HP A6616 - Physical Description; Front View

Physical Description
Front View

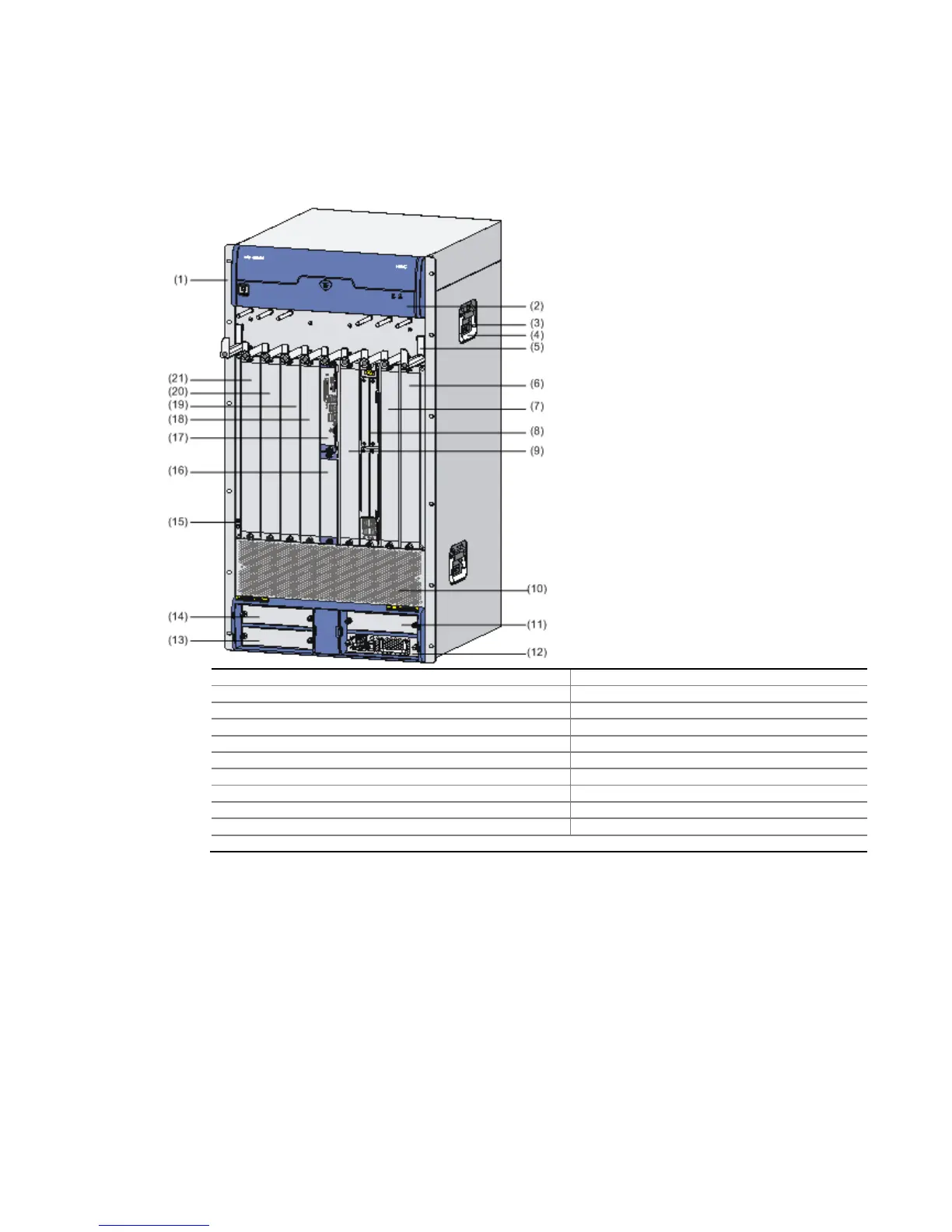

Figure 1-1 Front view of the A6616 (configured with an RPE-X1)
(1) Mounting bracket (2) Fan tray
(3) Weight-bearing warning label (100 kg/220.46 lb) (4) Chassis handle
(5) Cable management bracket (6) FIP slot (Slot 9)
(7) FIP slot (Slot 8) (8) FIP-200 (Slot 7)
(9) FIP slot (Slot 6) (10) Air inlets (air filters are optional)
(11) Power module slot (PWR3) (12) AC power module (PWR1)
(13) Power module slot (PWR2) (14) Power module slot (PWR4)
(15) ESD socket and silkscreen (16) MPU slot (Slot 4)
(17) RPE-X1 (Slot 5) (18) FIP slot (Slot 3)
(19) FIP slot (Slot 2) (20) FIP slot (Slot 1)
(21) FIP slot (Slot 0)
