Table 4-1 Dimensions of the router
Item Description
Dimensions without foot pads and mounting brackets
(H × W × D)
886 × 436 × 480 mm (34.9 × 17.2 × 18.9 in.)
Installing an N68 Rack
The router can be installed in an HP N68 rack. For the installation of an N68 rack, refer to N68
Cabinet Installation and Modification Guide.
Skip this procedure if you want to install the router in a rack other than N68 rack.
Installing the cable management bracket
Before installing the router to the rack, screw the cable management bracket to the bottom of
the fan tray.

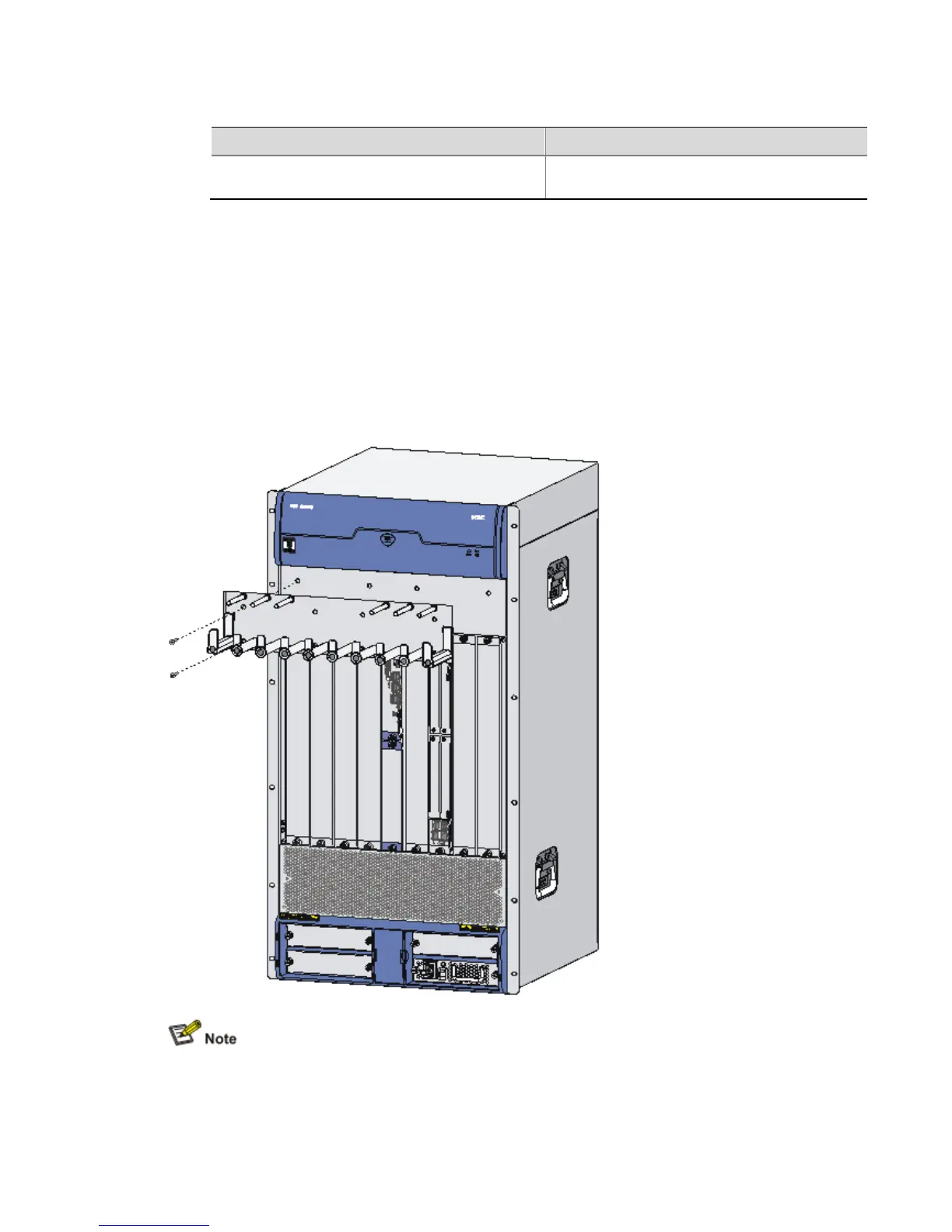

Figure 4-2 Install the cable management bracket
To ensure good ventilation, you need to install the cable management bracket before installing
the router in the rack. Otherwise, air goes off through big holes and the heat dissipation is
affected; the fan rotating speed is increased and louder noise is generated.
