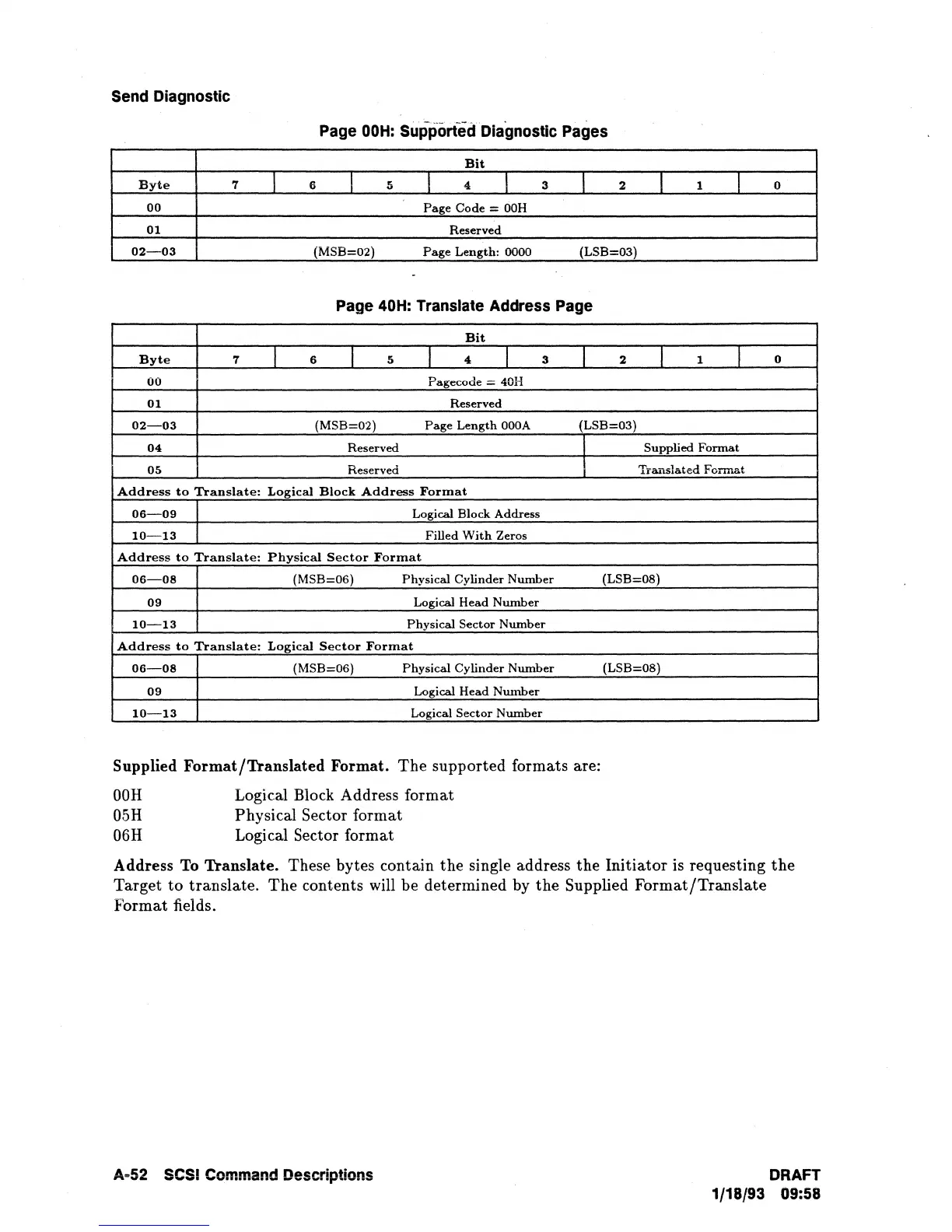

Send Diagnostic
Page
OOH: Supp-orted Diagnostic Pages
Bit
Byte
7
1
6
I
5
I
4
I
3
I
2
I
1
I
0
00
Page Code = DOH
01
Reserved
02-03
(MSB=02) Page Length: 0000
(LSB=03)
Page 40H: Translate Address Page
Bit
Byte
7
1
6
J
5
I
4
I
3
I
2
I
1
I
0
00
Pagecode "'" 40B
01 Reserved
02-03
(MSB=02)
Page Length OOOA
(LSB=03)
04 Reserved
J
Supplied Format
05
Reserved
I
Translated Format
Address to Translate: Logical Block Address Format
06-09 Logical Block Address
10-13 Filled With Zeros
Address to Translate: Physical Sector Format
06-08
(MSB=06)
Physical Cylinder Number (LSB=08)
09
Logical Head Number
10-13 Physical Sector Number
Address to Translate: Logical Sector Format
06-08
(MSB=06)
Physical Cylinder Number
09
Logical Head Number
10-13 Logical Sector Number
Supplied Format/Translated Format. The supported formats are:
OOH
05H
06H
Logical Block Address format
Physical Sector format
Logical Sector format
(LSB=08)
Address To Translate. These bytes contain the single address the Initiator is requesting the
Target to translate. The contents will be determined by the Supplied Format /Translate
Format fields.
A=52 SCSI Command Descriptions DRAFT
1/18/93 09:58
