Inquiry
maximum number of bytes that will be transferred. The Target will terminate the DATA IN
phase when the specified number of bytes have been transferred or when all available Inquiry
data have been transferred to the Initiator, whichever is less.

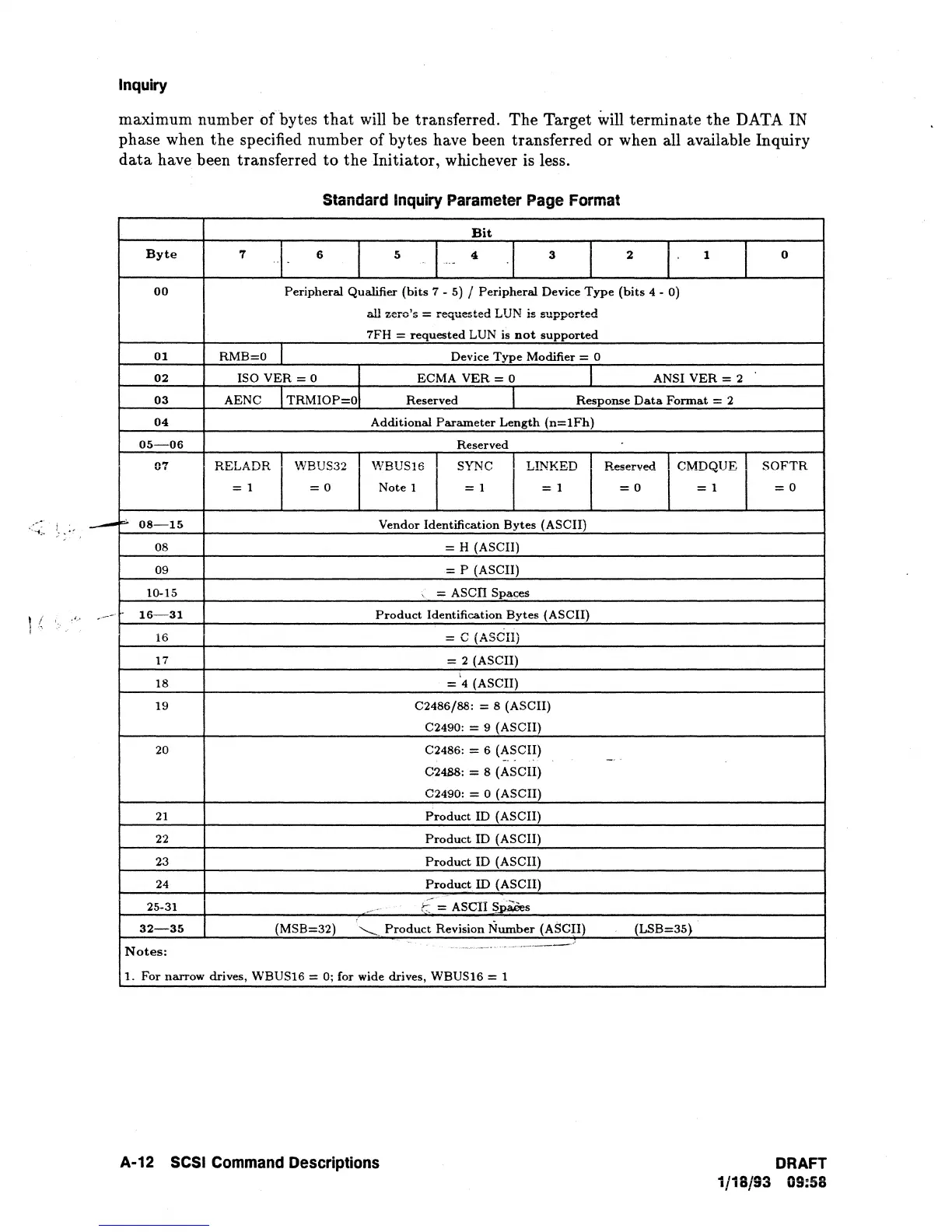

Standard Inquiry Parameter Page Format
Bit
Byte
7 6 5
4
3 2 1
0
...
, .. ~
00
Peripheral Qualifier (bits 7 - 5) / Peripheral Device Type (bits 4 - 0)
all zero's = requested LUN is supported
7FH = requested LUN is not supported
01
RMB=O Device Type Modifier = 0
02 ISO VER = 0
ECMA VER= 0 ANSI VER = 2
03 AENC
TRMIOP=O
Reserved
Response
Data Fonnat = 2
04
Additional Parameter Length (n=1Fh)
05-06
Reserved
07 RELADR WBUS32 WBUS16
SYNC
LINKED Reserved
CMDQUE SOFTR
=1 =0
Note 1
=1 =1 =0 =1
=0
P 08-15
Vendor Identification Bytes (ASCII)
08
= H (ASCII)
09
= P (ASCII)
10-15
\
= ASCII Sp~<;eS
16-31
Product Identification Bytes (ASCII)
16 = C (ASCII)
17
= 2
(ASCII)
18 = '4 (ASCII)
19
C2486/88: = 8
(ASCII)
C2490: = 9 (ASCII)
20
C2486: = 6 (ASCII)
-- .
C2488: = 8 (ASCII)
C2490:
= 0 (ASCII)
21 Product ID (ASCII)
22
Product ID (ASCII)
23
Product ID (ASCII)
24
Product ID (ASCII)
25-31
0"
--
'::''';' ASCII~s
32-35
(MSB=32)
"
Product Revision Number (ASCII)
{LSB=35}
Notes:
..... _ .... _ ........ ----)
1. For narrow drives, WBUS16 = 0; for wide drives, WBUS16 = 1
A·12 SCSI Command Descriptions
DRAFT
1/18/93 09:58
