Inquiry

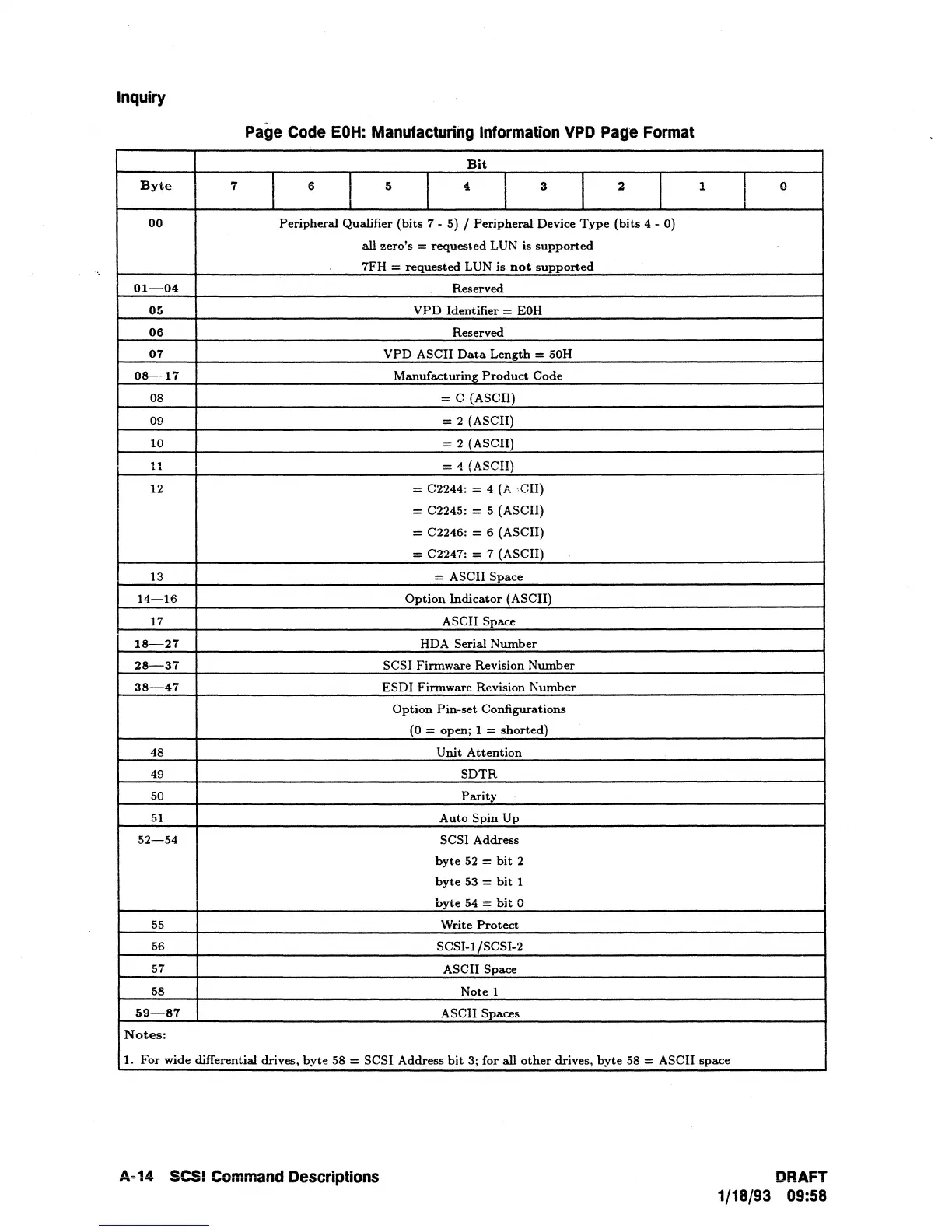

Page Code EOH: Manufacturing Information VPD Page Format
Bit
Byte
7
I
6
I
5
I
,
I
3
I
2
I
1
I
0
00
Peripheral Qualifier (bits 7 - 5) / Peripheral Device Type (bits 4 - 0)
all zero's = requested LUN is supported
7FH = requested LUN is not supported
01-04
Reserved
05
VPD Identifier = EOH
06
Reserved·
07
VPD ASCII Data Length = 50H
08-17
Manufacturing Product Code
08
= C (ASCII)
09
= 2 (ASCII)
10
= 2 (ASCII)
11
=" (ASCII)
12
= C2244: = 4 (A.-CII)
= C2245: = 5 (ASCII)
= C2246: = 6 (ASCII)
= C2247: = 7 (ASCII)
13
= ASCII Space
14-16 Option Indicator (ASCII)
17 ASCII Space
18-27
HDA Serial Number
28-37
SCSI Finnware Revision Number
38-47 ESDI Finnware Revision Number
Option Pin-set Configurations
(O = open; 1 = shorted)
48 Unit Attention
49 SDTR
50 Parity
51 Auto Spin Up
52-54
SCSI Address
byte 52 = bit 2
byte 53 = bit 1
byte 54 ::: bit 0
55
Write
Protect
56
SCSI-l/SCSI-2
57
ASCII Space
58
Note 1
59-87
ASCII Spaces
Notes:
1. For wide differential drives, byte 58 = SCSI Address bit 3; for all other drives, byte 58 = ASCII space
