.. Mode Select, 'Mode Sense

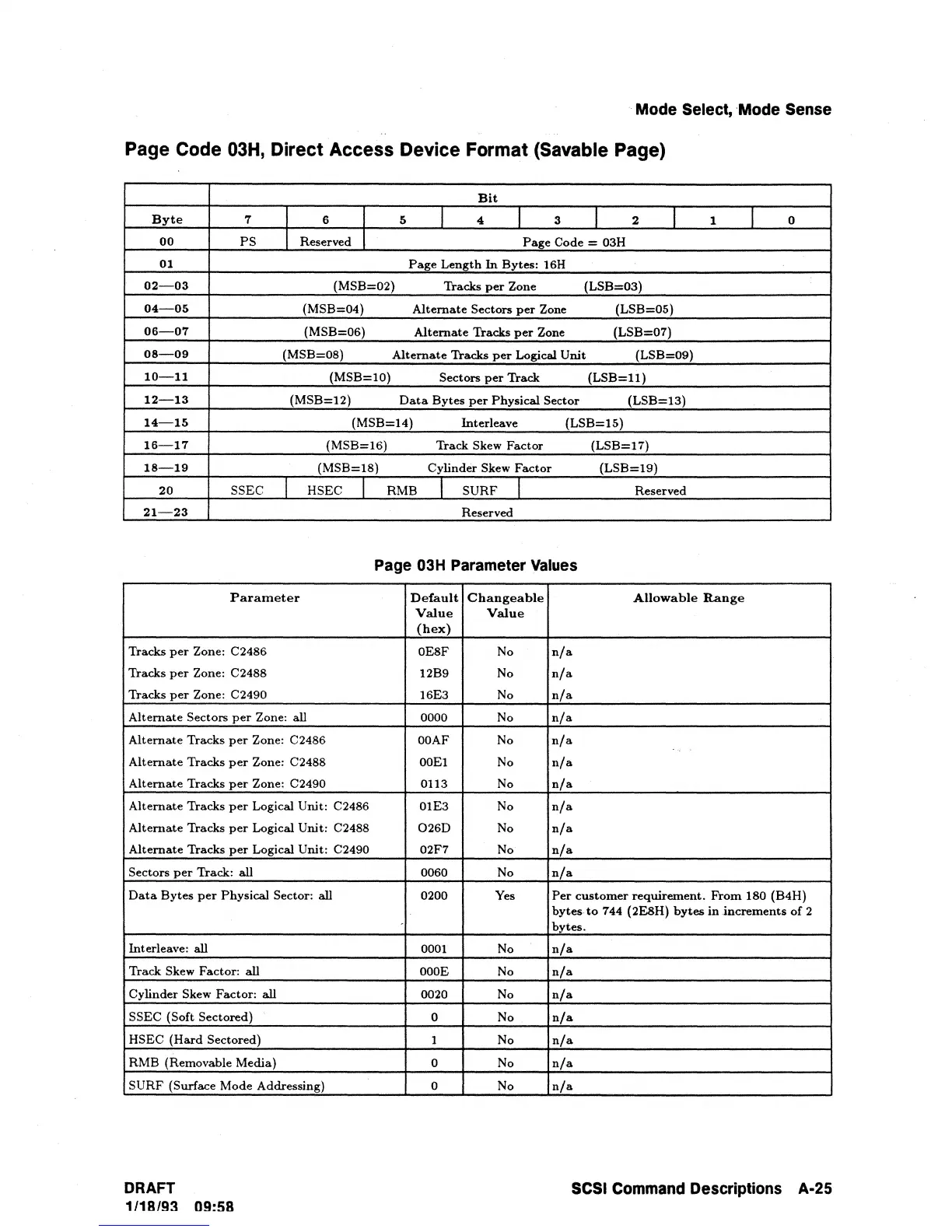

Page Code 03H
,
Direct Access Device Format (Savable Page)
Bit
Byte
7
6
5
I
4
I
3
I
2
I
1
I
0
00
PS
Reserved
Page Code = 03H
01
Page Length In Bytes: 16H
02-03
(MSB=02) Tracks per Zone
(LSB=03)
04-05
(MSB=04) Alternate Sectors per Zone
(LSB=05)
06-07
(MSB=06) Alternate Tracks per Zone
(LSB=07)
08-09
(MSB=08)
Alternate Tracks per Logical Unit
(LSB=09)
10-11
(MSB=lO) Sectors per Track
(LSB=l1)
12-13
(MSB=12)
Data Bytes per Physical Sector
(LSB=13)
14-15
(MSB=14) Interleave
(LSB=15)
16-17
(MSB=16) Track Skew Factor
(LSB=17)
18-19
(MSB=18)
Cylinder Skew
Factor
(LSB=19)
20 SSEC HSEC
RMB
I
SURF
I
Reserved
21-23
Reserved
Page 03H Parameter values
Parameter
Default
Cbangeable Allowable Range
Value Value
(bex)
Tracks per Zone: C2486
OE8F No
n/a
Tracks per Zone: C2488
12B9 No
n/a
Tracks per Zone: C2490
16E3 No
n/a
Alternate Sectors per Zone: all
0000
No
n/a
Alternate Tracks per Zone: C2486
OOAF No
n/a
Alternate Tracks per Zone: C2488
OOEI No
n/a
Alternate Tracks per Zone: C2490
0113
No
n/a
Alternate Tracks per Logical Unit: C2486
01E3
No
n/a
Alternate Tracks per Logical Unit: C2488 0260
No
n/a
Alternate Tracks per Logical Unit: C2490 02F7
No
n/a
Sectors per Track: all 0060
No
n/a
Data Bytes per Physical Sector: all
0200
Yes Per customer requirement. From 180 (B4H)
bytes to 744 (2E8H) bytes in .increments of 2
bytes.
Interleave:
all
0001 No
n/a
Track Skew Factor: all
OOOE
No
n/a
Cylinder Skew Factor: all
0020 No
n/a
SSEC (Soft Sectored)
0 No
n/a
HSEC (Hard Sectored)
1 No
n/a
RMB (Removable Media) 0
No
n/a
SURF (Surface Mode Addressing)
0 No
n/a
DRAFT
SCSI Command Descriptions A·25
1118193 09:58
