3–22 Technical Reference Guide
Installing or Replacing Parts
SCSI Drives
The HP workstation c8000 supports up to four SCSI hard drives attached to the SCSI A
connector.
1. Set the SCSI ID on your drive(s):
❏ Drive 1 ID=3
❏ Drive 2 ID=4
❏ Drive 3 ID=5
❏ Drive 4 ID=6
See the label on the hard drive or documentation provided with the drive for instructions on
setting SCSI IDs. These instructions should include a diagram of the jumper block and
jumper settings for each SCSI ID.
NOTE: See Appendix B, “SCSI Guidelines” for more information on configuring SCSI drives.
2. Locate the SCSI cable connected to the SCSI A connector on the system board 1 and attach
the cable 2 to the hard drive(s).
3. Install drives in bays in the following order 3:
❏ Use bay 3d for Drive 1
❏ Use bay 3b for Drive 2
❏ Use bay 3c for Drive 3
❏ Use bay 3a for Drive 4
NOTE: There is no need to terminate the SCSI chain. The supported SCSI cable includes an
attached hardware terminator.

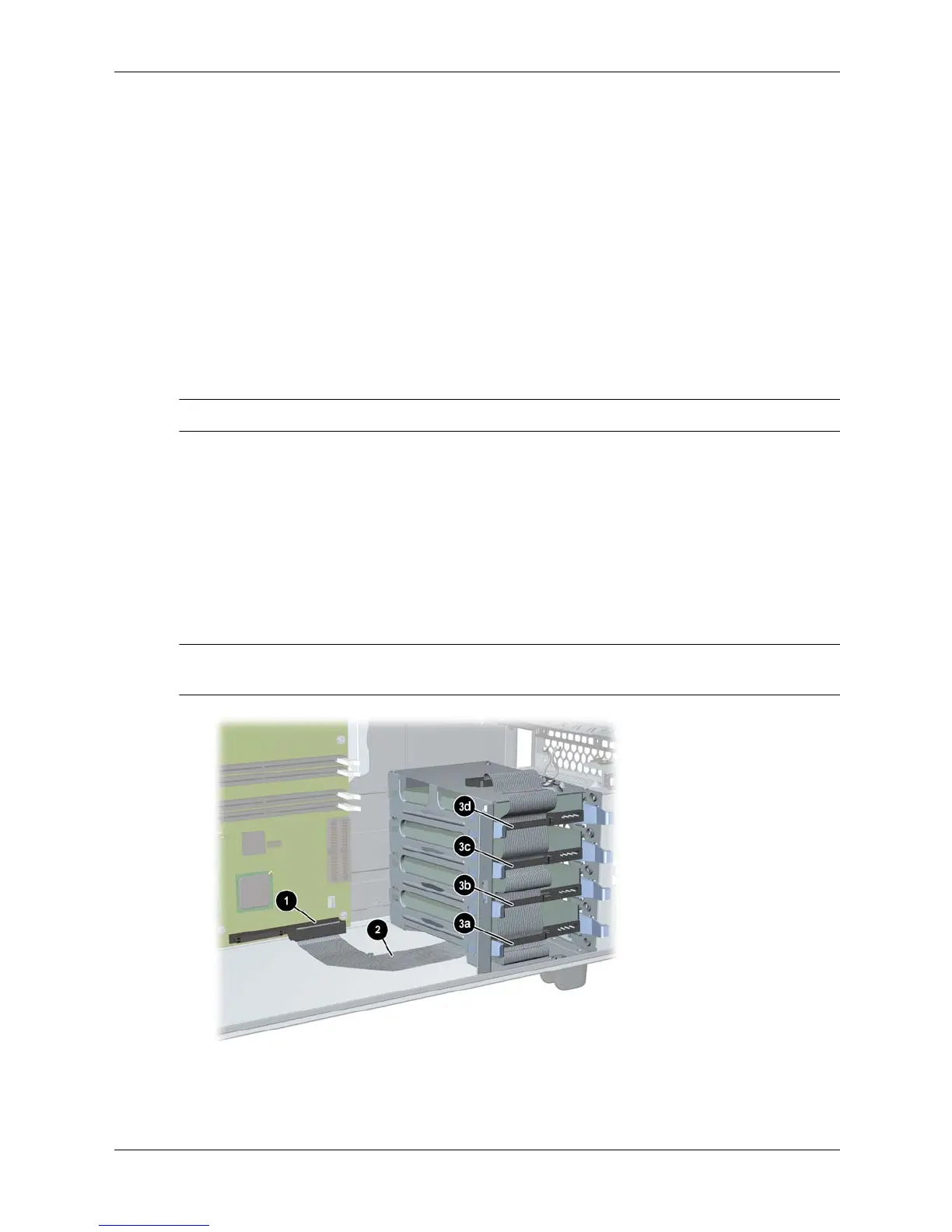

SCSI hard drive locations
