3–24 Technical Reference Guide
Installing or Replacing Parts
2. Plug the cable into the connector 1 and route as shown.

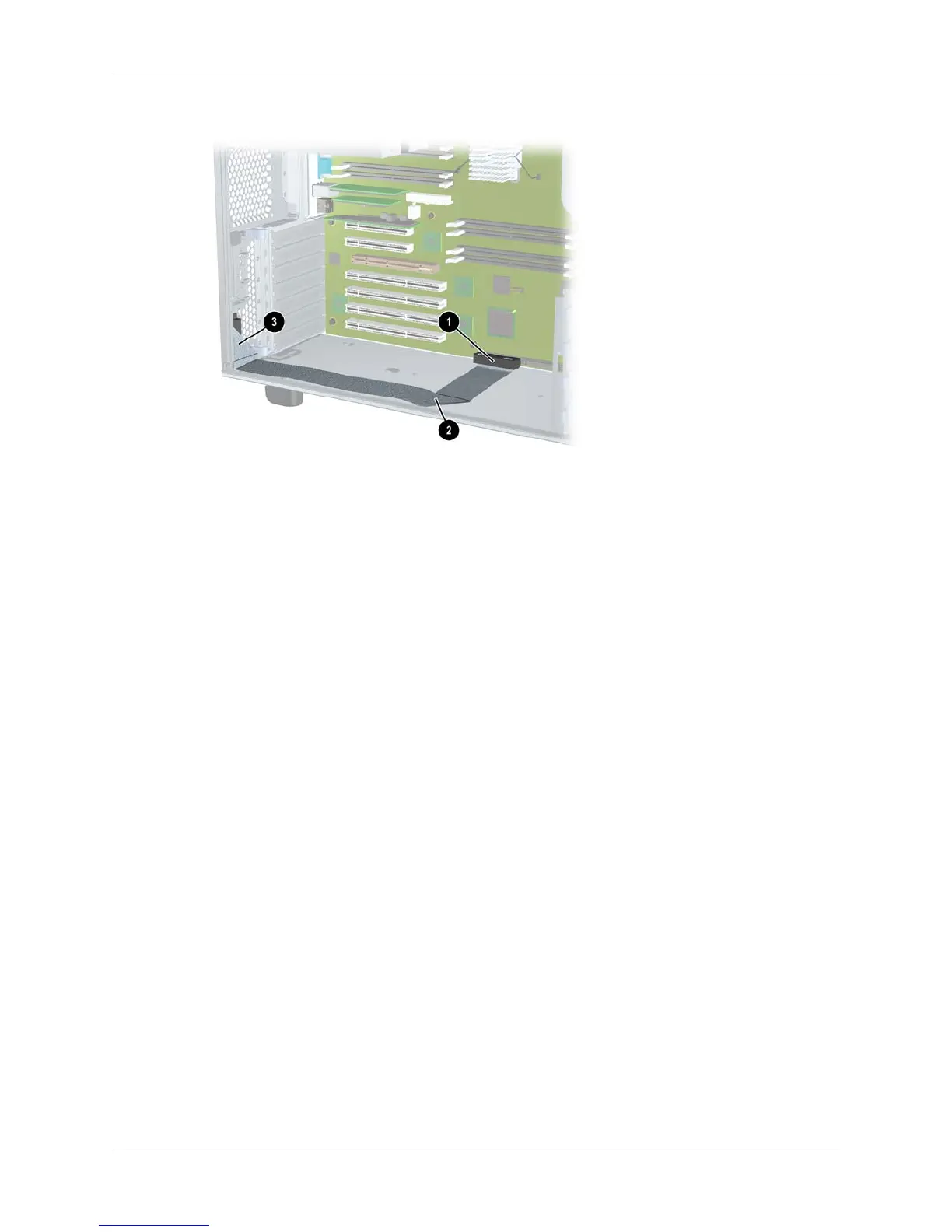

Installing external connector
3. Peel the release liner off of the pad on the cable and press the pad against the chassis wall 2
to secure.
4. Thread the jackscrews through the rear chassis wall and into the connector 3.
