3ā28 Technical Reference Guide
Installing or Replacing Parts
3. To remove the chassis fan:
a. Unplug the fan power cable 1.
b. Remove the push rivets holding the fan in place 2 then slide the fan towards the front of
the chassis and lift the fan out of the system 3.

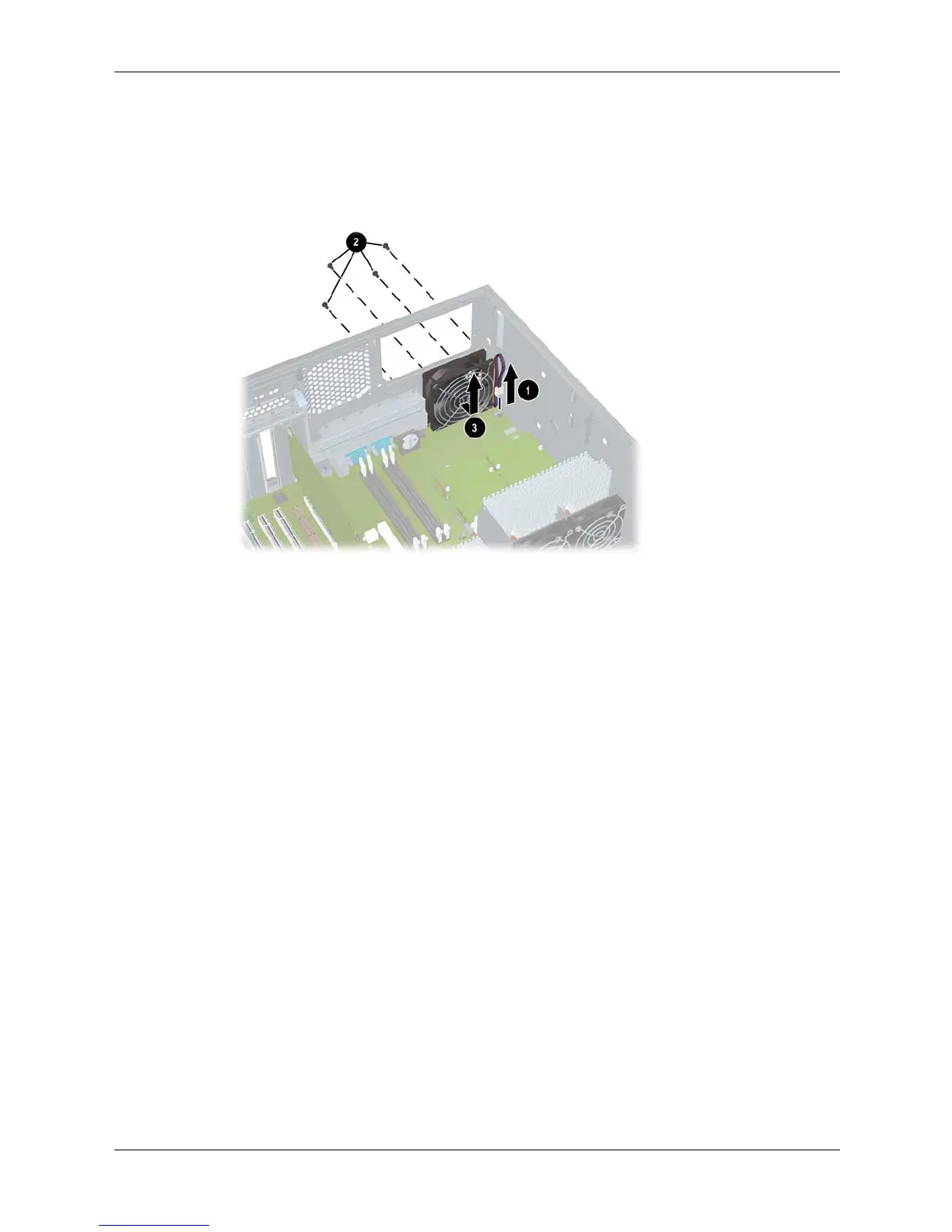

Removing the chassis fan
Replacing the Hard Drive and Chassis Fans
1. Grasp the replacement fan module firmly and insert it into same location from which you
removed the old fan.
ā If you are replacing the chassis fan, install the push rivets.
2. Re-attach the fan cable.
3. Replace the access panel and reconnect all cables.
4. Turn the system on, then check that the fans have been properly installed by verifying that
none of the Diagnostic LEDs on the rear panel of the system are lit.
