3–30 Technical Reference Guide
Installing or Replacing Parts

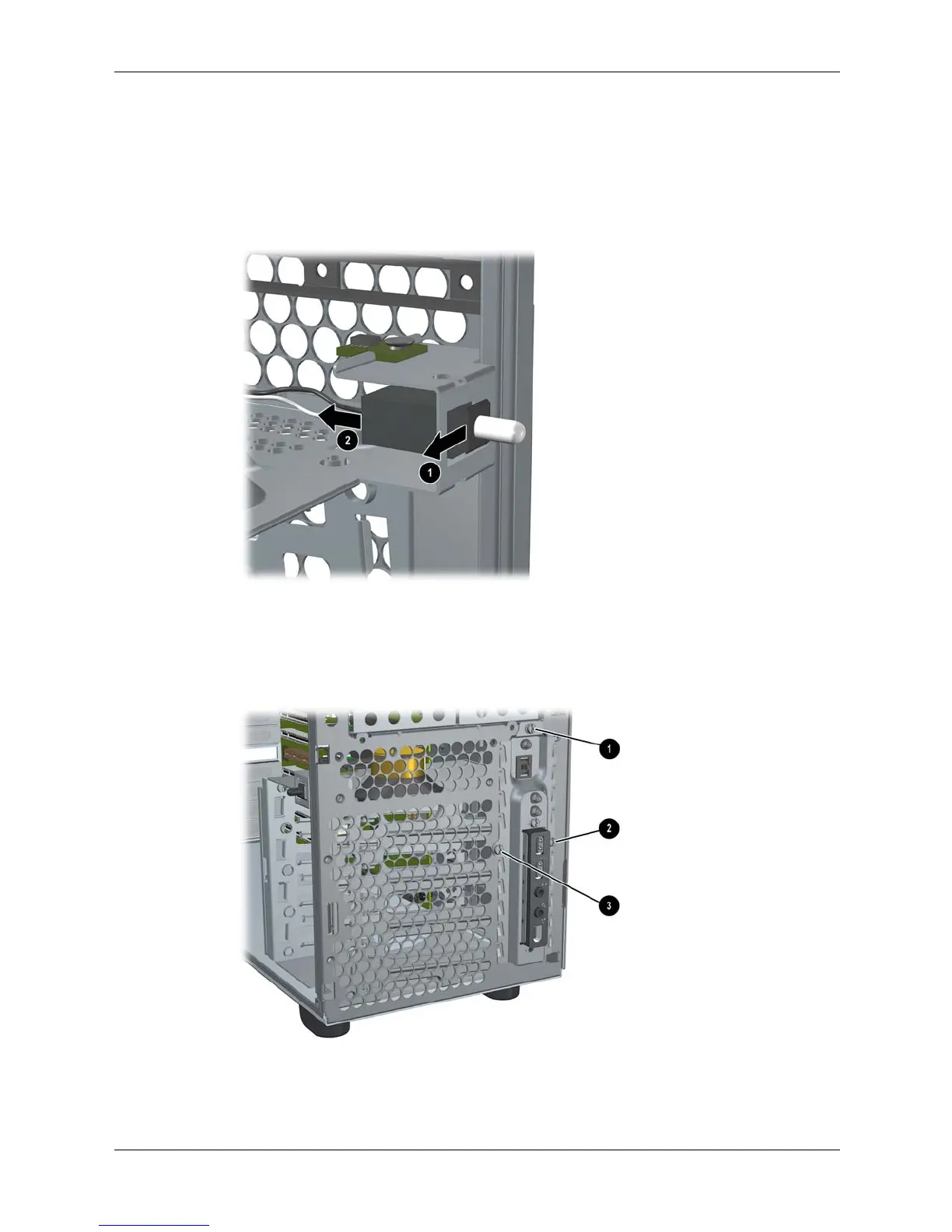

3. Remove the chassis intrusion switch and temperature sensor:
a. Slide the switch out of the slot by pushing it in the direction shown 1.
b. Pull the switch out of the opening 2.
c. Pull up on the head of the plastic push rivet and remove it, then remove the sensor from
the system 5.
Removing the chassis intrusion switch
4. Remove the panel from the system:
a. Use a Torx T-15 or slot screwdriver to remove the screws holding the front control
module in place 1 2 3.
Unscrewing the front control module
