Display assembly subcomponents

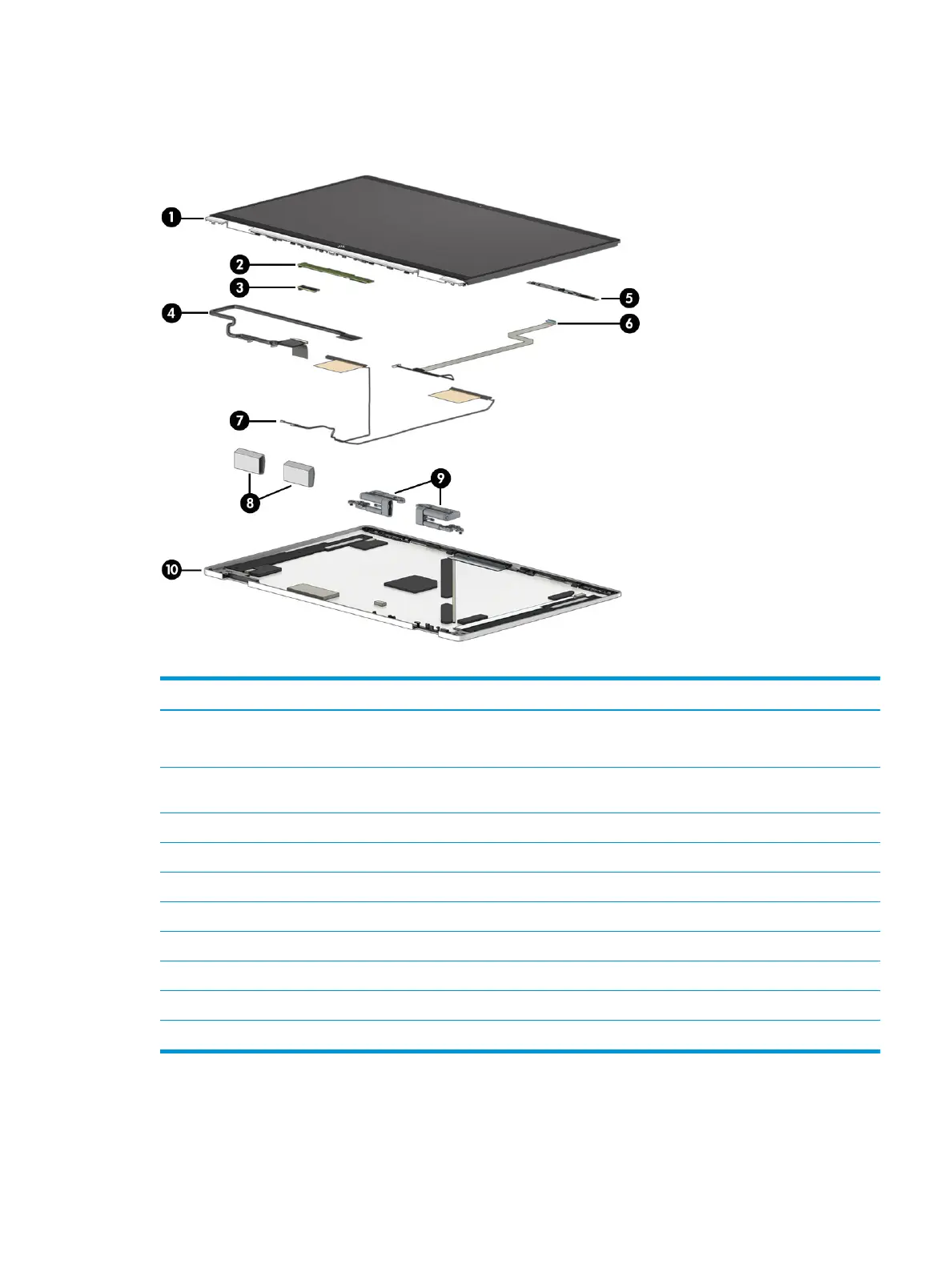

To identify the display assembly subcomponents, use this illustration and table.
Table 3-2 Display component descriptions and part numbers
Item Component Spare part number
(1) Display panel
NOTE: Display panel adhesive is available as spare part number M00311-001.
M00317-001
(2) Touch board not available as a
spare part
(3) G-sensor board M00316-001
(4) Display cable M00309-001
(5) Camera module M00442-001
(6) Camera cable M00310-001
(7) Wireless antenna cables M00304-001
(8) Hinge covers (include rubber inserts) M00318-001
(9) Hinges (left and right) M00312-001
(10) Display back cover (includes antennas) M00305-001
Miscellaneous parts
To identify the miscellaneous parts, use this table.
Display assembly subcomponents 13
