Table 5-13 USB door description and part number
Description Spare part number
USB door M01320-001
Before removing the USB door, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the bottom cover (Bottom cover on page 21).
3. Disconnect the battery cable from the system board (see Battery on page 23).
4. Remove the system board (see System board on page 33).
Remove the USB door:

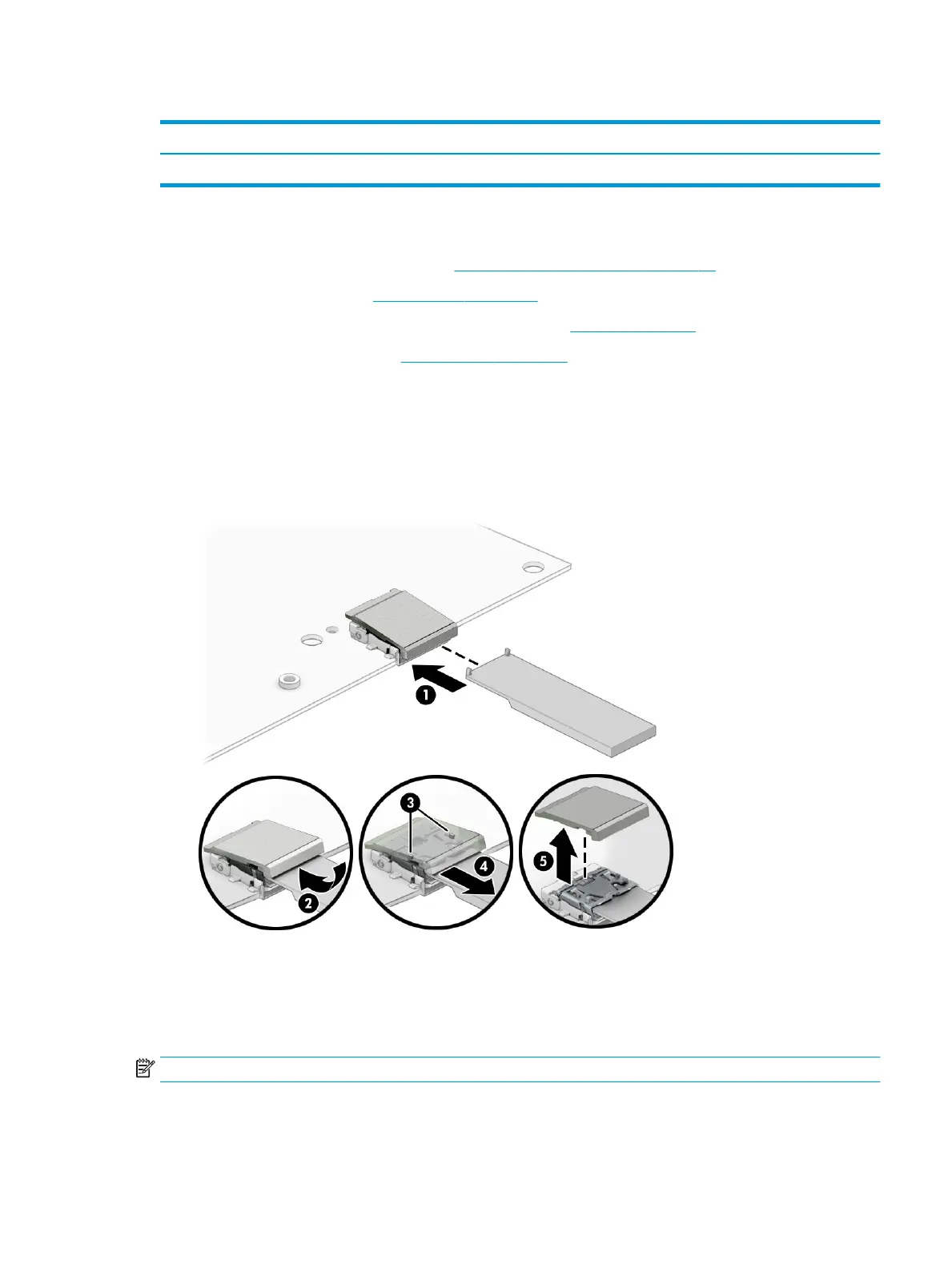

1. Insert a removal tool (1) under the USB door (2).
2. Align the posts on the tool with the slots on the underside of the door (3), and then pull the tool away
from the door to release it (4).
3. Remove the USB door from the computer (5).
Reverse this procedure to install the USB door.
Display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
NOTE: Display assemblies are oered as spare parts only at a subcomponent level.
Before removing the display panel, follow these steps:
Component replacement procedures 37
