1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the bottom cover (Bottom cover on page 21).
3. Remove the battery (see Battery on page 23).
4. Remove the heat sink (see Heat sink on page 28).
Remove the display assembly:

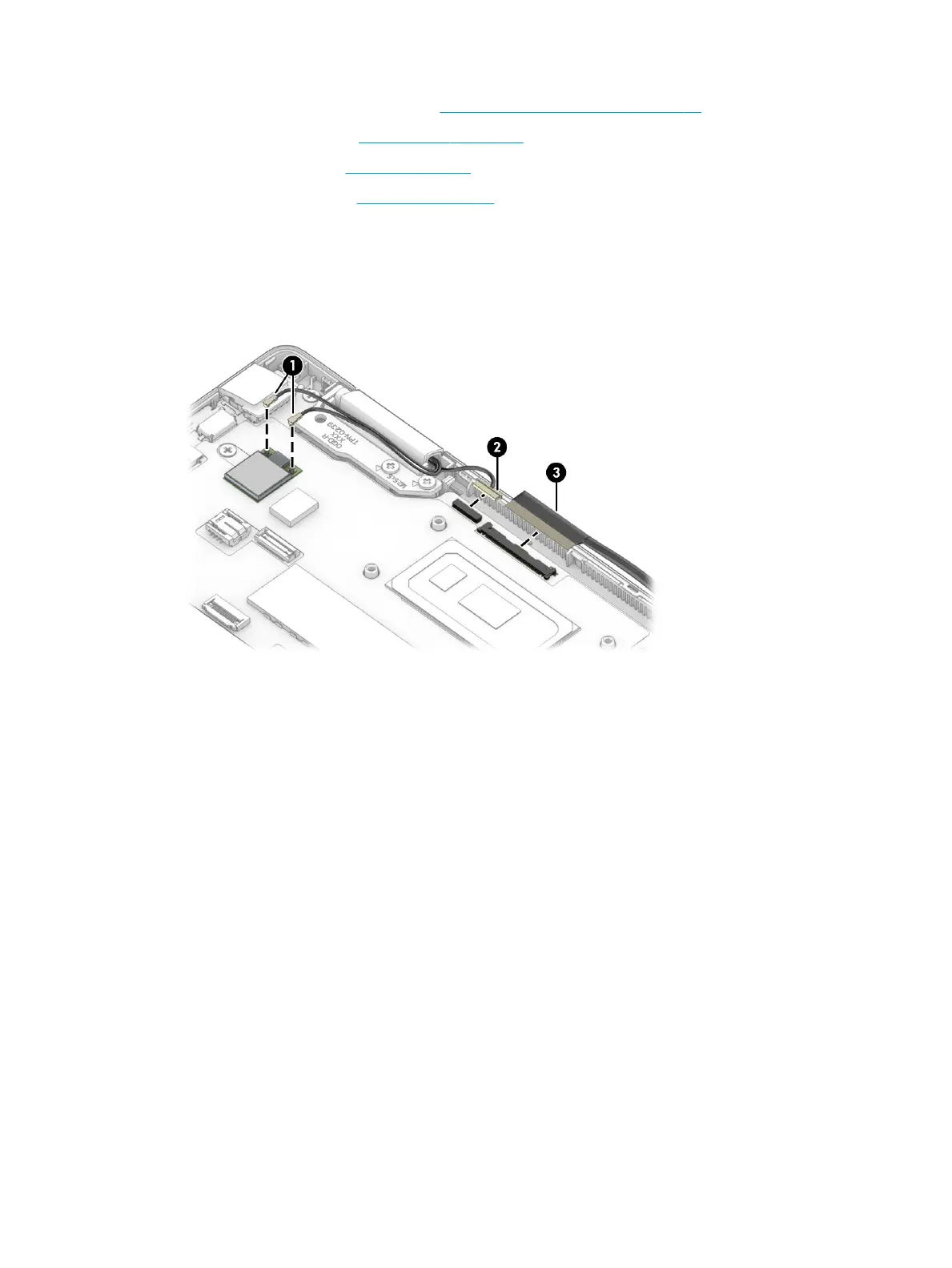

1. Disconnect the antenna cables from the integrated WLAN module (1).
2. Disconnect the touch cable from the system board (2).
3. Disconnect the display cable from the system board (3).
4. Remove the four Phillips M2.5 × 5.0 screws (1) that secure the display to the computer.
5. Open the computer to open the hinges (2).
