HP Chromebook x360 14c User Manual

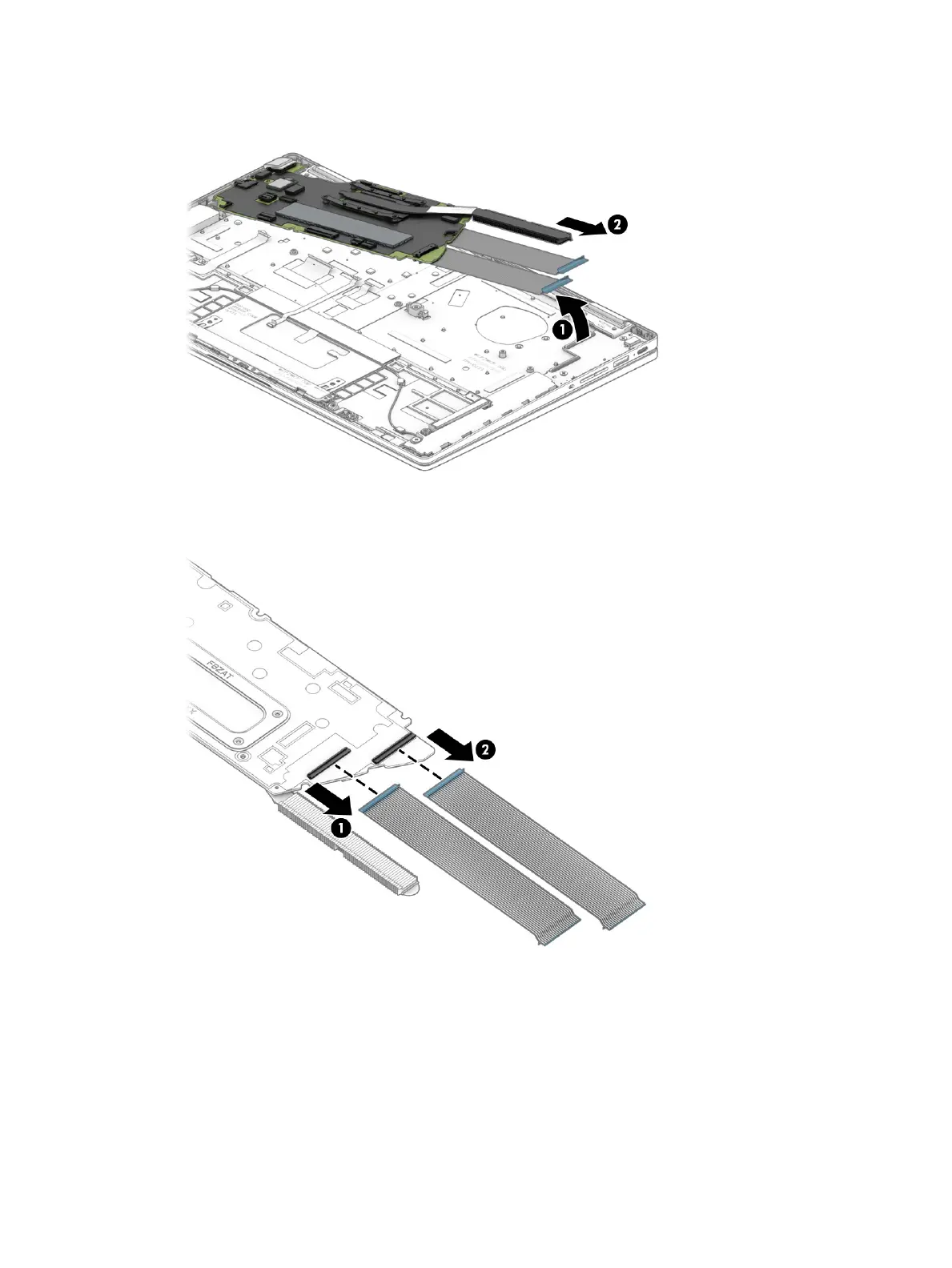

3. Lift the right side of the system board (1), and then pull the board up and to the right to remove it from
the computer (2).
4. If you need to remove the USB cables, disconnect the bottom (1) and top (2) cables from the system
board.
Reverse this procedure to install the system board.
USB door
To remove the USB door, use this procedure and illustration.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP Chromebook x360 14c Specifications

General

Display Size	14 inches
Resolution	1920 x 1080 pixels
Processor	Intel Core i3-10110U
RAM	8 GB
Storage	64 GB eMMC
Operating System	Chrome OS
Graphics	Intel UHD Graphics
Convertible	Yes
Color	Mineral Silver
Battery	3-cell, Li-ion
Display Type	IPS
Ports	2 x USB-C, 1 x USB-A, 1 x headphone/microphone combo
Wireless	Bluetooth 5.0
