2. Thoroughly clean the thermal material from the surfaces of the heat sink and the system board
components each time the heat sink is removed. Replacement thermal material is included with the heat

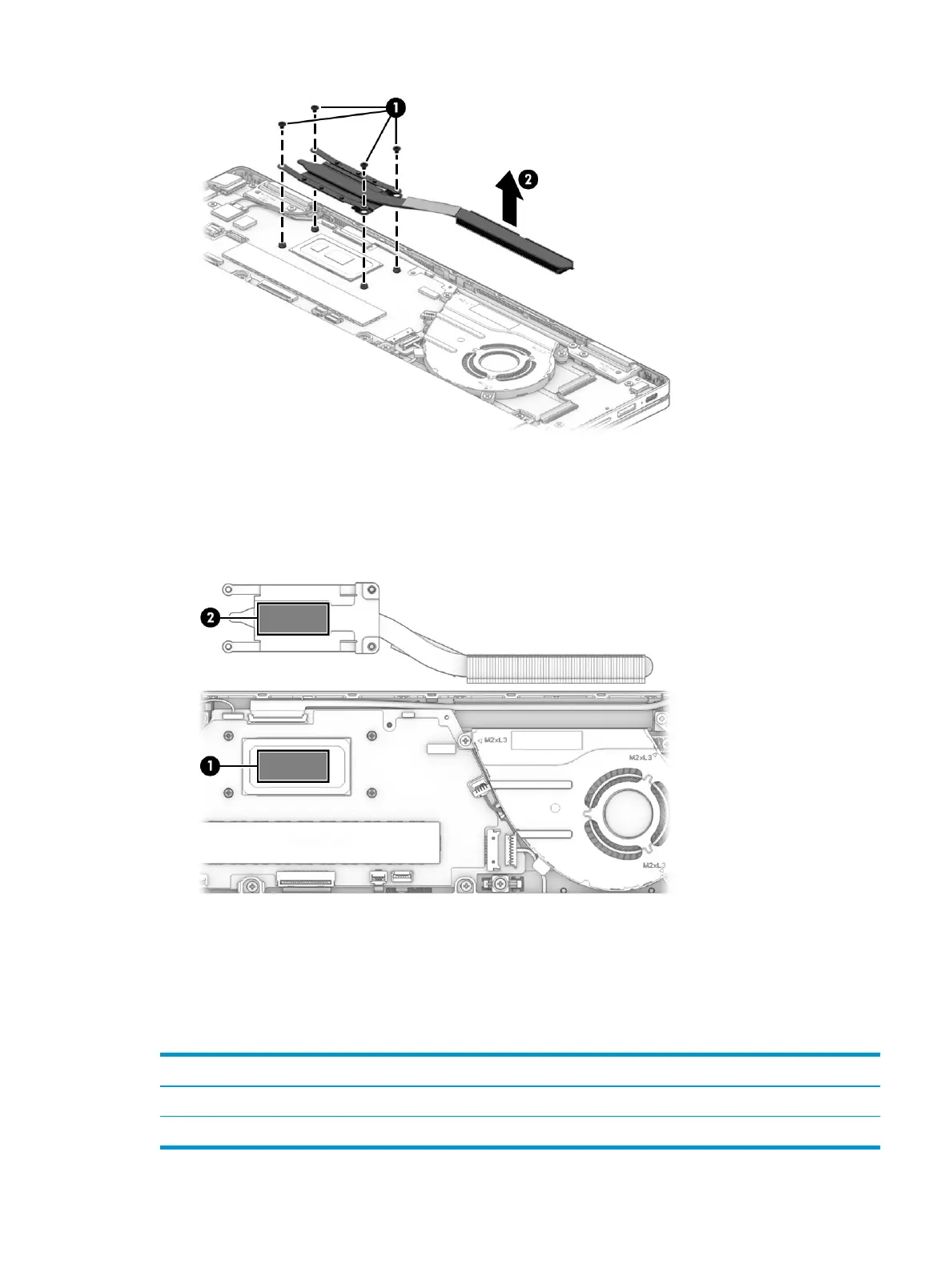

sink and system board spare part kits. The following illustration shows the replacement thermal
material locations.
Thermal paste is used on the system board component (1) and on the heat sink area (2) that services it.
Reverse this procedure to install the heat sink.
USB board
To remove the USB board, use this procedure and illustration.
Table
5-8 USB board description and part number
Description Spare part number
USB board M00313-001
USB board cable M00307-001
Component replacement procedures 29
