Stand
Description Spare part number
Stand 643141-001
The stand is secured with four screws.
To remove the stand:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3. Remove the port cover (see
Port Cover on page 45).
4. In the order indicated by the numbers stamped into the stand bracket, remove the four Phillips
screws (1) that secure the stand to the computer.
5.
Slide the stand up (toward the logo) about 1 inch (2.5 cm) (2), tilt the stand base upward, and
then slide it back (away from the logo) (3) to lift it out of the computer.

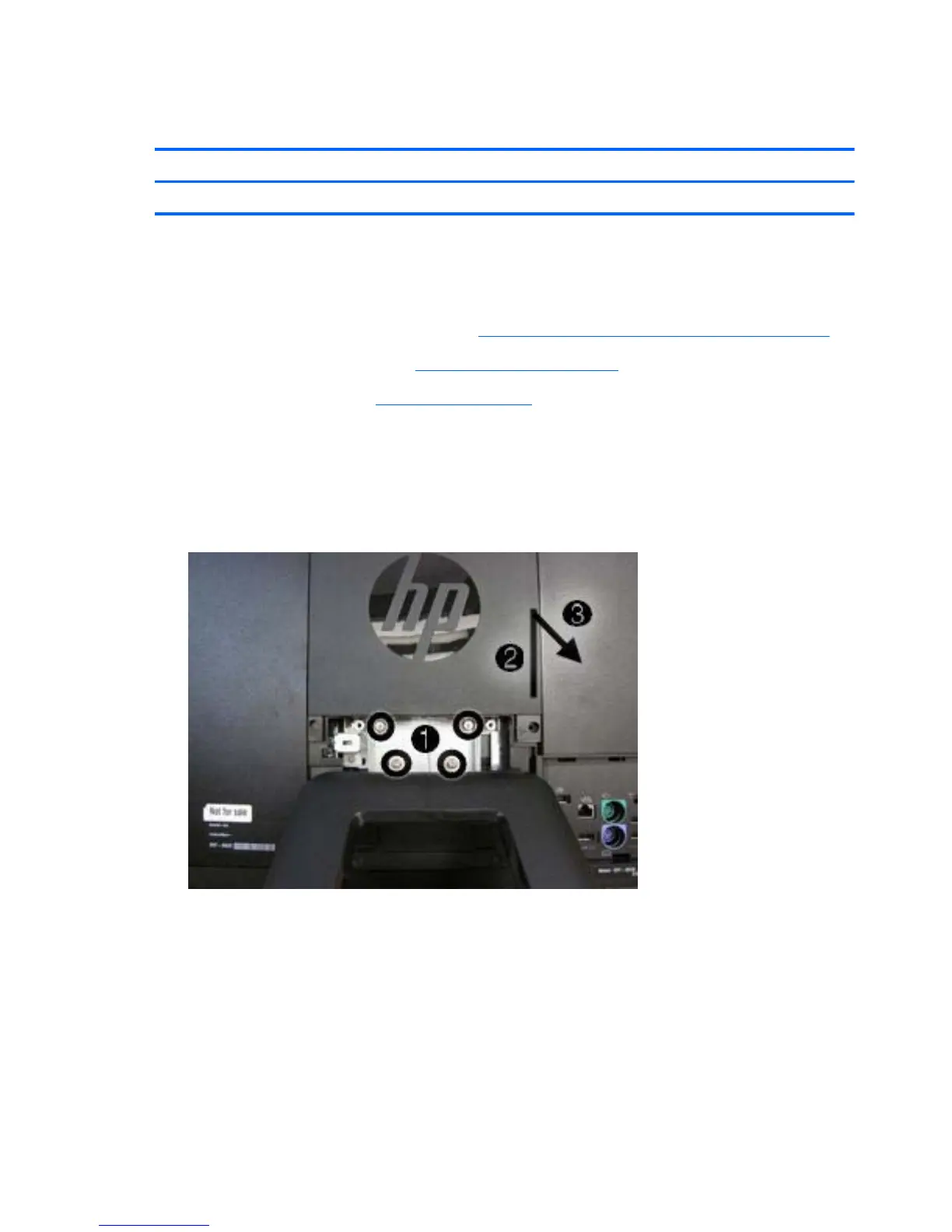

Figure 7-3 Removing the stand
To replace the stand, reverse the removal procedures.
46 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
