Optical Drive
NOTE: Optical drive spare part kits do not include a replacement bracket. Reuse the existing bracket.
Description Spare part number
8X DVD±RW SuperMulti DL Drive with LightScribe 619238-001
4X DVD±RW SuperMulti DL Drive with LightScribe 619239-001
8X DVD±RW SuperMulti DL Drive with LightScribe, HF 615944-001
8X DVD±RW SuperMulti DL drive, non-LightScribe 657959-001
8X DVD-ROM drive 637998-001
Optical drive bezel 654297-001
Drive cover 643142-001
The optical drive is located under the drive cover on the left side of the computer (when viewed from
behind). It is secured with one screw.

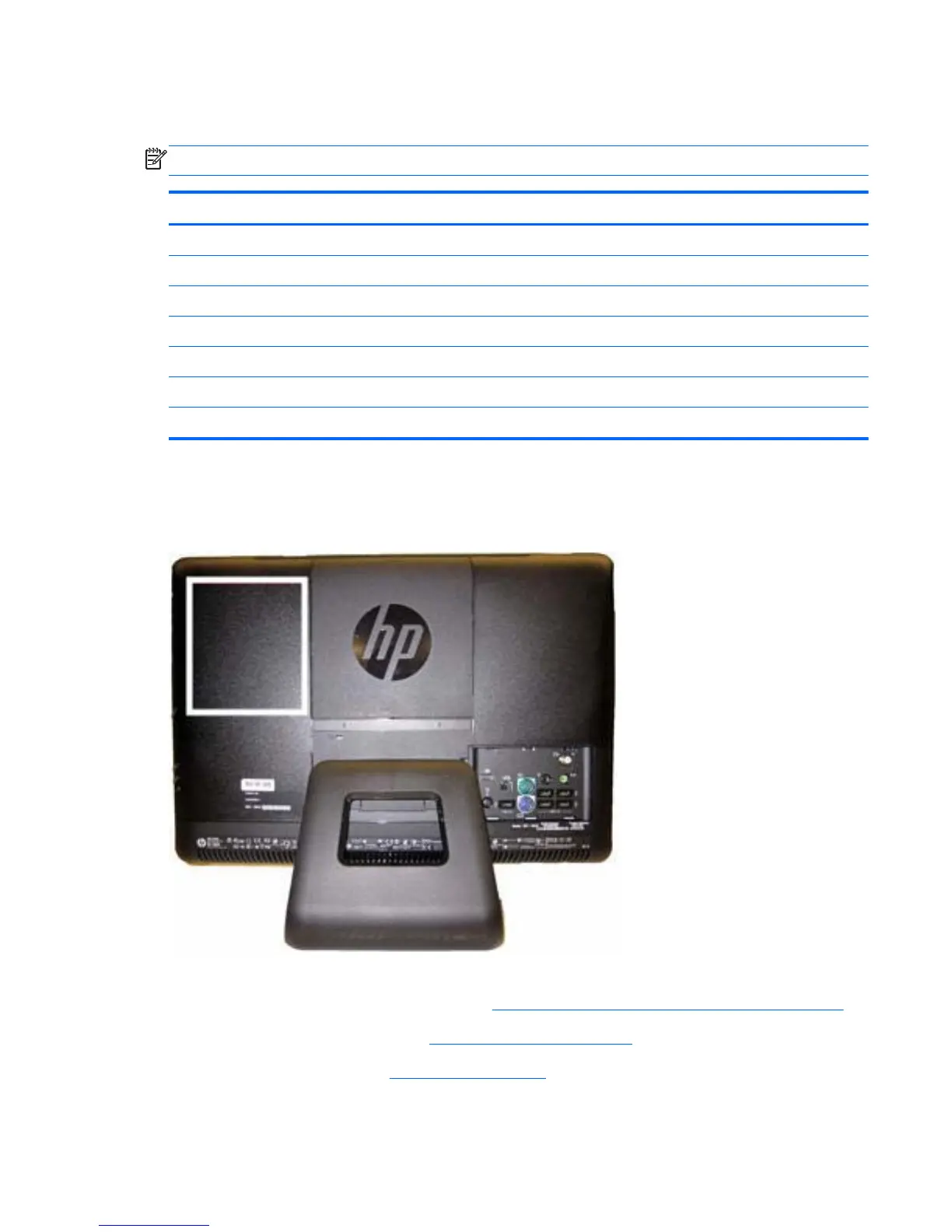

Figure 7-4 Optical drive location
To remove the optical drive:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3. Remove the port cover (see
Port Cover on page 45).
Optical Drive
47
