Speakers
Description Spare part number
Speaker, left 644382-001
Speaker, right 644383-001
The speakers are located at the bottom of the computer. Two separate speakers are each secured by
two screws. The left speaker connects to the right speaker, and the right speaker connects to the system
board.

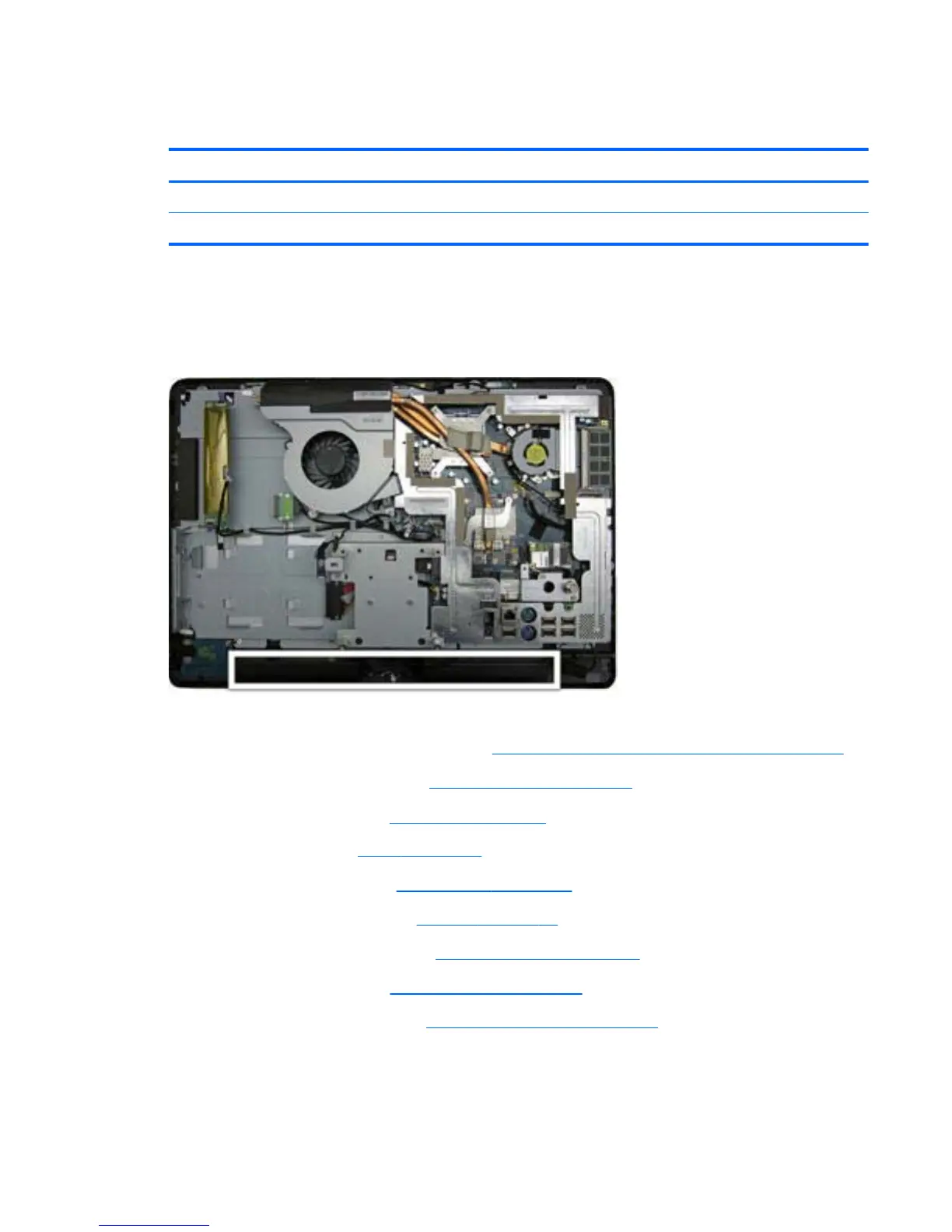

Figure 7-49 Speaker location
To remove the speakers:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3. Remove the port cover (see
Port Cover on page 45).
4.
Remove the stand (see
Stand on page 46).
5. Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
7. Remove the upper rear panel (see
Upper Rear Panel on page 55).
8. Remove the I/O panel (see
Rear I/O Cover on page 67).
9. Remove the outer/left panel (see
Outer/Left Rear Panel on page 75).
Speakers
91
