Bluetooth Module
Description Spare part number
Bluetooth module 617047-001
Bluetooth/USB cable 643161-001
The Bluetooth module is located at the top of the computer to the right of the webcam module. The
Bluetooth module is secured in a plastic holder and has one cable.

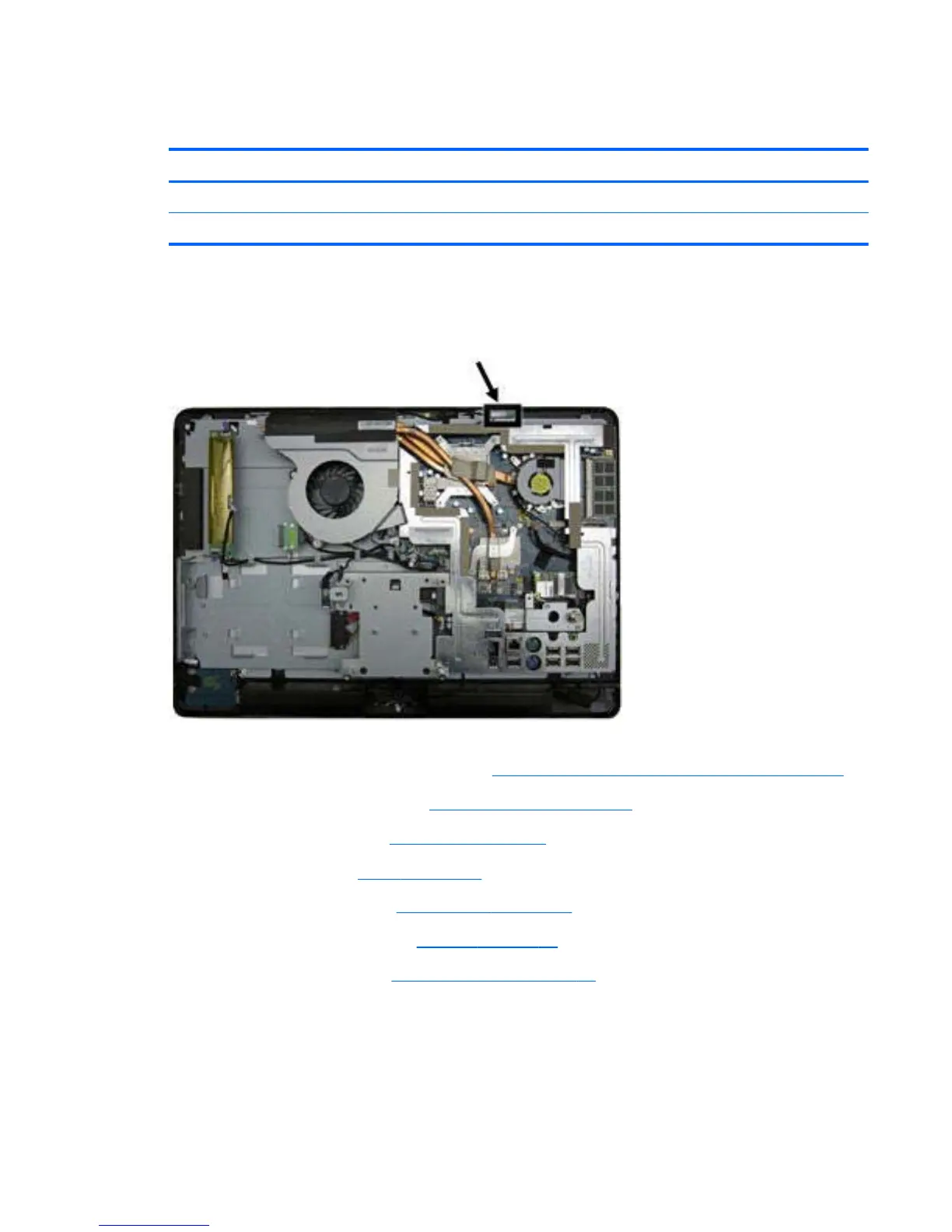

Figure 7-19 Bluetooth module location
To remove the Bluetooth module:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3. Remove the port cover (see
Port Cover on page 45).
4. Remove the stand (see
Stand on page 46).
5.
Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
7. Remove the rear panel (see
Upper Rear Panel on page 55).
8. Remove the screw (1) that secures the Bluetooth module to the computer.
9. Lift the plastic lever on the holder (2), and the slide the Bluetooth module from the holder (3).
Bluetooth Module
59
