Cable Connector
The cable connector is located toward the bottom, right side of the computer. It is secured with two
screws and had one antenna cable that also connects to the TV tuner module.

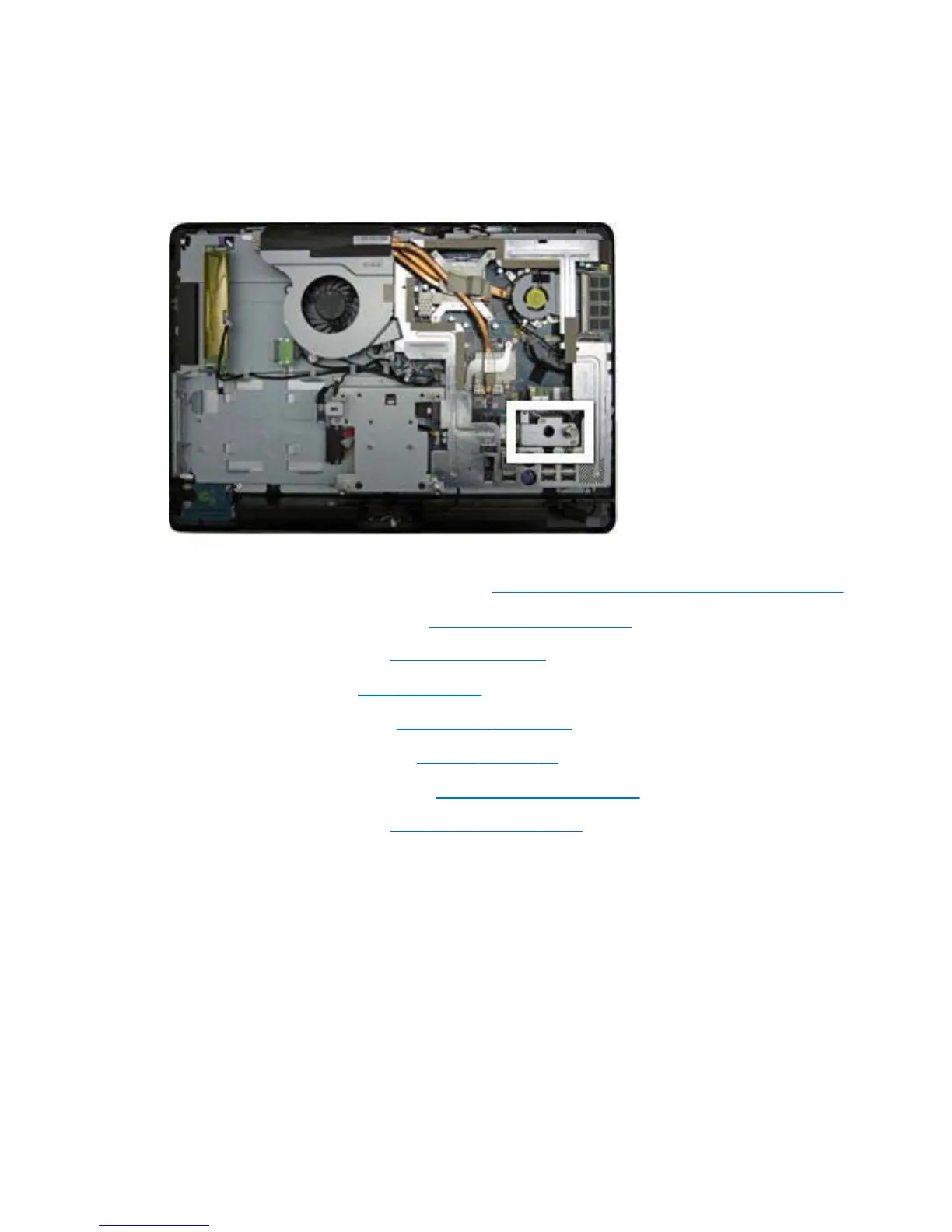

Figure 7-29 Cable connector location
To remove the cable connector:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3.
Remove the port cover (see
Port Cover on page 45).
4. Remove the stand (see
Stand on page 46).
5. Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
7. Remove the upper rear panel (see
Upper Rear Panel on page 55).
8. Remove the I/O panel (see
Rear I/O Cover on page 67).
9. Remove the two screws (1) that secure the connector to the computer.
10. Disconnect the antenna cable from the TV tuner module (2).
Cable Connector
71
