TV Tuner Module
Description Spare part number
HP TV tuner 613990-001
TV tuner module for use in the Asia-Pacific region 621424-001
TV tuner module for use in Hong Kong and the People’s Republic of China 621423-001
The TV tuner module is located on the right side of the computer just above the I/O panel. The module
is secured with one screw and has one antenna.

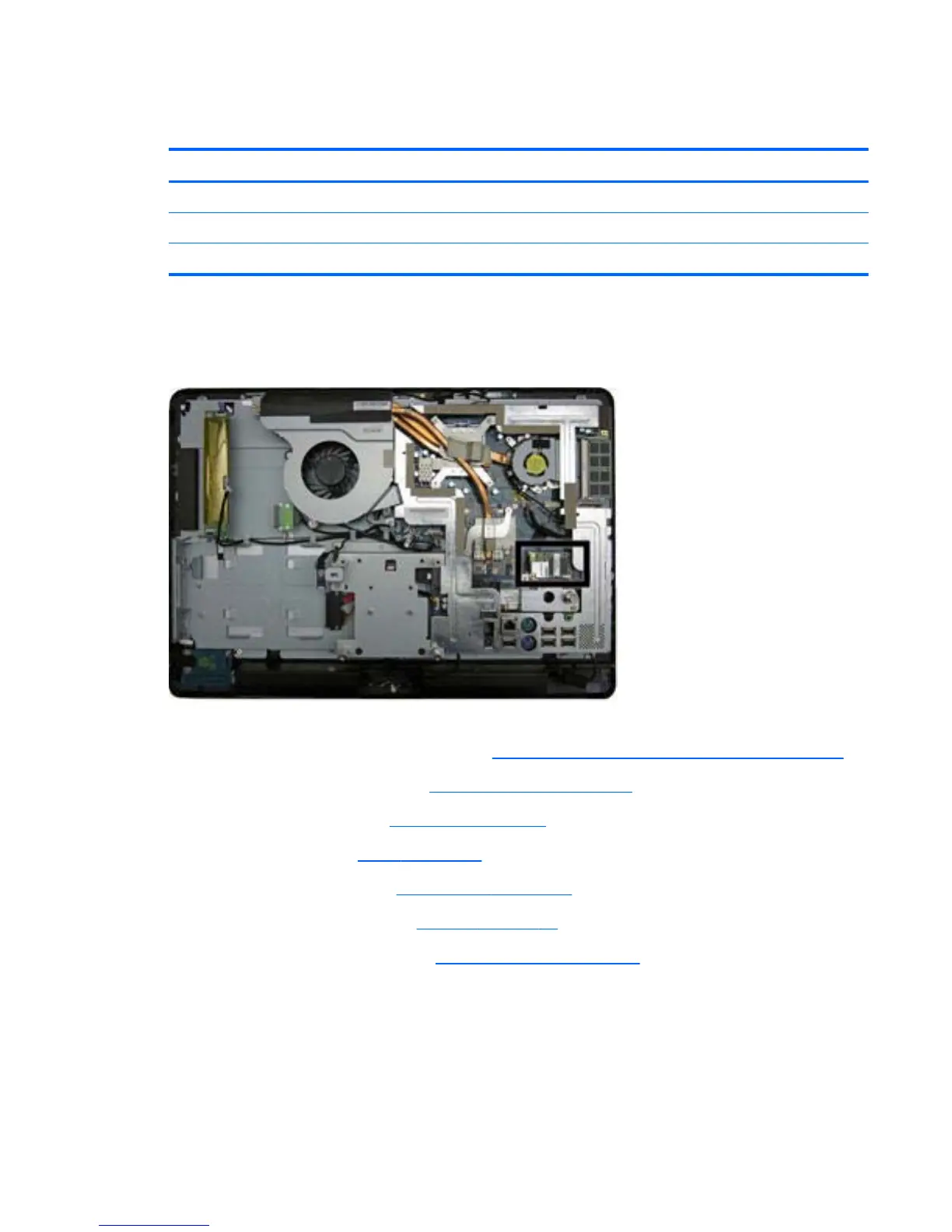

Figure 7-27 TV tuner location
To remove the TV tuner module:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3.
Remove the port cover (see
Port Cover on page 45).
4. Remove the stand (see
Stand on page 46).
5. Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
7. Remove the upper rear panel (see
Upper Rear Panel on page 55).
8. Disconnect the antenna cable from the module (1).
9. Remove the screw (2) that secures the module to the computer.
TV Tuner Module
69
