Hard Drive
NOTE: Hard drive spare parts kits do not include a replacement hard drive cage. Reuse the existing
cage.
Description Spare part number
1000-GB 621418-001
500-GB 621421-001
320-GB 621420-001
250-GB 621419-001
80-GB solid-state drive 607817-001
Drive cover 643142-001
The hard drive is located under the drive cover on the left side of the computer (when viewed from
behind). The drive is secured with one captive screw and is housed in a removable cage.

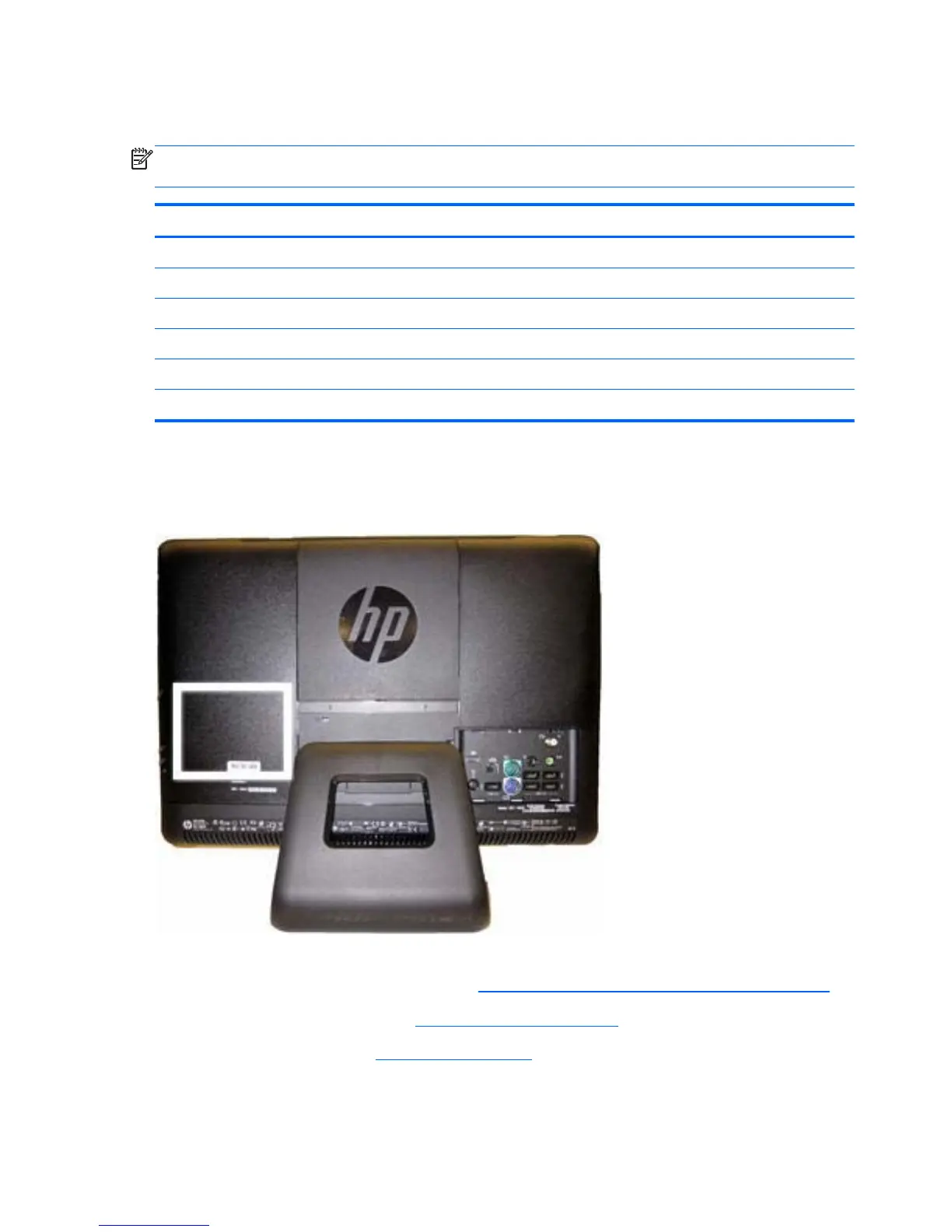

Figure 7-8 Hard drive location
To remove the hard drive:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3. Remove the port cover (see
Port Cover on page 45).
50 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
