7.
If you need to remove the drive bracket from the drive, remove the two screws (1) that secure the
bracket to the drive, and then remove the bracket from the drive (2).
NOTE: Drive appearance may vary.

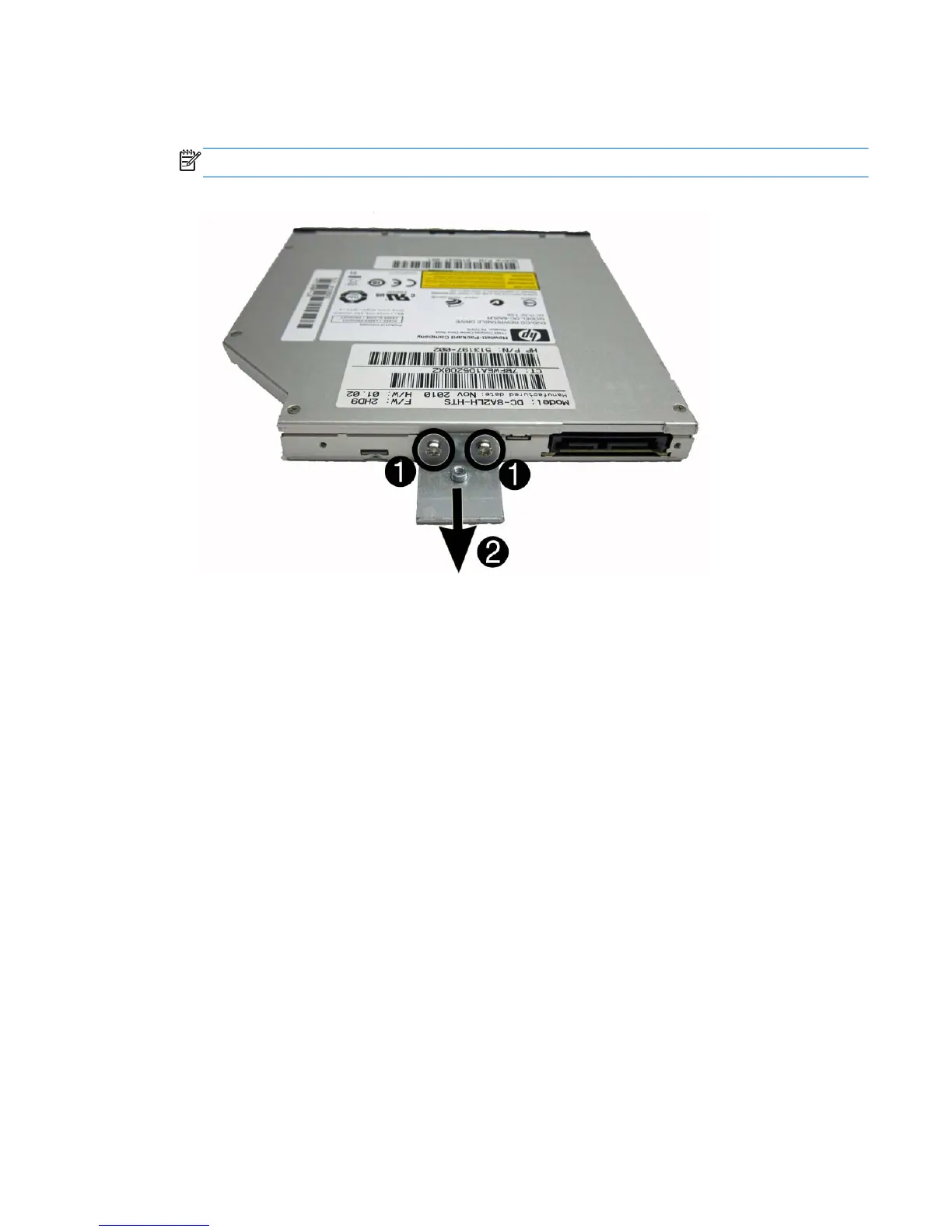

Figure 7-7 Removing the optical drive bracket
To install an optical drive, reverse the removal procedures.
Optical Drive
49
