Upper Rear Panel
The upper rear panel is secured with three screws. Removing it allows access to the fans, heat sink,
processor, and optional TV tuner.

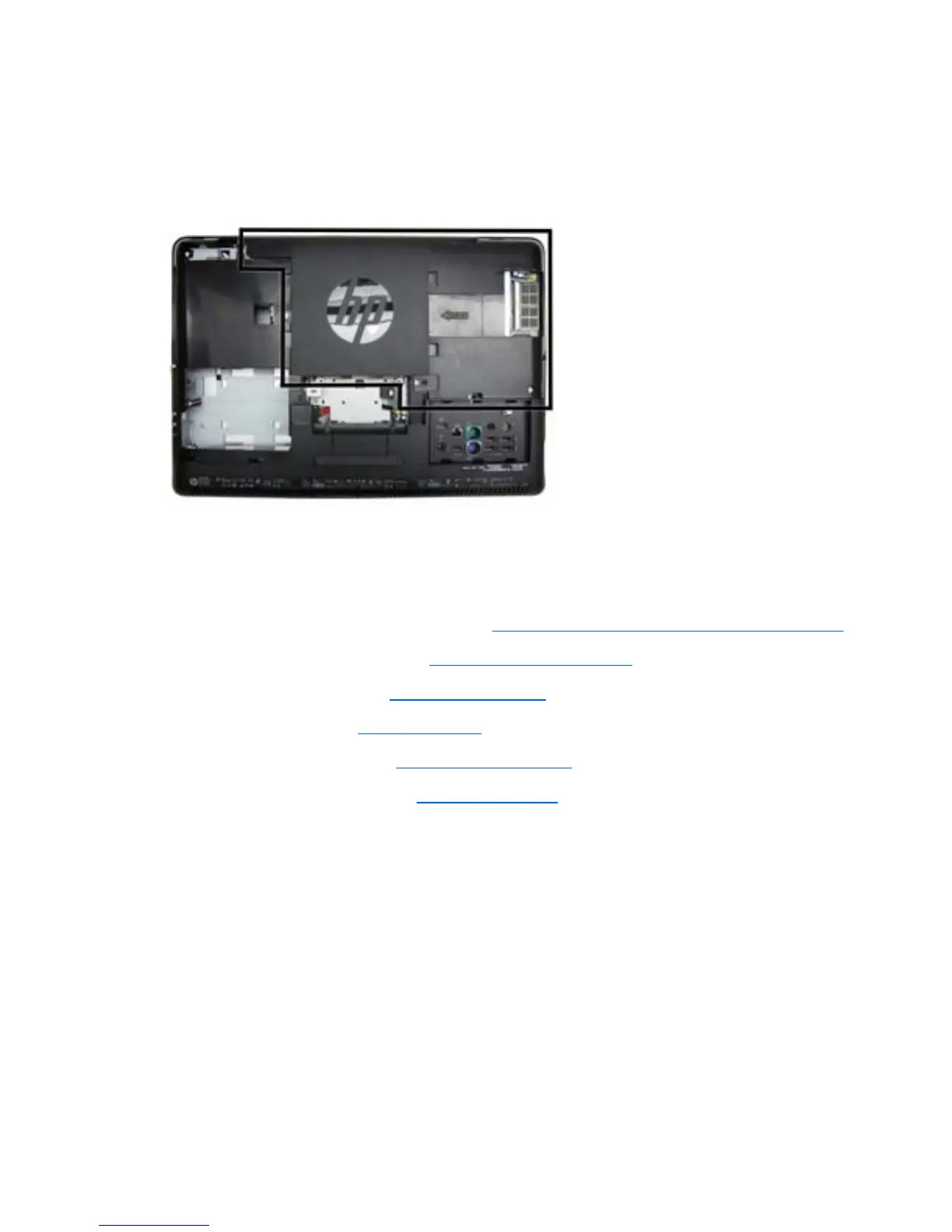

Figure 7-15 Upper rear panel location
To remove the upper rear panel:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 43).
2. Remove the small rear cover (see
Small Rear Cover on page 44).
3.
Remove the port cover (see
Port Cover on page 45).
4. Remove the stand (see
Stand on page 46).
5.
Remove the drive cover (see
Optical Drive on page 47).
6. Remove the memory cover (see
Memory on page 53).
Upper Rear Panel
55
