4.

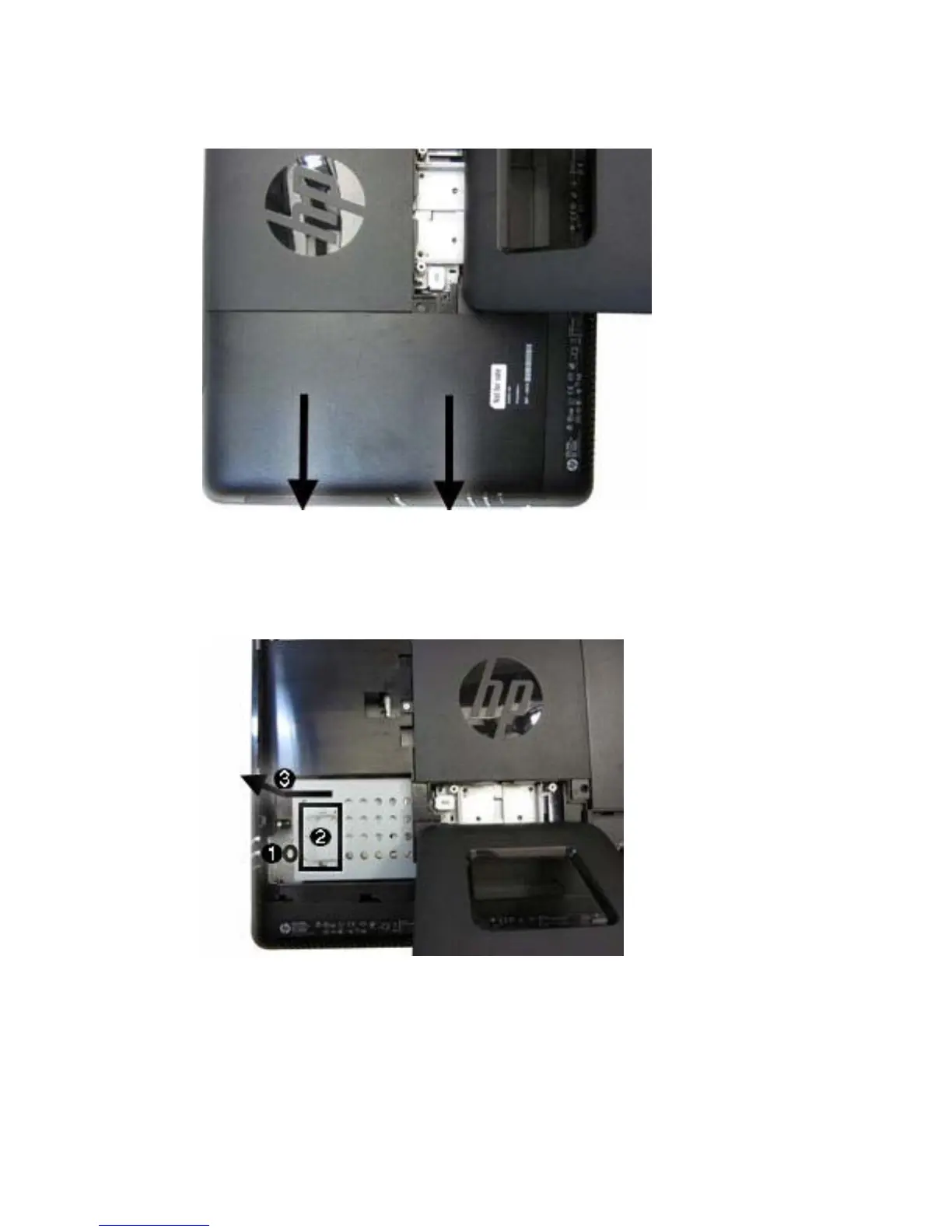

Slide the drive cover off the computer.
Figure 7-9 Removing the drive cover
5. Loosen the captive screw (1) that secures the drive to the computer.
6. Using the drive cage handle (2), slide the cage away from the computer, and then lift the drive
out of the computer (3).
Figure 7-10 Removing the hard drive
Hard Drive
51
