7.
To remove the hard drive from the hard drive cage, remove the four Phillips screws that secure the
drive to the cage (1), and then slide the drive out of the cage (2).

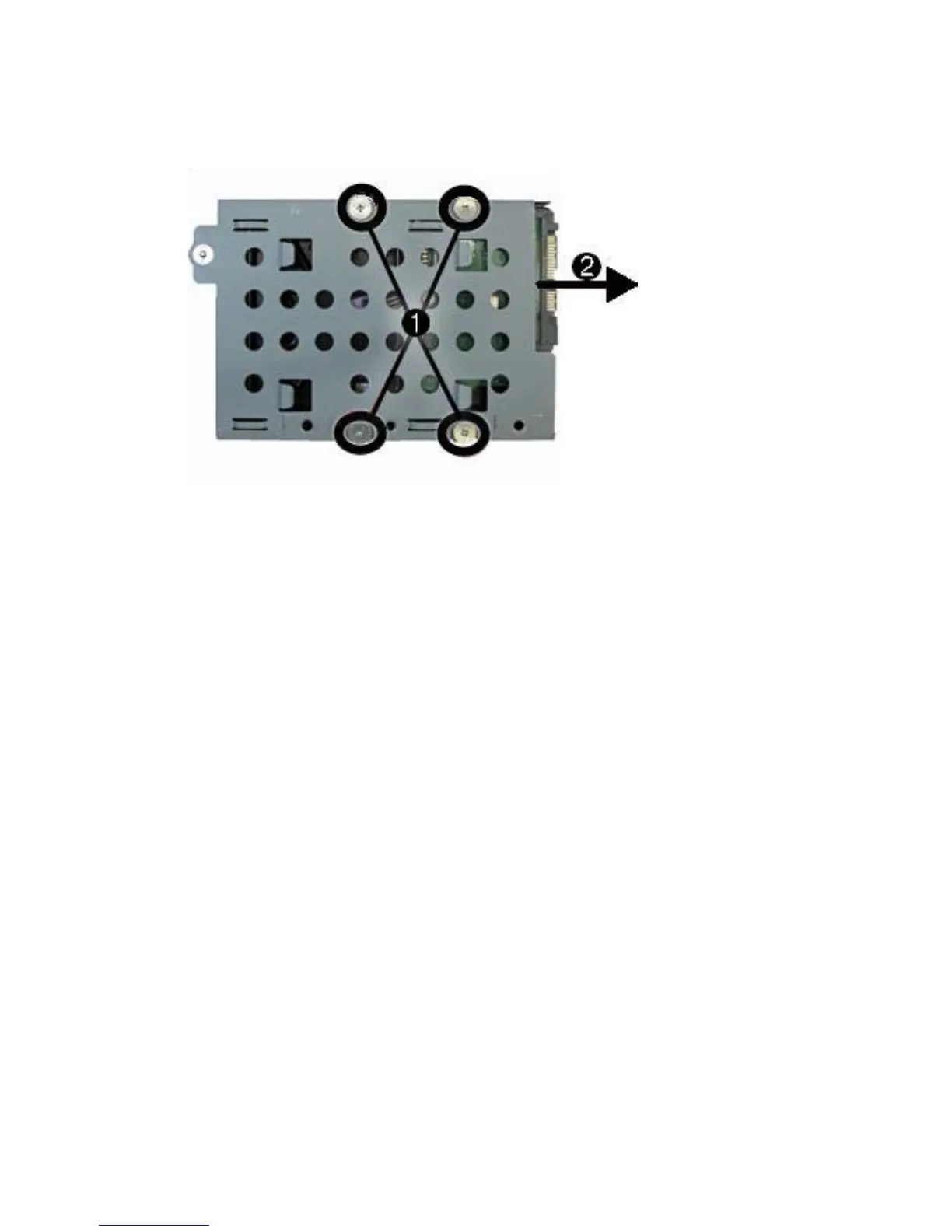

Figure 7-11 Removing the hard drive from the hard drive cage
To replace the hard drive, reverse the removal procedures.
52 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
