10.
Lift the Bluetooth module as much as the cable allows, remove the tape from the connector on the
module (4), and then unplug the cable from the module.

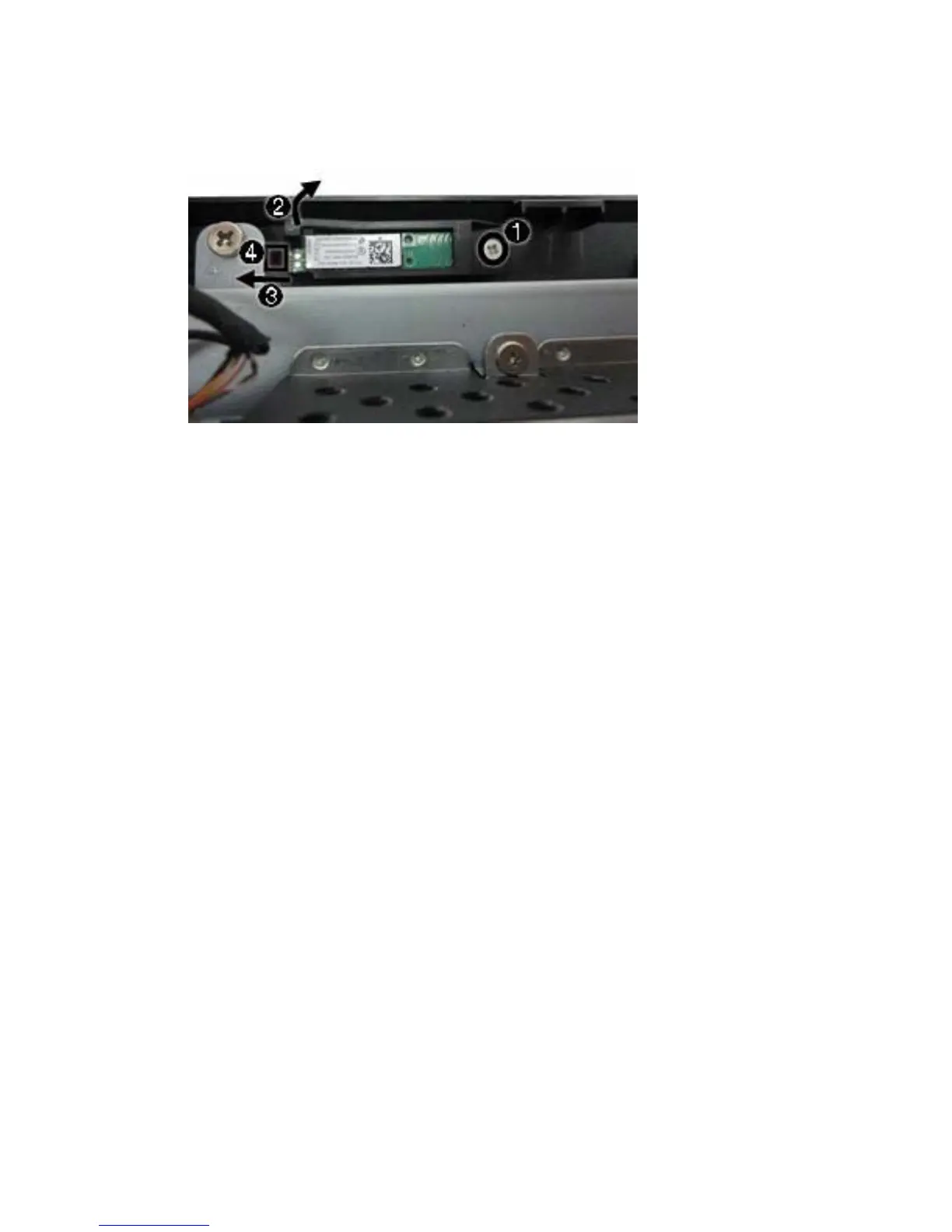

Figure 7-20 Removing the Bluetooth module
To install a Bluetooth module, reverse the removal procedures.
60 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
