11.

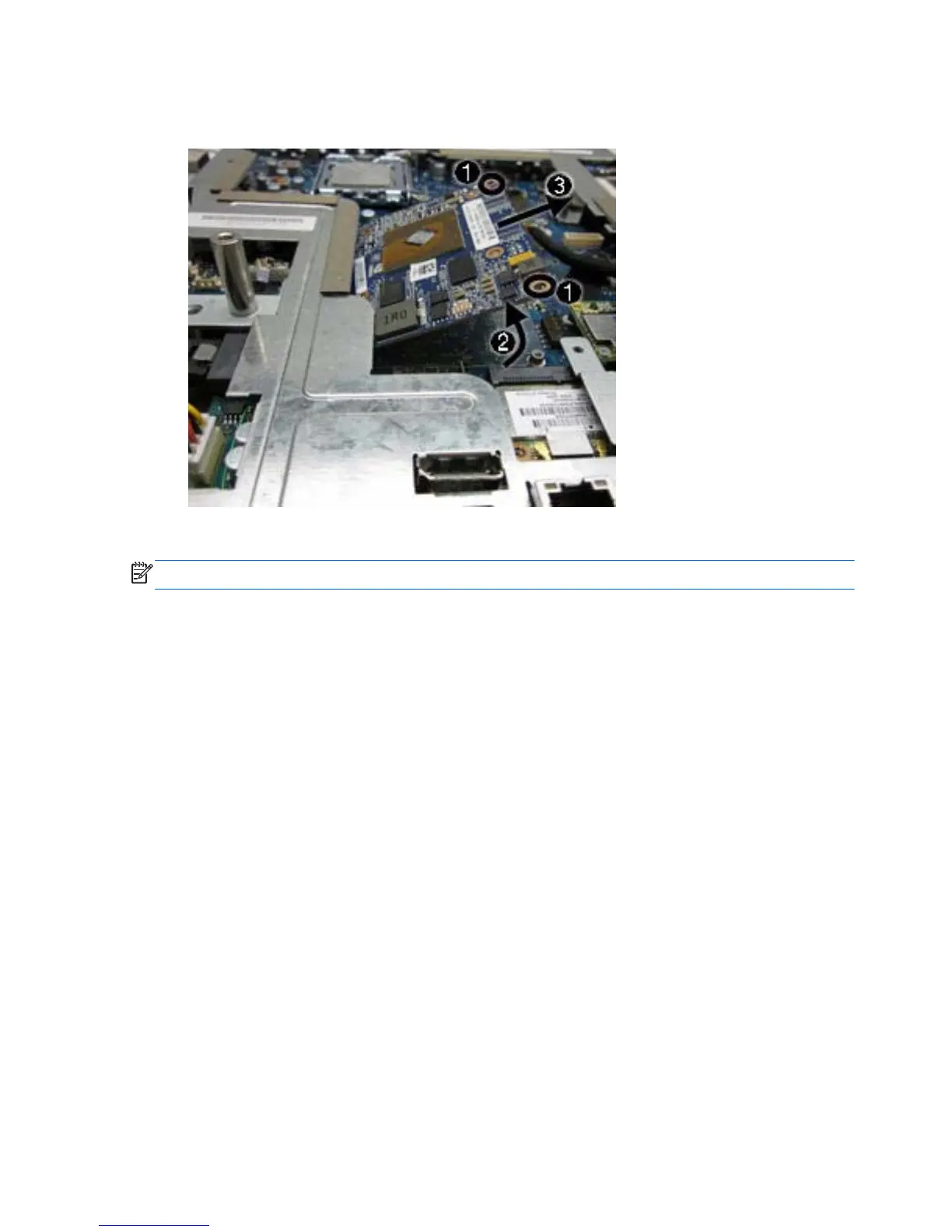

Rotate the outer side of the board upward (2), and then remove it at an angle (3).
Figure 7-24 Removing the graphics board
To install the graphics board, reverse the removal procedures.
NOTE: Graphics boards are designed with a notch to prevent incorrect insertion.
