11.
Lift the board as far as the cables allow, and then disconnect the two cables from the board (3).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.

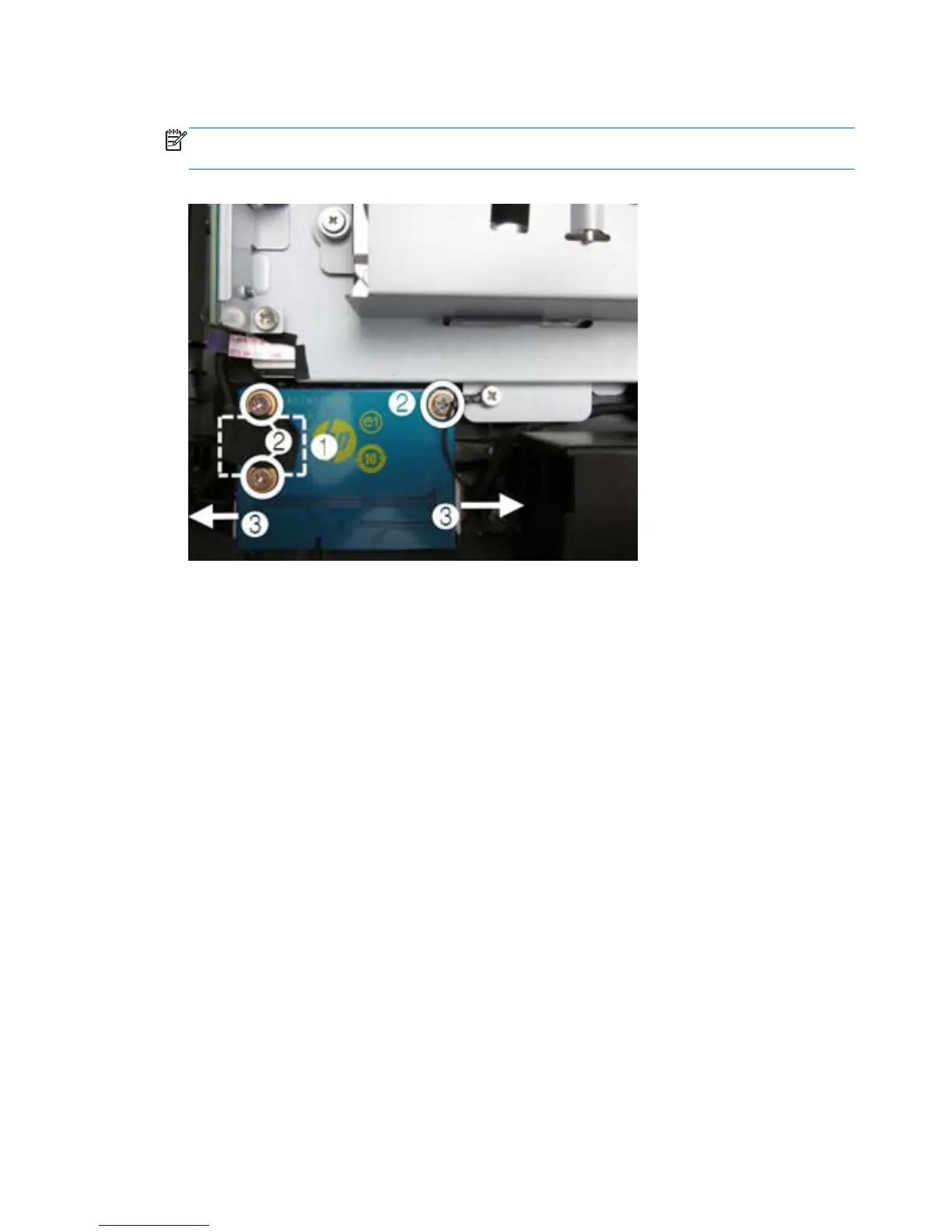

Figure 7-38 Removing the power button board
12. Remove the board from the computer.
To install the power button board, reverse the removal procedures.
80 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
