Lift the board to gain easier access to the connector, and then disconnect the cable from the board
(2).
NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull on
the wires.

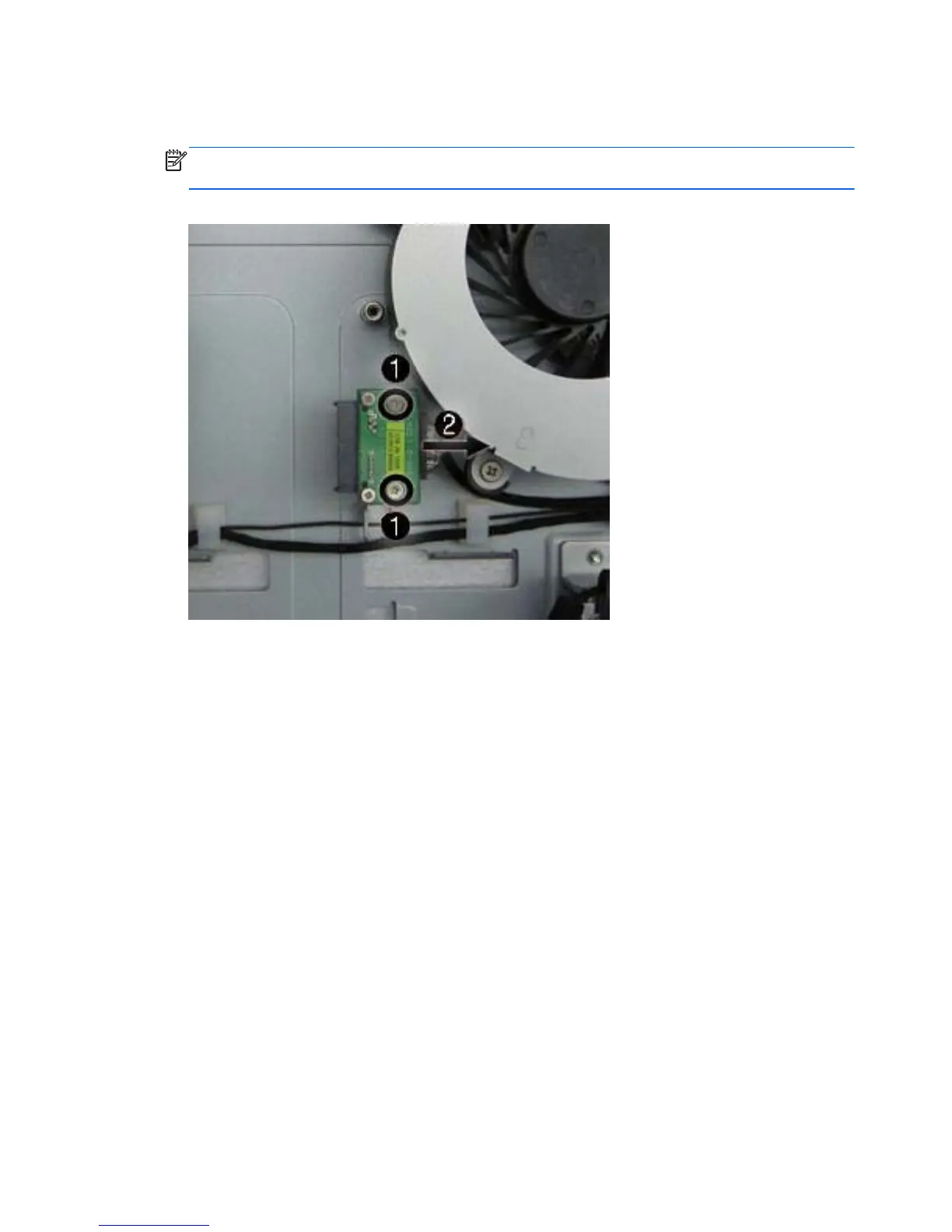

Figure 7-42 Removing the optical drive connector board
12. Remove the board from the computer.
To install the optical drive connector board, reverse the removal procedures.
84 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
