12.
Remove the tape that secures the power cable to the computer, and then pull the cables through
the metal casing (3).

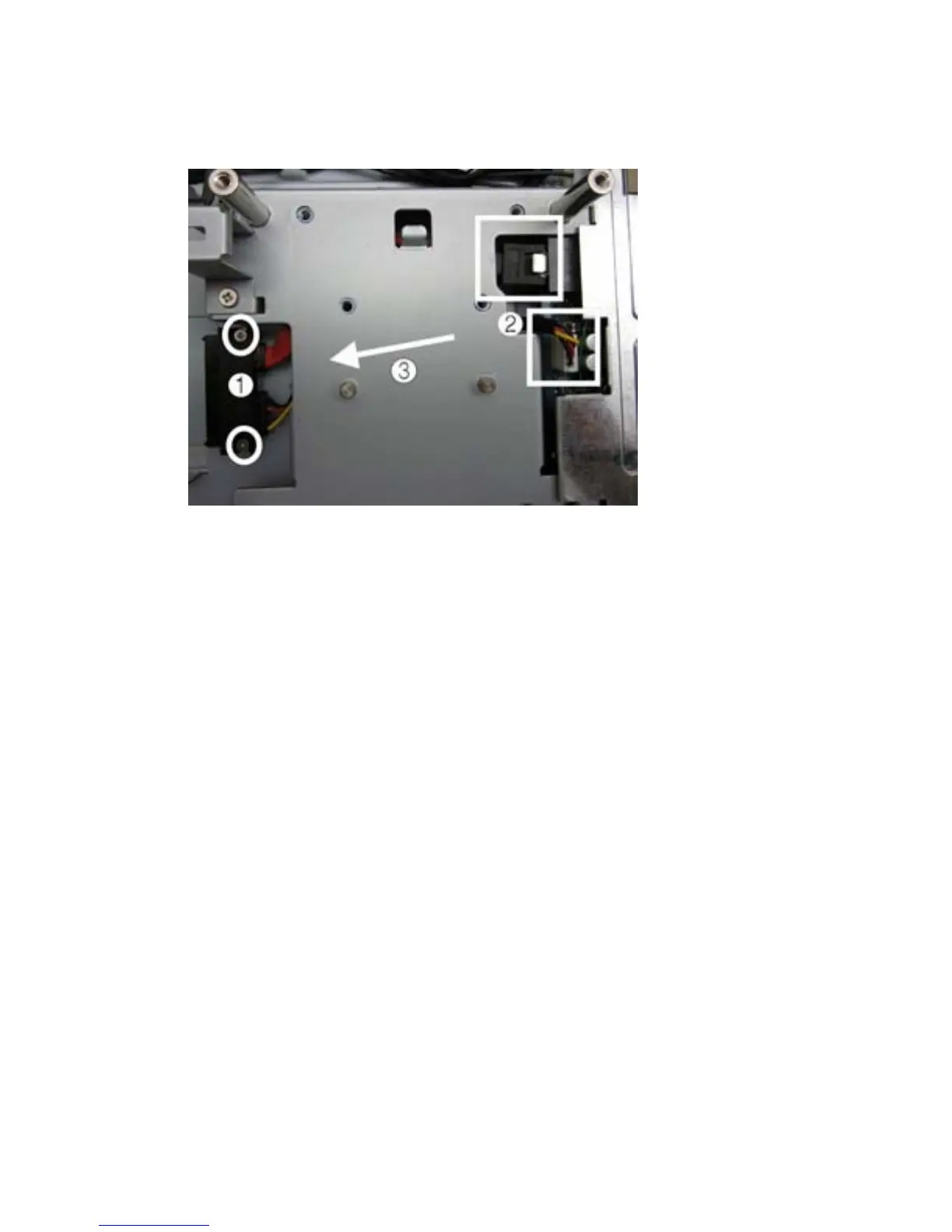

Figure 7-46 Removing the hard drive connector
13. Remove the hard drive connector from the computer.
To install the hard drive connector, reverse the removal procedures.
88 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
