HP Compaq nc6220 Maintenance And Service Guide

6–42 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the computer right-side up with the front panel
toward you.

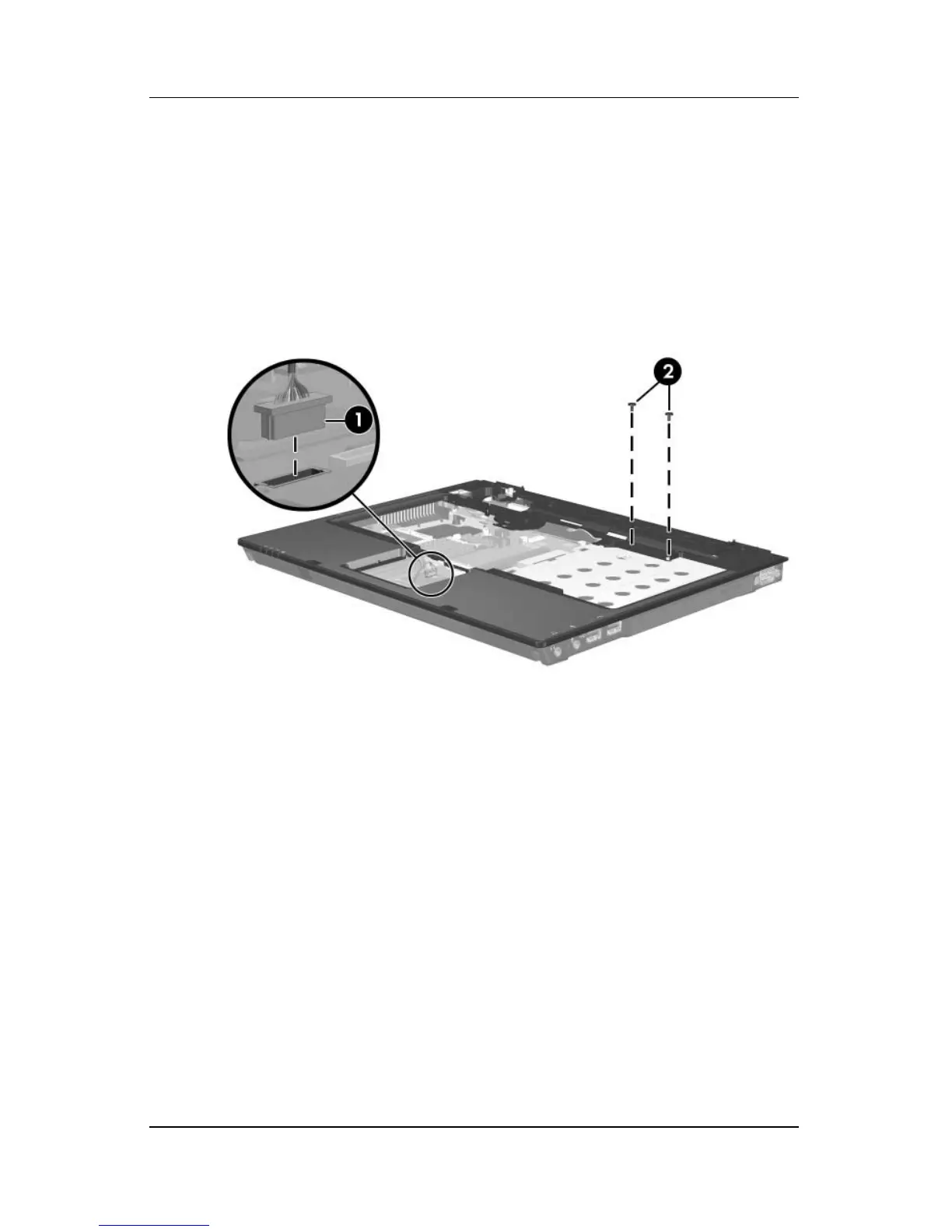

5. Disconnect the Bluetooth board cable 1 from the system
board.
6. Remove the two PM2.0×4.0 screws 2 that secure the top
cover to the computer.
Removing the Top Cover Screws, Part 2

HP Compaq nc6220 Specifications

General

Display	14.1-inch TFT
Maximum Memory	4 GB
Hard Drive Interface	ATA-100
Graphics	Intel Graphics Media Accelerator 900
Operating System	Windows XP Professional
Battery Life	Up to 4 hours
Processor	Intel Pentium M
Display Resolution	1024 x 768
Storage	40 GB
Networking	10/100/1000 Ethernet, 802.11b/g Wi-Fi
Ports	3 x USB 2.0, VGA, RJ-11, RJ-45, headphone/microphone jacks
Optical Drive	DVD-ROM
RAM	512 MB to 2 GB
