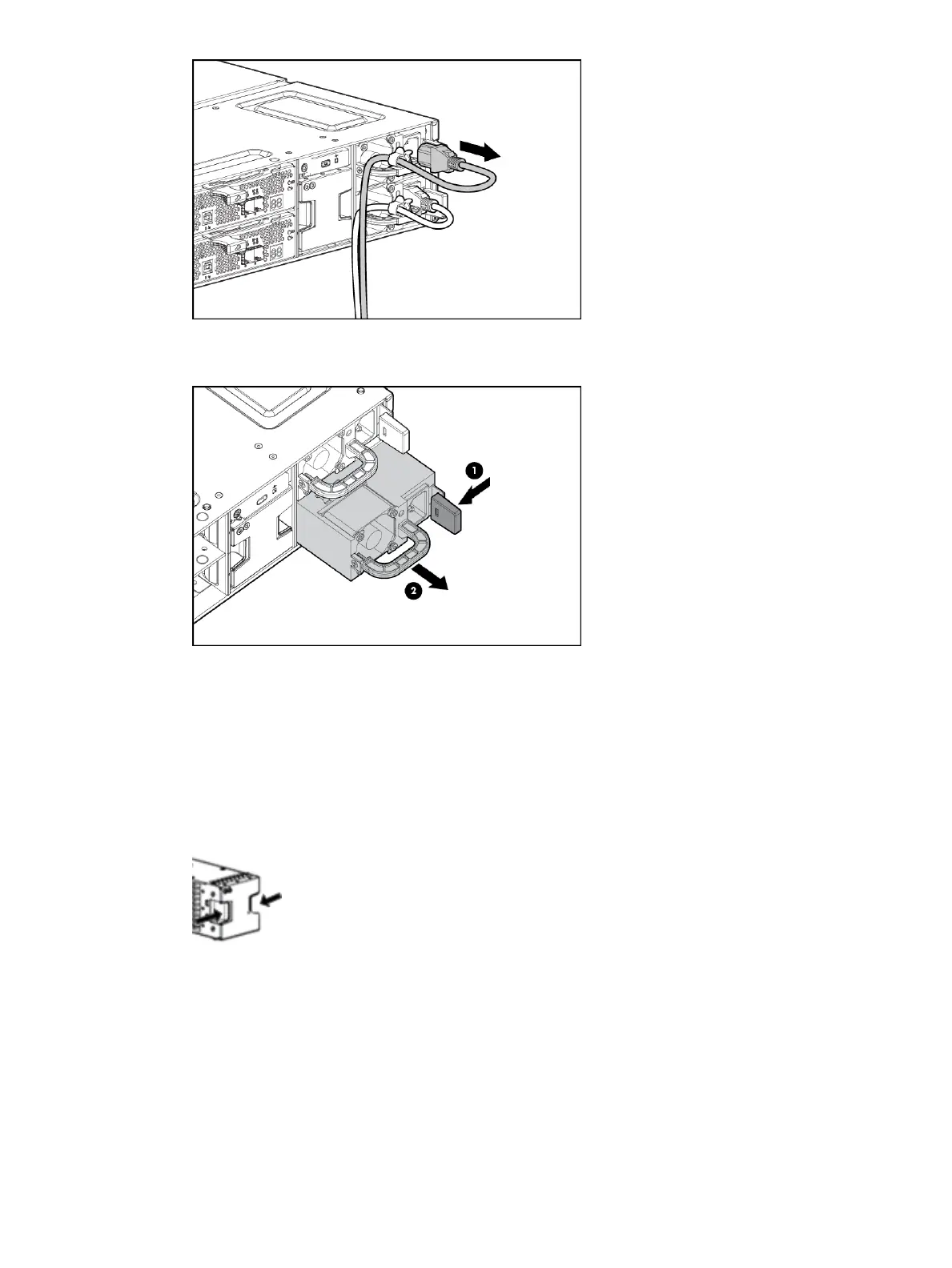

2. Press the latch (1) and slide module out (2).
3. Slide new power supply into the enclosure bay until it clicks into place.
4. Replace the power cable.
5. Confirm that the system is in normal state. See “Verifying the operating status of the disk
enclosures” (page 13).
Removing and replacing the fan module
1. Pinch the release buttons and slide the module out.
2. Slide in new fan module until it clicks into place
Removing and replacing the fan module 19
