7–32 376220-001 Service Reference Guide, dc5100
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

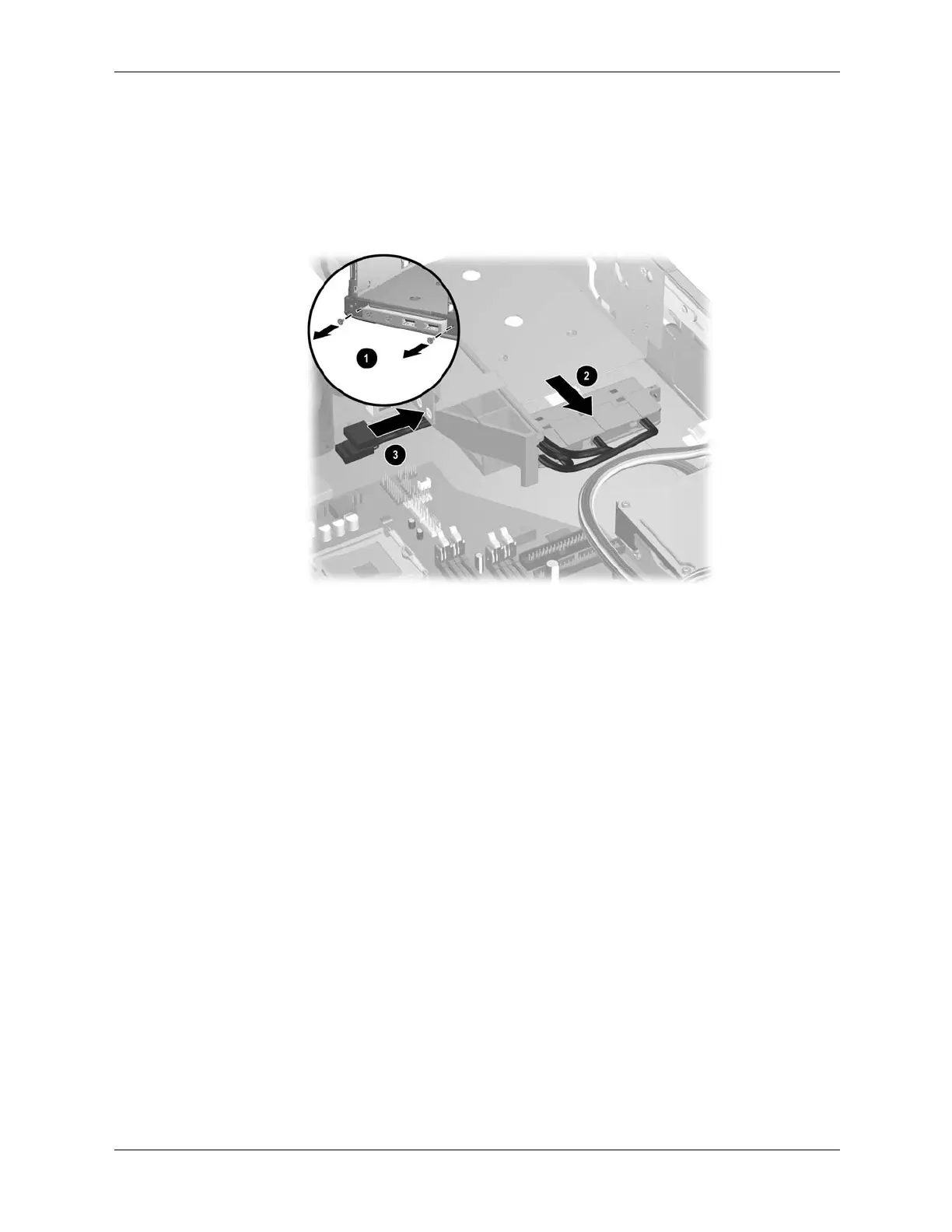

9. Remove the two screws that secure the front I/O device 1 then, push the I/O device towards
the back of the chassis 2.
10. Pull the drive cage forward, grasp the I/O device and carefully pull it from under the drive
cage 3. Guide the cable ends through the slots in the drive cage support device to keep them
from snagging.
