Service Reference Guide, dc5100 376220-001 7–33
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

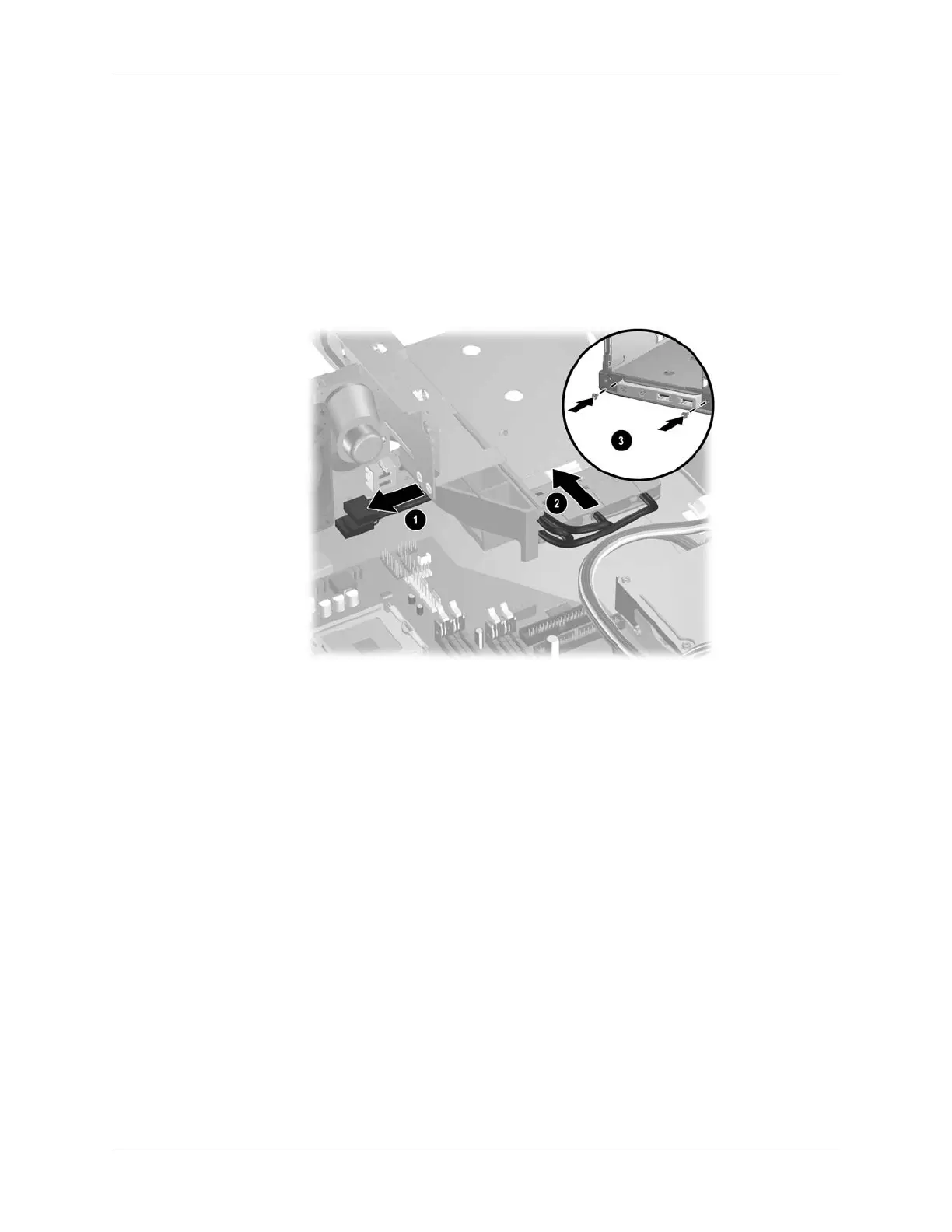

Follow these procedures for reinstalling the front I/O device.
1. Begin with the drive cage in its fully extended position. Guide the I/O device cables under
the drive cage and through the legs of the drive cage support 1. It may be necessary to use a
wooden pencil to help in this task.
2. Push the I/O device beneath the drive cage as far as possible 2 then, push the drive cage into
the closed position to access the front of the chassis. Make sure the USB ports in the I/O
device are oriented properly on the right side.
3. Install the two retaining screws 3 while holding the I/O device in position.
4. Reinstall the balance of the cabling and drives.

HP dc5100 - Microtower PC Specifications

General

Processor	Intel Pentium 4 or Intel Celeron D
Memory	Up to 4 GB DDR2 SDRAM
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Optical Drive	DVD-ROM, CD-RW, or DVD+/-RW
Graphics	Intel Graphics Media Accelerator 900
Audio	Integrated audio
Expansion Slots	1 PCI Express x16, 3 PCI
Ports	1 Serial, 1 Parallel
Weight	Approx. 22 lbs (10 kg)
Processor Speed	Up to 3.8 GHz
Storage	40 GB to 250 GB HDD
