6–18 376220-001 Service Reference Guide, dc5100
Removal and Replacement Procedures— Microtower (MT) Chassis
3. Reconnect the power and data cables to the drive as shown in the following illustrations.
✎
Refer to Section 4.1, “SATA and PATA Device Information”for information on attaching the
cabling to get optimum performance.

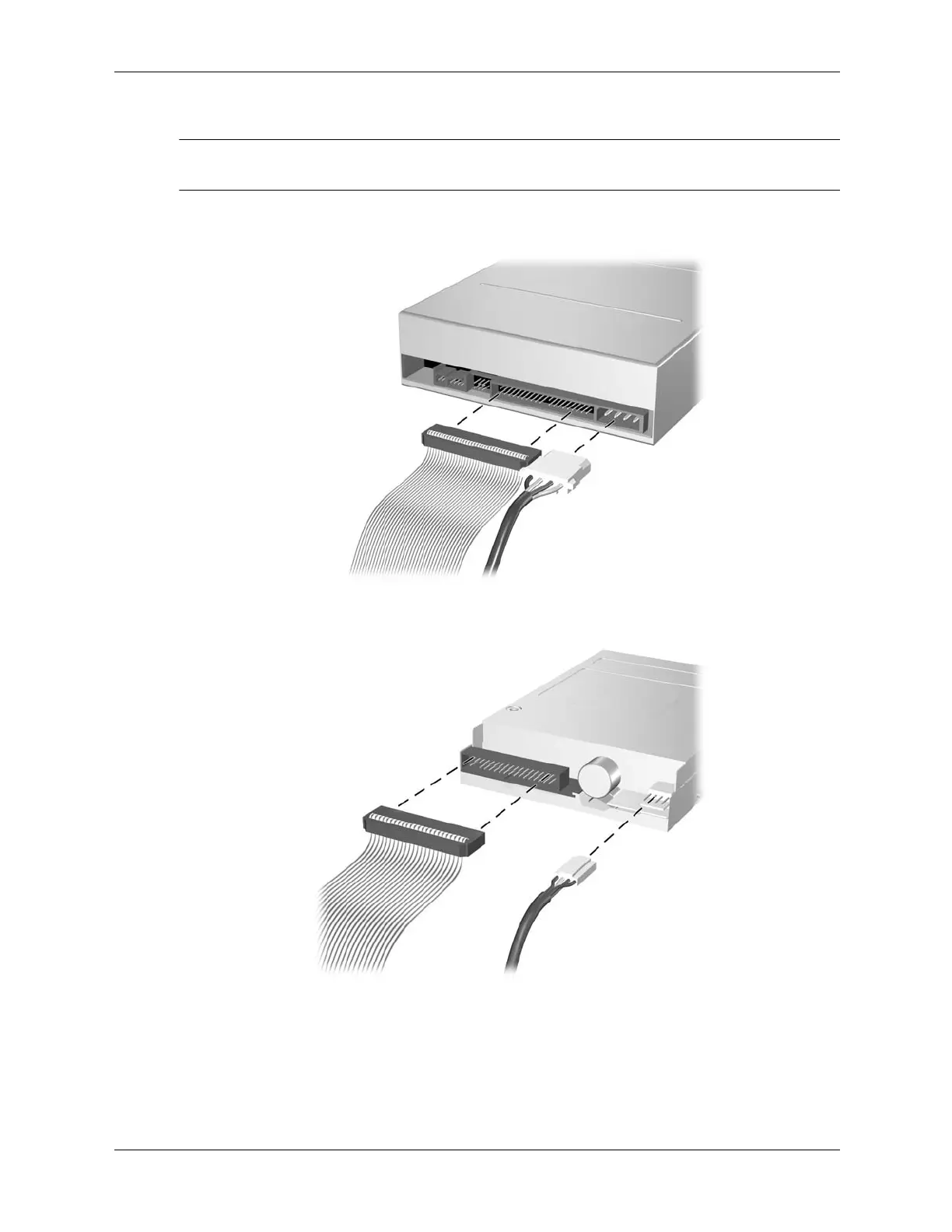

Connecting Optical Drive Cables
Connecting Diskette Drive Cables
