Operations 23
4.

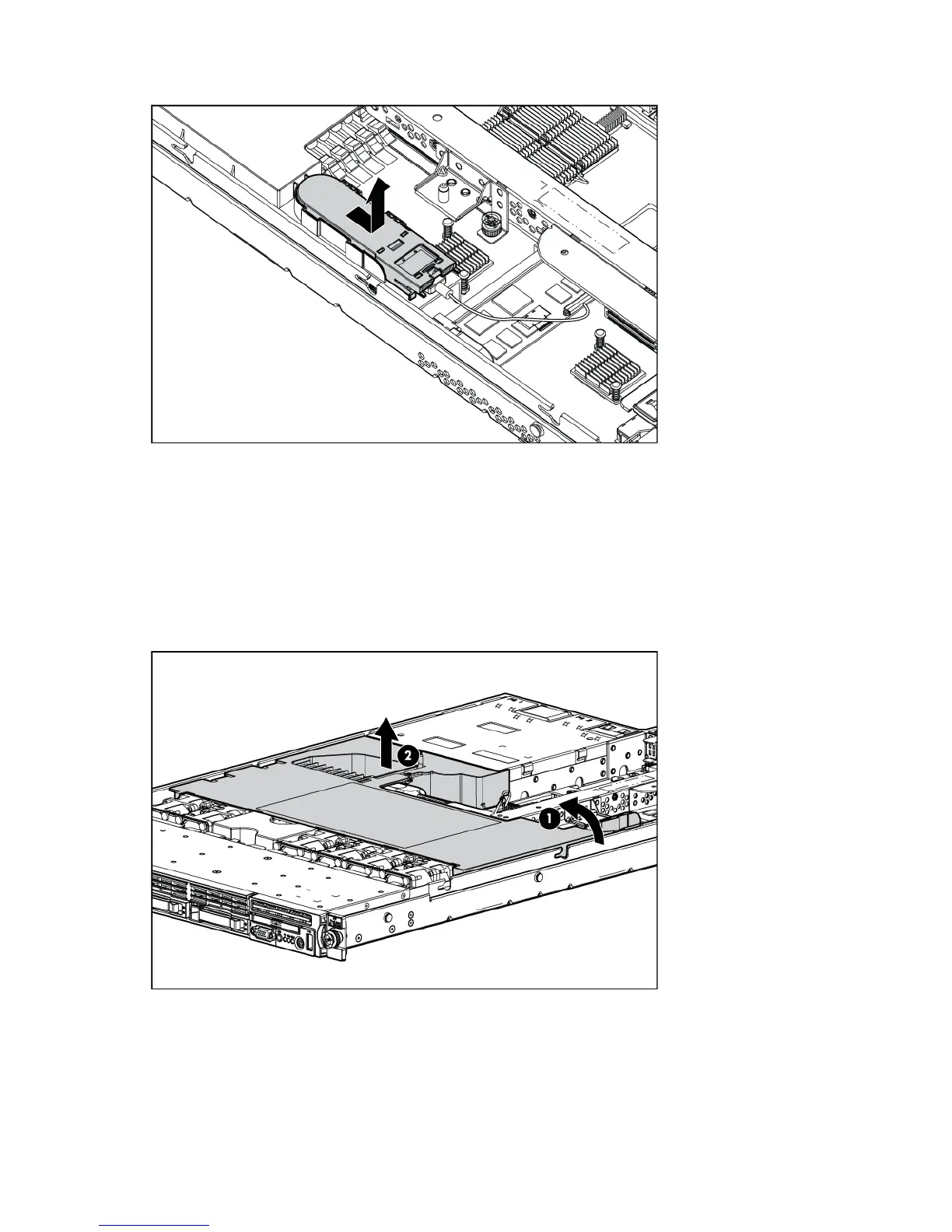

Remove the BBWC battery pack.
Remove the air baffle
1. Power down the server (on page 20).
2. Extend the server from the rack (on page 20).
3. Remove the access panel (on page 22).
4. Remove the BBWC battery pack, if installed ("Remove the BBWC battery pack" on page 22).
5. Remove the air baffle.
Install the air baffle
