HP DL360 User Manual

Hardware options installation 50
5.

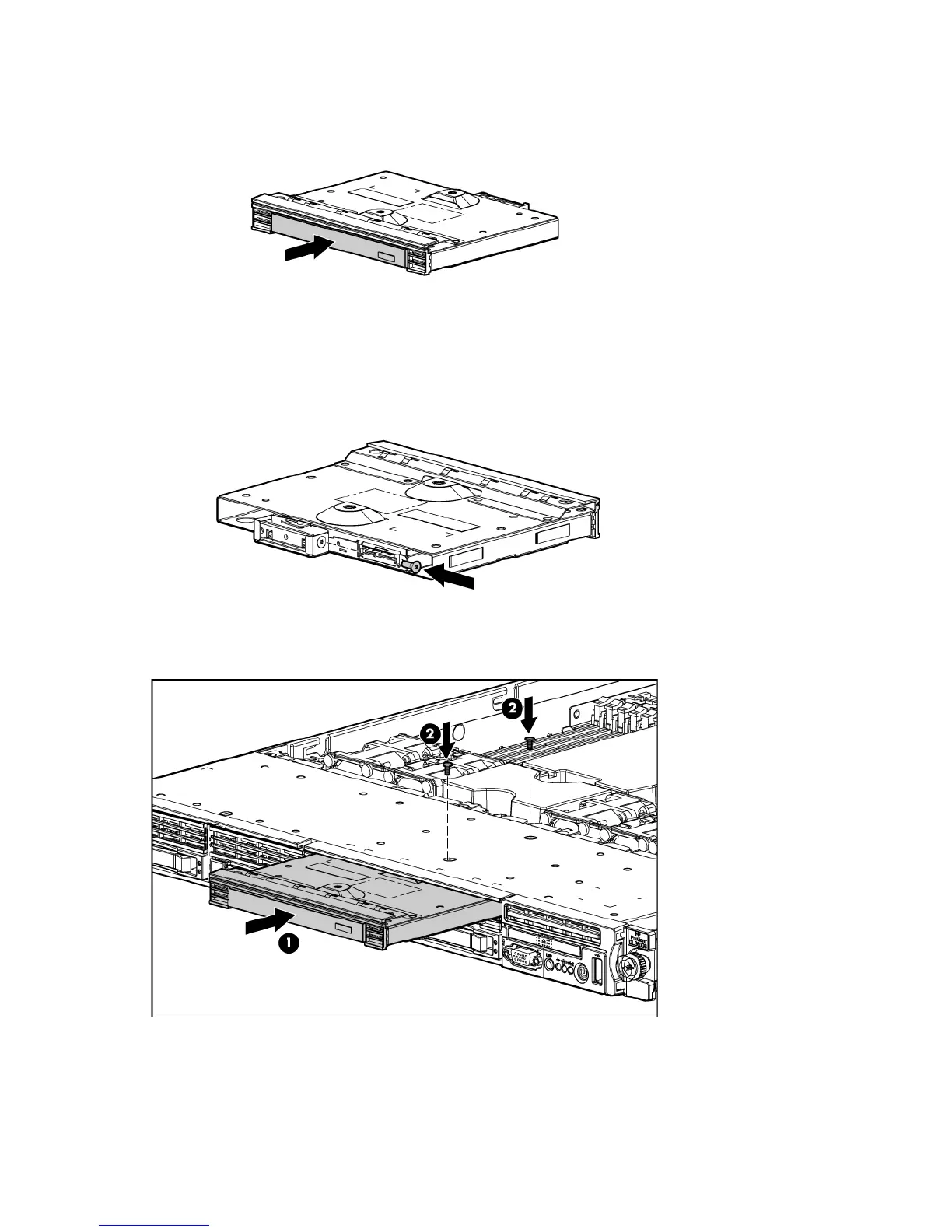

Install the DVD-ROM drive in the DVD tray.
6. Secure the drive to the tray using the screw from this kit and the T-10/T-15 Torx screwdriver
provided with the server.
7. Install the DVD tray using the screws from this kit and the T-10/T-15 Torx screwdriver provided with
the server.
8. Remove the BBWC battery pack, if installed ("Remove the BBWC battery pack" on page 22).
9. Remove the air baffle (on page 23).

HP DL360 Specifications

General

Processor Sockets	2
CPU	Intel Xeon Scalable
Memory	Up to 3TB DDR4
Form Factor	1U Rack
Power Supply	Redundant Power Supplies, various wattage options
Network Controller	Embedded 1Gb or 10Gb Ethernet
RAID Support	Smart Array RAID
Operating System Support	Windows Server, Linux, VMware
Storage	Up to 10 SFF SAS/SATA/NVMe drives or 4 LFF SAS/SATA drives
