HP E24 G4 User Manual

16

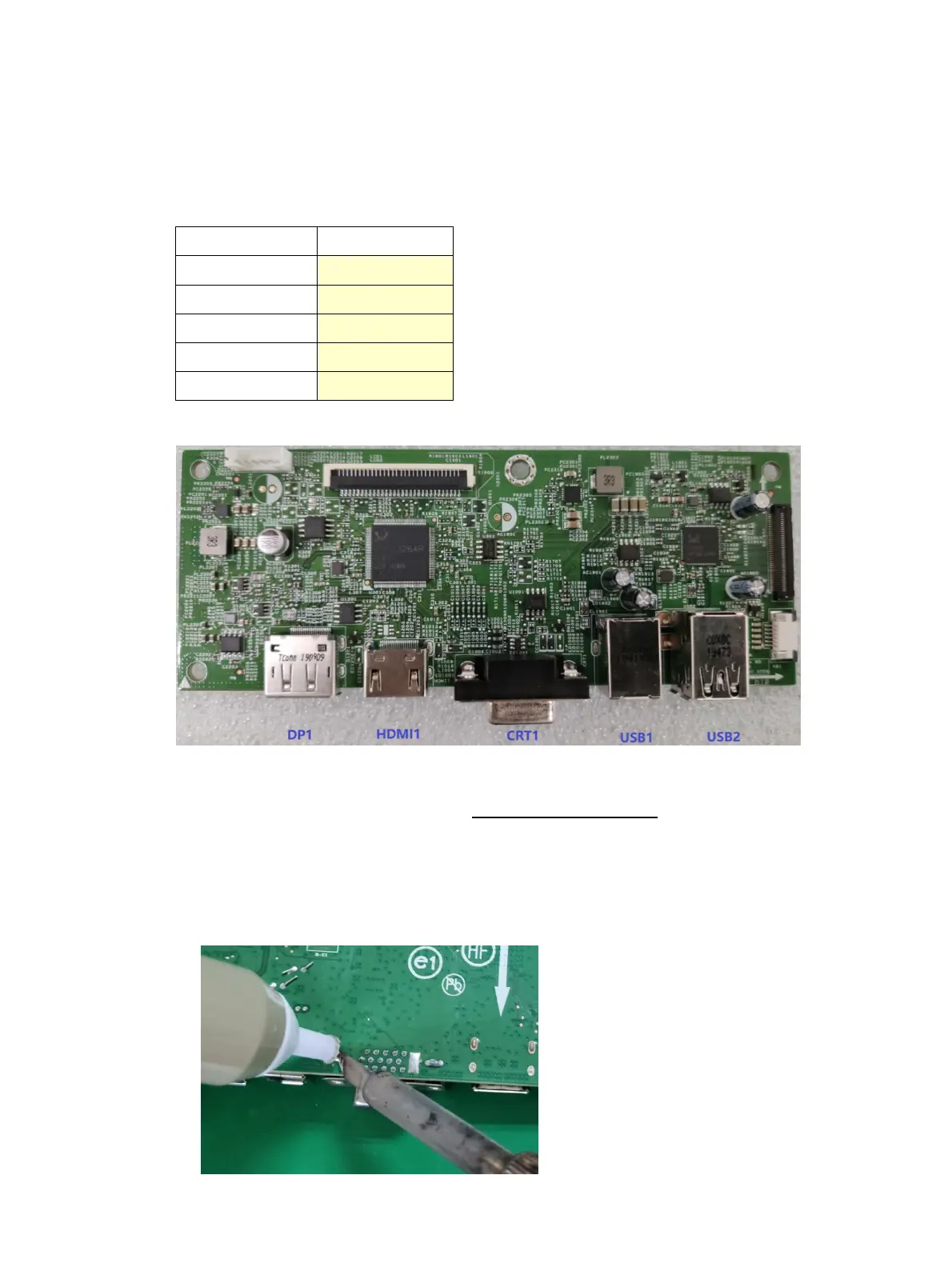

Connector repair
This procedure includes HDMI, Display Port, USB-B, USB-A connectors.
The connectors are on the main board (board part number 7ZB.06701.0006).
The connector identifiers are as follows:
Connector
Location
D-Sub
CRT1
HDMI
HDMI1
DP
DP1
USB-B
USB1
USB-A
USB2
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
D-Sub connector CRT1
Repair the D-Sub connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.

HP E24 G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Pixel density	93 ppi
Display diagonal	23.8 \
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	51 W
Power consumption (off)	0.23 W
Power consumption (standby)	0.5 W
Power consumption (typical)	26 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, HDMI, USB Type-A to USB Type-B, VGA
Package depth	223 mm
Package width	611 mm
Package height	392 mm
Package weight	8400 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Product color	Black, Silver
Market positioning	Business
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	207 mm
Width (with stand)	539.4 mm
Height (with stand)	494.9 mm
Weight (with stand)	5700 g
Depth (without stand)	47 mm
Height (without stand)	323.3 mm
