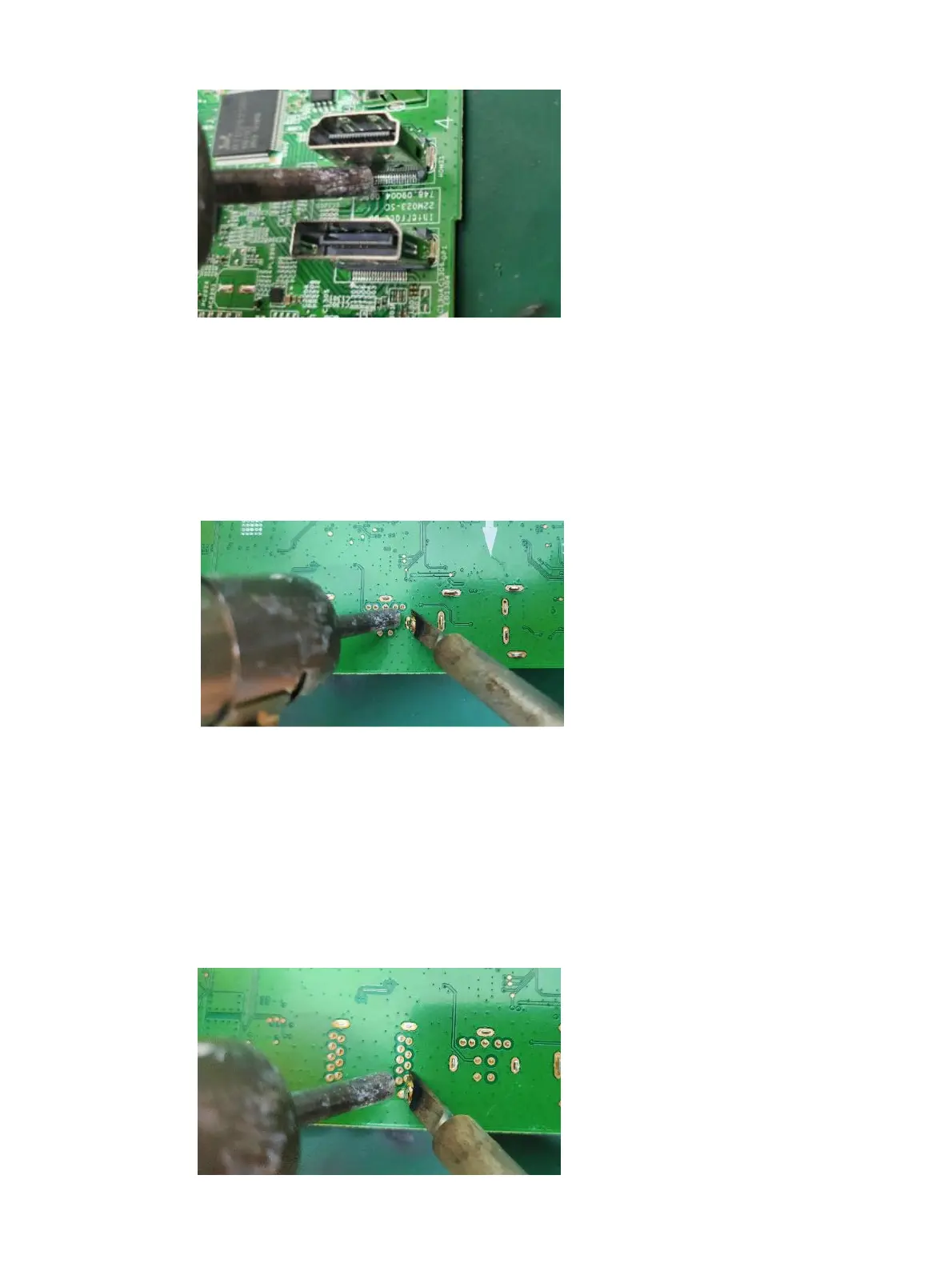

3) Lift the HDMI connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
USB-B connector USB1
Repair the USB-B connector:
1) Use a soldering iron to remove as much solder as possible from the pin.
2) Lift the USB-B connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component
USB-A connector USB2/USB3
Repair the USB-A connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move USB-A connector out of the through
holes
